PRODUCT DESCRIPTION

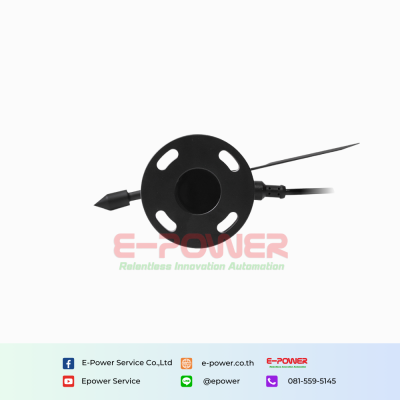

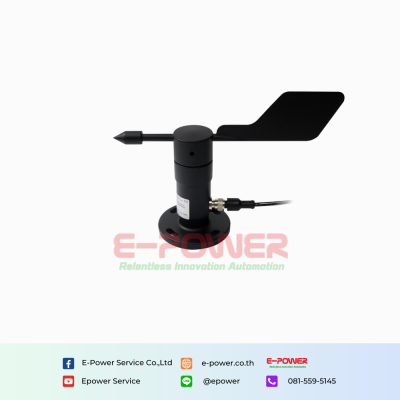

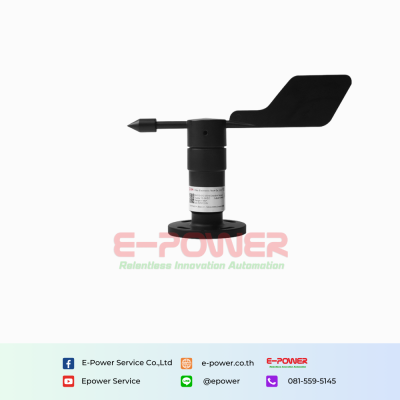

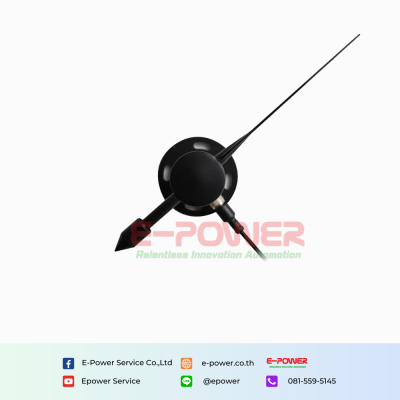

The ââRK110-01G Wind Direction Sensorââ is a high-precision instrument engineered for reliable wind direction measurement in demanding environments. Featuring âârobust all-metal constructionââ and advanced digital circuitry with ââautomatic temperature compensationââ, it delivers accurate 0360° readings even under extreme conditions. Designed for minimal maintenance and maximum durability, its corrosion-resistant materials withstand sand, dust, salt spray, and fungal exposure, making it ideal for long-term wind resource assessment and safety-critical applications.
SPECIFICATIONS
| Item | Technical Specification |
| Supply voltage | 12-24VDC |
| Output | RS485,4-20mA |
| Range | 0-360° |
| Starting threshold | 0.5m/s |
| Limit wind speed | 70m/s |
| Accuracy | ¹3° |
| Resolution | 1° |
| Response time | <1s |
| Power consumption | 20mA@12V |
| Ingress protection | IP65 |
| Operating temperature | -30~+70 |
| Main material | Vane:304stainless steel,Main Body:Aluminum alloy |
| Connector | M12 waterproof connector |
| Finish | Polyester powder electrostatic spraying(black) |
| Weight(unpacked) | 440g(Excluding wires) |
| Storage condition | 10-60@20%-90%RH |
