PRODUCT DESCRIPTION

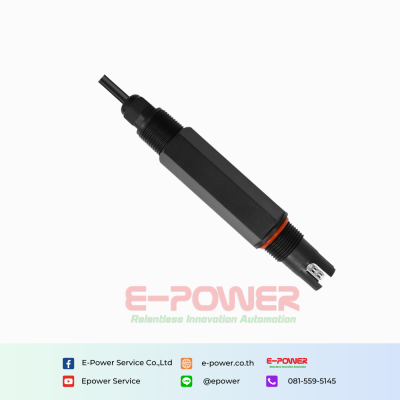

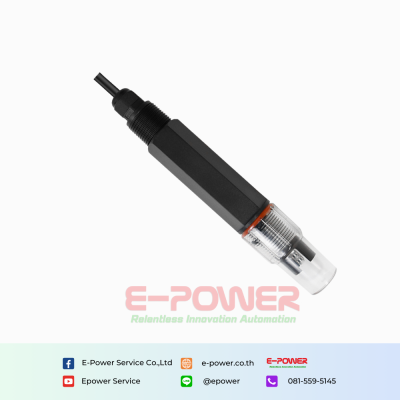

The ââRK500-29 Residual Chlorine Sensorââ stands as a paragon of precision engineering in water quality monitoring, engineered to meet the rigorous demands of industrial, municipal, and environmental applications where accurate residual chlorine detection is critical. Designed with cutting-edge capabilities, this sensor redefines reliability through its advanced Constant Voltage Method principle, delivering precise measurements across a versatile range of ââ02ppm, 05ppm (typical), and 010ppmââ, ensuring compliance with even the most stringent regulatory standards.
Built for durability and adaptability, the RK500-29 operates seamlessly in challenging environments, with a robust ââIP68 protection classââ safeguarding against dust and submersion, and a wide ââ050°C working temperature rangeââ that ensures performance in diverse climates. Its high-resolution ââ0.01ppmââ readout and ââÂą5%FS accuracyââ empower users to trust critical data for process control and compliance monitoring, while low power consumption (ââ<0.5Wââ) and flexible power options (ââ730VDCââ) make it ideal for both portable and permanent installations.
SPECIFICATIONS
| Item | Specification |
| Range | 0~2ppm,0~5ppm(typ.),0~10ppm |
| Principle | Constant voltage method |
| Working temperature | 0-50°C |
| Accuracy | Âą5%FS |
| Resolution | 0.01ppm |
| Power | 7~30VDC |
| Power consumption | <0.5W |
| Output | 4-20mA&RS485(Modbus-RTU) |
| Main material | ABS |
| Protection class | IP68 |
| Pressure of work | < 0.5MPa |
| Velocity of flow | >15cm3/S(Need to maintain a constant flow rate) |
| Cable length | 5 m(default), customizable |
| Installation thread | 3/4" NPT |
