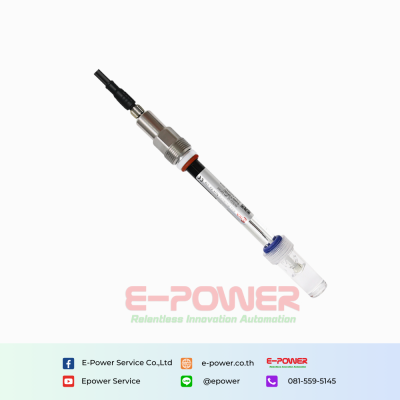

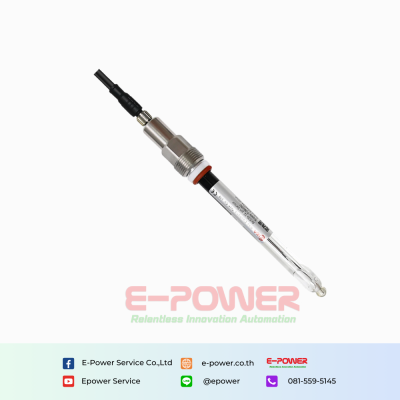

Rika RK500-12 Type-B3 Submersible pH Probe (High temperature environment）
PRODUCT DESCRIPTION
The RK500-12-B3 is a cutting-edge pH monitoring sensor engineered to excel in demanding industrial, environmental, and high-temperature applications, redefining precision and reliability in sensor technology. Designed with a robust construction of Glass+316L materials, this sensor ensures long-term durability even in harsh environments, combining chemical resistance with structural strength.
Operating seamlessly across a wide temperature range of 0-100°C and handling pressures up to 1MPa, it features a versatile PG13.5 thread and M8 waterproof connector for easy integration into existing systems, while its IP68 ingress protection guarantees performance in wet or submerged conditions.
pH SCALES
| pH value | Description |
|---|---|
| <4.5 | Strongly acidity |
| 4.5-5.5 | Acidity |
| 5.5-6.5 | Faintly acidity |
| 6.5-7.5 | Neutral |
| 7.5-8.5 | Faintly alkalinity |
| 8.5-9.5 | Alkalinity |
| >9.5 | Strongly alkalinity |
Technical Parameter Table
| Technical Parameter | |
|---|---|
| Type | B3 |
| Material | Glass+316L |
| Operation temperature | 0-100°C |
| Working pressure | 1Mpa |
| Thread | PG13.5 |
| Electrical connection | M5 waterproof connector |
| Application | High temperature occasions, etc |
| Range | 0-14pH |
| Resolution | 0.01pH |
| Accuracy | 0.01pH |
| Response time | 10 seconds (98% flowing liquid) |
| Temperature compensation | Thermal resistance |
| Power supply | 7-28VDC(< 0.15W) |
| Output | RS485 & 4-20mA |
| Dimensions | Φ12.0 x 170.0 |
| Ingress protection | IP68 |
