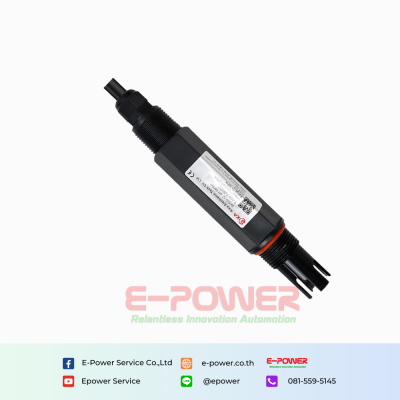

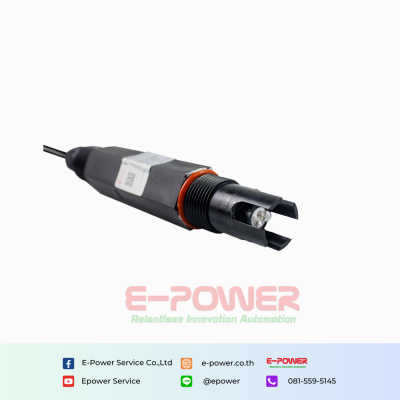

Rika RK500-12 Type-C1 water pH level sensor（Conventional water）
PRODUCT DESCRIPTION
RKk500-12 liquid PH sensor is a good solution to measure the PH value. It does not require a professional calibration instrumentand is simple to operate. lt can be used to continuously measure the PH value of wastewater . The PH water sensor is suitable for agriculture,sewage treatment plants, chemical industry, printing and dyeing, papermaking, pharmaceuticals. , electroplating and environmental protection. This pH sensor for water quality monitoring ensures accurate readings for your water systems. Best high-accuracy pH sensor for wastewater, food industry, pharmaceuticals, laboratories, contact Rika Sensor.
Real-Time Temperature Compensation
- Accurate readings from 0-+80, ensuring reliable performance in dynamic environments;
- Accurate pH measurements for various water types
IP68 Waterproof
Designed for long-lasting reliability in both fresh and saltwater environments
Technical Parameter Table
| Technical Parameter | |
|---|---|
| Type | C1 |
| Material | Glass+PC+ABS |
| Operation temperature | 0-60°C |
| Working pressure | 0.6Mpa |
| Response time | 10 seconds (98% flowing liquid) |
| Electrical connection | Direct cable |
| Application | Conventional water, river water, etc |
| Thread | Upper: NPT3/4 thread;Lower: NPT3/4 thread |
| Range | 0-14pH |
| Resolution | 0.01pH |
| Accuracy | 0.01pH |
| Temperature compensation | Thermal resistance |
| Power supply | 7-28VDC(< 0.15W) |
| Output | RS485 & 4-20mA |
| Dimensions | Φ31.0 x 189.0 |
| Ingress protection | IP68 |
