PRODUCT DESCRIPTION

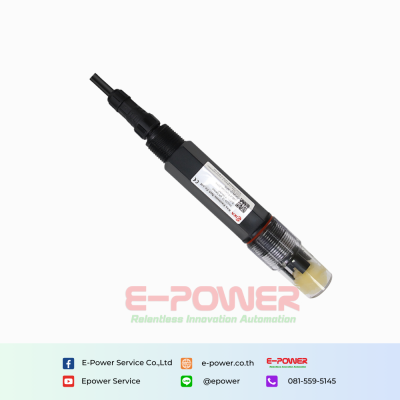

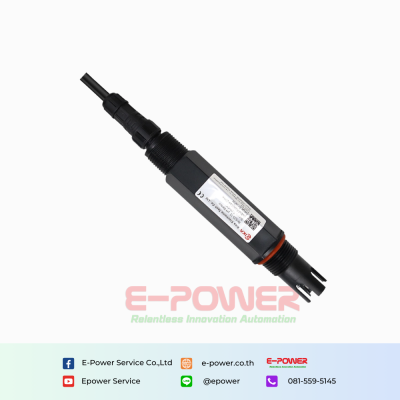

The RK500-12-D1 represents a sophisticated solution in pH monitoring technology, engineered to meet the rigorous demands of industrial, municipal, and environmental water quality management. Designed for reliability and precision in diverse aqueous environmentsfrom conventional water systems to natural water bodies like riversthis sensor redefines durability and performance through its advanced material composition and intelligent design.
Crafted with a robust Glass+PC+ABS housing, the RK500-12-D1 ensures long-term stability in challenging conditions, while its IP68 ingress protection rating guarantees complete immunity to dust and submersion in depths up to its operational limits. Operating seamlessly across a 060°C temperature range and handling up to 0.6MPa working pressure, it excels in both static and dynamic fluid environments, delivering a rapid 10-second response time (achieving 98% measurement stability in flowing liquids).
pH Scale
| pH value | Description |
|---|---|
| ïž4.5 | Strongly acidity |
| 4.5-5.5 | Acidity |
| 5.5-6.5 | Faintly acidity |
| 6.5-7.5 | Neutral |
| 7.5-8.5 | Faintly alkalinity |
| 8.5-9.5 | Alkalinity |
| ïž9.5 | Strongly alkalinity |
Technical Parameter Table
| Technical Parameter | |
|---|---|
| Type | D1 |
| Material | Glass+PC+ABS |
| Operation temperature | 0-60 |
| Working pressure | 0.6Mpa |
| Response time | 10 seconds (98% flowing liquid) |
| Electrical connection | M16 waterproof connector |
| Application | Conventional water, river water, etc |
| Thread | Upper: NPT3/4 thread,Lower: NPT3/4 thread |
| Range | 0-14pH |
| Resolution | 0.01pH |
| Accuracy | 0.01pH |
| Temperature compensation | Thermal resistance |
| Power supply | 7-28VDC(< 0.15W) |
| Output | RS485 & 4-20mA |
| Dimensions | ÎĶ31.0 x 180.0 |
| Ingress protection | IP68 |
