PRODUCT DESCRIPTION

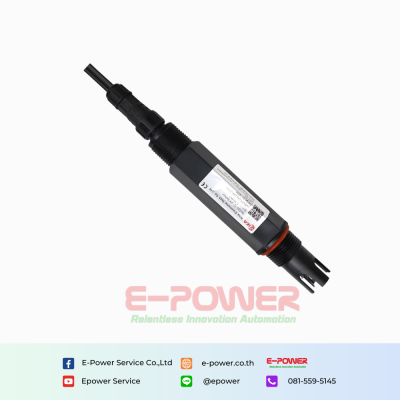

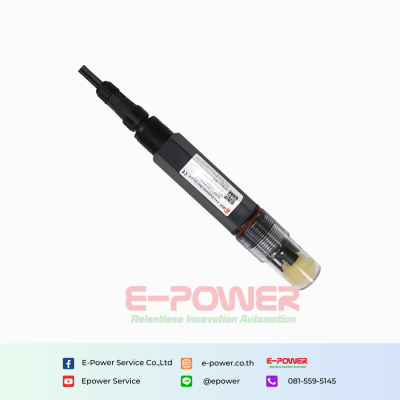

The ââRK500-12-D2ââ stands out as a premier-grade pH sensor designed to meet the rigorous demands of industrial, marine, and environmental monitoring applications. Engineered with a focus on durability, accuracy, and versatility, this sensor combines cutting-edge technology with rugged construction to deliver unmatched performance in even the most challenging conditions.
Crafted from a specialized ââGlass+PC+ABS composite materialââ, the RK500-12-D2 features a housing that resists chemical corrosion, mechanical wear, and UV degradation, ensuring longevity in aggressive media such as seawater, industrial chemicals, or wastewater. Its robust build isnt just about resilienceit also prioritizes practicality, with a modular design that simplifies installation and maintenance. Operating seamlessly across an impressive ââ080°C temperature rangeââ and handling pressures up to ââ1 MPaââ, this sensor adapts to everything from low-temperature process lines to high-pressure pipeline systems, making it a go-to choice for diverse industrial setups.
pH Scale
| pH value | Description |
|---|---|
| ïž4.5 | Strongly acidity |
| 4.5-5.5 | Acidity |
| 5.5-6.5 | Faintly acidity |
| 6.5-7.5 | Neutral |
| 7.5-8.5 | Faintly alkalinity |
| 8.5-9.5 | Alkalinity |
| ïž9.5 | Strongly alkalinity |
Technical Parameter Table
| Technical Parameter | |
|---|---|
| Type | D2 |
| Material | Glass+PC+ABS |
| Operation temperature | 0-80 |
| Working pressure | 1Mpa |
| Response time | 8 seconds (98% flowing liquid) |
| Electrical connection | M16 waterproof connector |
| Application | Industrial water, seawater, environmental protection, etc |
| Thread | Upper: NPT3/4 thread,Lower: NPT3/4 thread |
| Range | 0-14pH |
| Resolution | 0.01pH |
| Accuracy | 0.01pH |
| Temperature compensation | Thermal resistance |
| Power supply | 7-28VDC(< 0.15W) |
| Output | RS485 & 4-20mA |
| Dimensions | ÎĶ31.0 x 180.0 |
| Ingress protection | IP68 |
