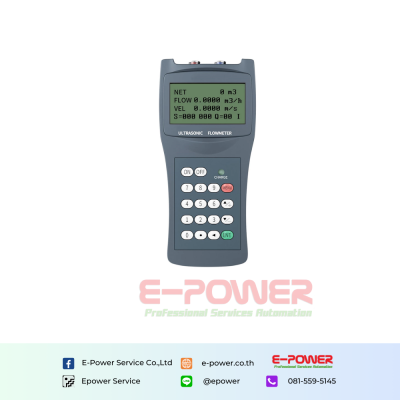

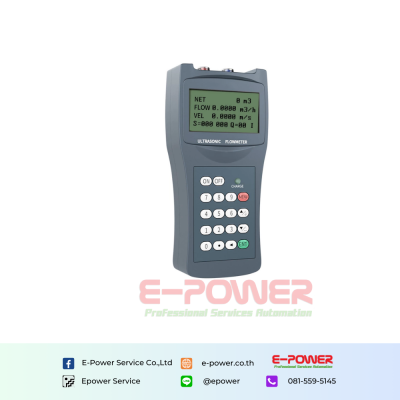

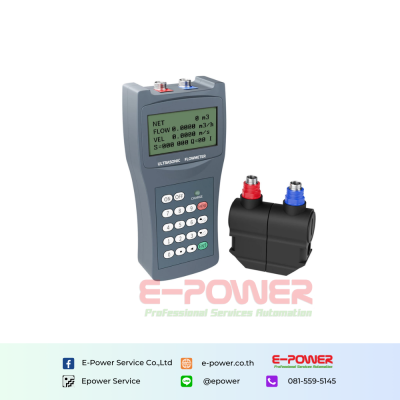

SUP-2100H Handheld Ultrasonic Flowmeter
SUP-2100H ultrasonic flow meter uses advance circuit design, coupled with excellent hardware designed in English and can be switched surfaces. It is easy to operate and with stable performance.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Pipe diameter: DN32-DN6000
- Accuracy: 1.0%
- Power supply: 3 AAA built-in Ni-H batteries
- Case material: ABS
Specification
| Product | Handheld ultrasonic flowmeter |
| Model | SUP-2100H |
| Pipe size | DN32-DN6000 |
| Accuracy | Âą1% |
| Totalizer | 7-digit totals for net |
| Liquid types | positive and negative flow respectively |
| Virtually all liquids | |
| Working temperature | Convertor: -20~60°C; Flow Transducer:-30~160°C |
| Working humidity | Convertor: 85%RH; Flow transducer: IP67 |
| Display | 4Ã8 Chinese characters or 4Ã16 English letters |
| Power supply | 3 AAA built-in Ni-H batteries |
| Date logger | Built-in data logger can store over 2000 lines of data |
| Case material | ABS |
| Dimension | 200*93*32mm(Convertor) |
| Handset weight | 500g with batteries |
