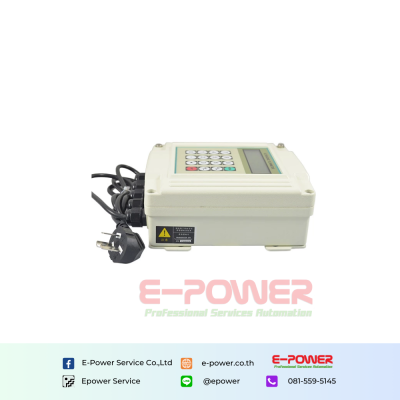

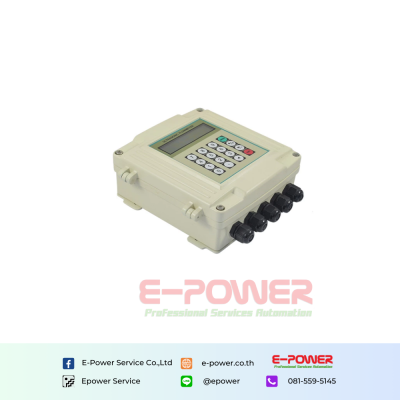

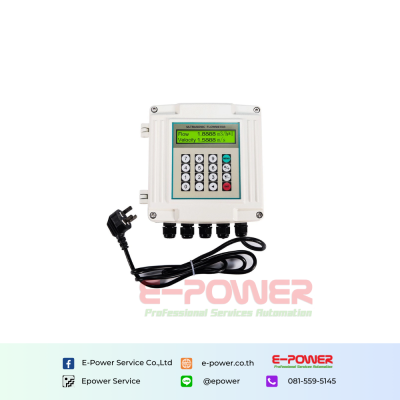

SUP-1158S Wall Mounted Ultrasonic Flowmeter
SUP-1158S Wall mounted clamp on ultrasonic flow meter uses advance circuit design, coupled with excellent hardware designed in English and can be switched surfaces. It is easy to operate and with stable performance.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Pipe diameter: DN32-DN6000
- Accuracy: Âą1%
- Power supply: 10ï―36VDC/1A
- Output: 4ï―20mA, relay, RS485
Specification
| Product | Wall-mounted (clamp on) ultrasonic flowmeter |
| Model | SUP-1158S |
| Pipe Size | DN32-DN6000 |
| Accuracy | Âą1% |
| Signal output | 1 way 4-20mA output |
| 1 way OCT pulse output | |
| 1 way replays output | |
| Interface | RS485, support MODBUS |
| Liquid Types | Virtually all liquids |
| Working Temperature | Convertor: -20~60°C; Flow Transducer: -30~160°C |
| Working humidity | Convertor: 85%RH |
| Power Supply | DC8~36V or AC85~264V(optional) |
| Date Logger | Built-in data logger can store over 2000 lines of data |
| Case Material | ABS |
| Dimension | 170*180*56mm(Convertor) |
