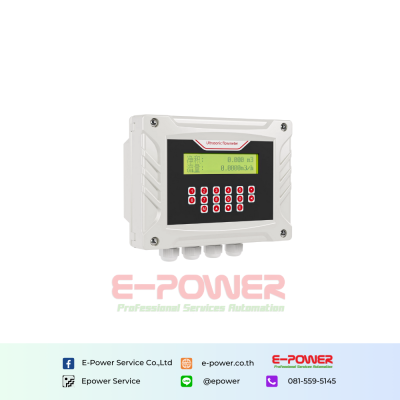

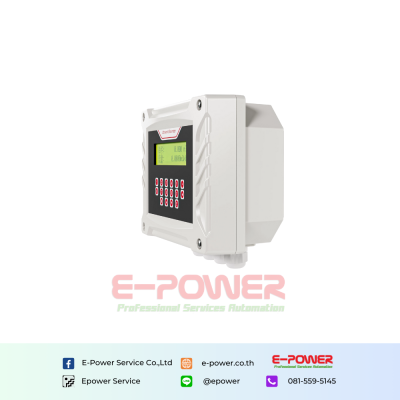

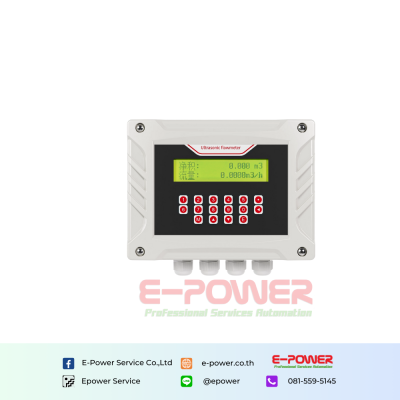

SUP-FSC400 Wall-Mounted Ultrasonic Flow Meter
The SUP-FSC400 ultrasonic flow meter offers versatile, non-intrusive installation for clean liquids in industrial settings. With clamp-on and insertion options, it ensures accurate, reliable measurements unaffected by pipe materials, while supporting heat measurement and integration.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Characteristics
- Broad Industrial Applications Suitable for Most Homogeneous Liquids

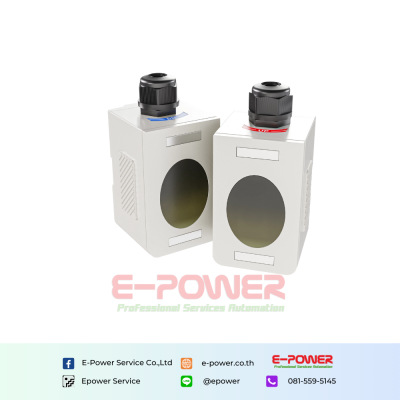

- Clamp-On and Insertion Sensor Options Enable Easy, Non-Intrusive Installation Without Flow Interruption
- Unaffected by Pipe Wall or Lining Materials Ensures High Measurement Accuracy
- Wide Operating Temperature Range from -30°C to 90°C Depending on Model Selection
- High Accuracy Rating of 1.0 Grade for Reliable Performance
- Versatile Output and Power Supply Options Including Pulse, 4-20mA, RS485, and SPST with Dual 24VDC/220VAC Power
Key Features
- Broad industrial applications, suitable for clean liquids without high concentrations of particles or bubbles.
- Clamp-on and insertion options, ensuring easy, non-intrusive installation without flow interruption.
- Measurement accuracy unaffected by pipe wall or lining materials.
- Optional heat measurement, integrating temperature sensors for energy calculations.
- Dual power supply (24VDC/220VAC), Pulse + 4-20mA + RS485 output for seamless integration with existing systems.
Specifications
| Specification | Detail |
|---|---|
| Model Type | Medium-sized clamp-on (DN50DN700) | Standard insertion (DN80DN6000) | Extended insertion (DN80DN6000) |
| Temperature Range | -30°C to 90°C |
| Accuracy | 1.0 grade |
| Output & Power Supply | Pulse + 4-20mA + RS485 + SPST, 24VDC/220VAC dual power supply |
| Electrical Interface & Housing Material | M20*1.5 cable gland, plastic ABS, IP65/IP68 |
| Cable Length Options | Standard: 5m, 10m, 20m | Custom: Up to 100m |
