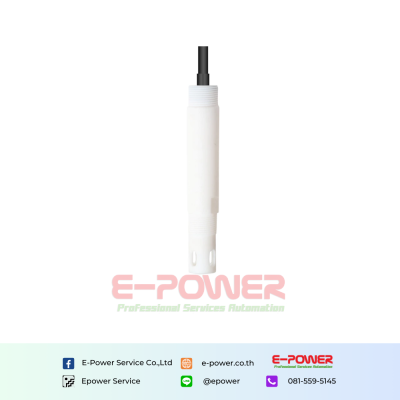

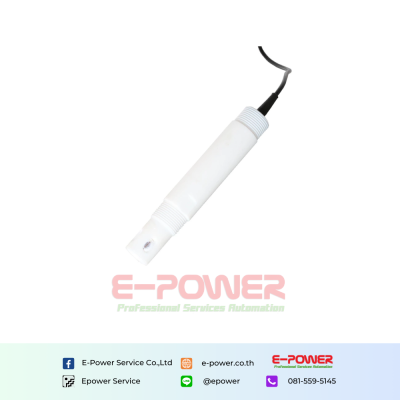

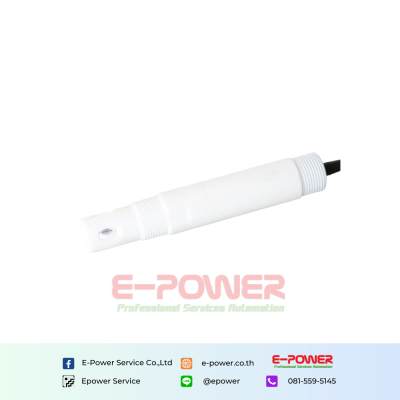

SUP-PH5013A PTFE pH sensor for corrosive medium
SUP-pH-5013A pH sensor used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Zero potential point: 7 Âą 0.5 pH
- Conversion coefficient: > 95%
- Installation size: 3/4NPT
- Pressure: 1 ~ 4 Bar at 25
- Temperature: 0 ~ 60 for general cables
Specification
| Product | PTFE pH sensor |
| Model | SUP-PH6013A |
| Measurement range | 0 ~ 14 pH |
| Zero potential point | 7 Âą 0.5 pH |
| Slope | > 95% |
| Internal impedance | 150-250 MÎĐ(25°C) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| Temp compensation | NTC 10 KÎĐ/Pt100/Pt1000 |
| Heat resistance | 0 ~ 80°C for general cables |
| Pressure resistance | 3 bar at 25°C |
| Connection | Low-noise cable |
