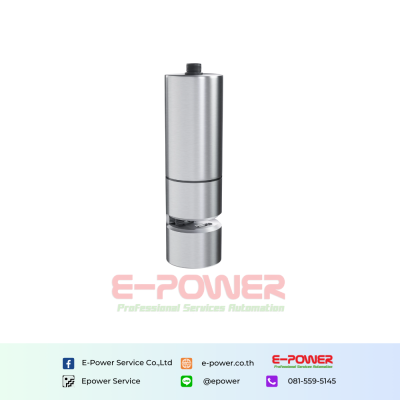

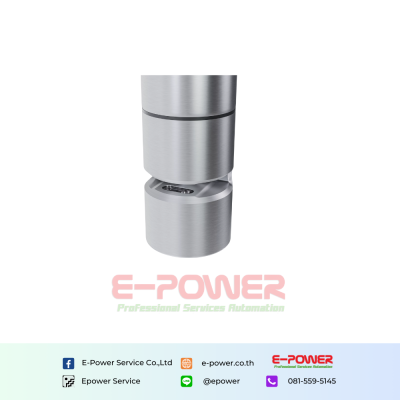

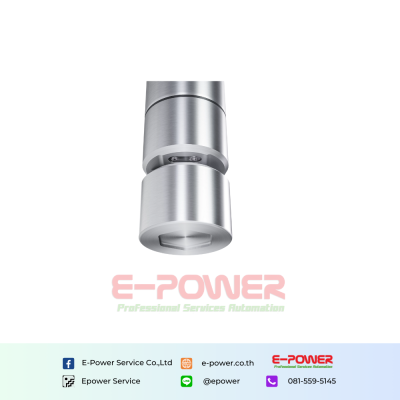

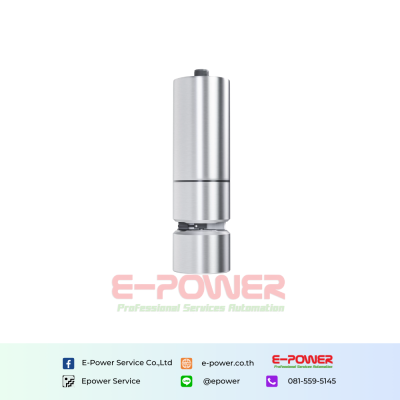

SUP-ADS2000 COD sensor
SUP-ADS2000 COD sensor is based on the UV absorption principle, does not need reagents, will not cause pollution, more environmental protection; Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability.
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Digital sensors, digital RS-485 output, Modbus protocol;
- Proven UVC LED technology, long lifetime, stable and instant measurement; Measurement of parameters such as COD, TOC, turbidity and temperature;
- With self-cleaning brushes to prevent biological adhesion and longer maintenance intervals.
Specification
| Product | COD sensor |
| Model | SUP-ADS2000 |
| COD Range | 0.5 to 500mg/L equiv.KHP |
| TOC Range | 0.3 to 200mg/L equiv.KHP |
| COD Accuracy | Âą5% equiv.KHP |
| TOC Accuracy | Âą5% equiv.KHP |
| Pressure | 3 bar |
| Material | Stainless steel |
| Temperature range | 0-50°C |
| Temperature accuracy | ¹3°C |
| Ingress protection | IP68 |
