LoRaWAN Formaldehyde (CH2O) Sensor

The LoRaWAN Formaldehyde (CH2O) sensor is a wireless gas monitoring device developed based on LoRa wireless communication technology.

รายละเอียดสินค้า

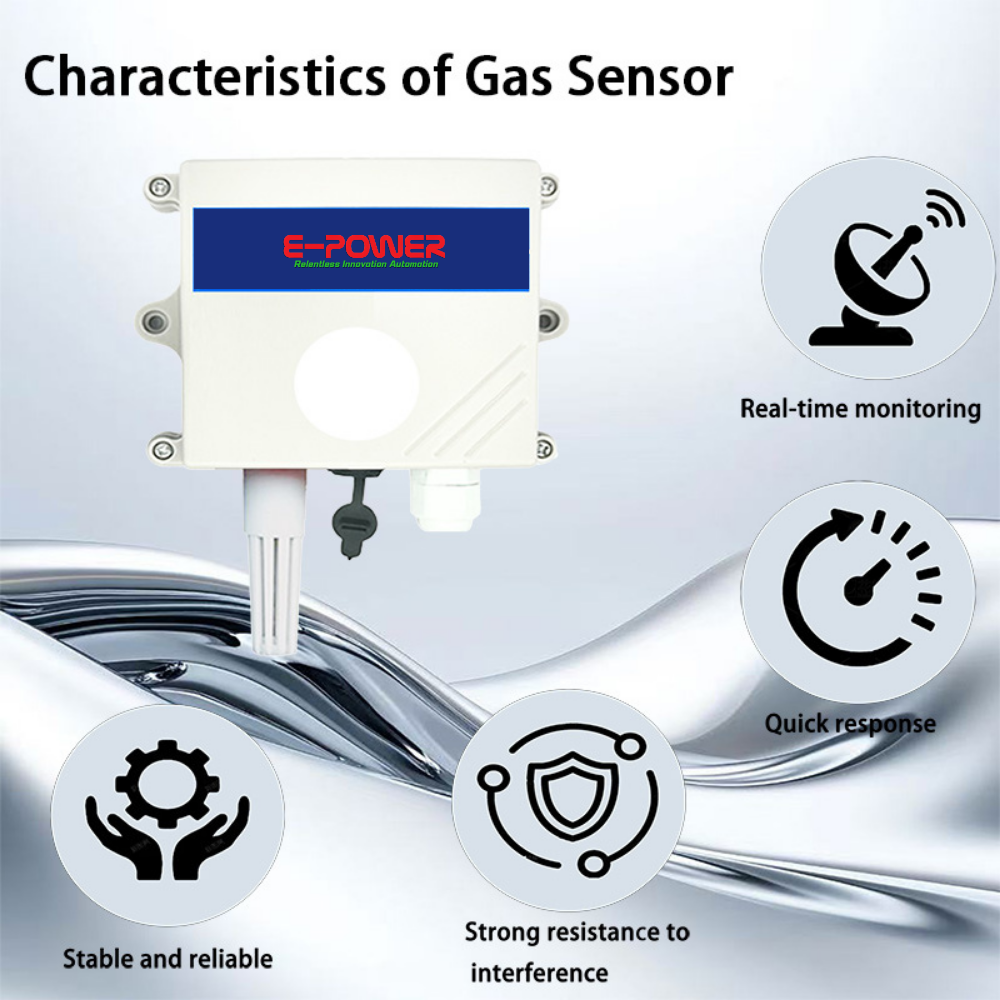

PRODUCT FEATURES

  • It can monitor the concentration of formaldehyde, temperature, and humidity in the environment in real time, and transmit the data wirelessly.
  • It is equipped with a high-precision formaldehyde detection sensor and a temperature and humidity sensor, paired with a LoRa wireless communication module.
  • The detection accuracy is high, the performance is stable for a long time, the power consumption is low, and it is suitable for continuous work for a long time.
  • It supports the standard LoRaWAN protocol, has a long communication distance, and is suitable for data transmission in a wide range or complex environment.
  • Its compact size and low power consumption make it suitable for deployment in various scenarios, and it can be powered by batteries for a long time.
  • It is widely used in industrial fields, such as furniture factories, chemical factories, chemical warehouses, laboratories, paint and coating factories, and other places that need to monitor formaldehyde.

PRODUCT PARAMETERS

Power Supply5~28VDC
Weight120g
Operating Temperature-20~60
Measuring PrincipleElectrochemistry
Lifespan<2 years
Measuring RangeCHO:(0-20) ppm
Temp:-40~+80
Humi:0~99.9 %RH
FrequencyCN470/IN865/EU868/RU864/US915/AU915/
KR920/AS923-1&2&3&4
ModeOTAA Class A/C(Default: Class C)
Reporting cycleExternal power supply:5min(Default reporting cycle)
Report after preheating for 3 minutes when powered on
Communication ProtocolLoRaWAN,LoRa TDMA Networking
Equipment information
(Reference)
AppEUI: 0000000000000001
DevEUI: aaaa202404150001
AppKey: 00001111222233334444555566667777
MAC Version: LoRaWAN 1.0.3


PRODUCT APPLICATIONS

  1. Sensitivity can detect low concentrations: This sensor has "good eyesight" and is particularly sensitive to formaldehyde. Even if the formaldehyde concentration in the air is very low, it can accurately measure it and will not miss the inspection.
  2. Real-time updates without delay: It can "watch" the change of formaldehyde concentration and tell you the latest data at any time, just like a live broadcast, so that you can immediately know whether the formaldehyde in the environment is over the limit or not.
  3. Accurate measurement and small error: Some models use imported core detection parts, such as "high-precision ruler," and the measured formaldehyde value is very accurate, with almost no error, so don't worry about data deception.
  4. It can remember data and "deliver messages": It comes with a "small ledger" that can record long-term changes in formaldehyde concentration; It can also "tell" the computer or mobile phone through wireless signals, which is convenient for you to analyze the change law of formaldehyde.
  5. Energy-saving, durable, and cost-effective: In terms of design, it is very "electricity-saving". It can be used for a long time after charging once or replacing the battery. It does not need to be charged frequently, and it is not easy to break down. It can help you save money in the long run.
  6. Strong anti-interference ability: If there are other interfering gases in the environment (such as smoke and odors), it can "stay stable" and not be affected, always focusing on measuring formaldehyde to ensure reliable data.
