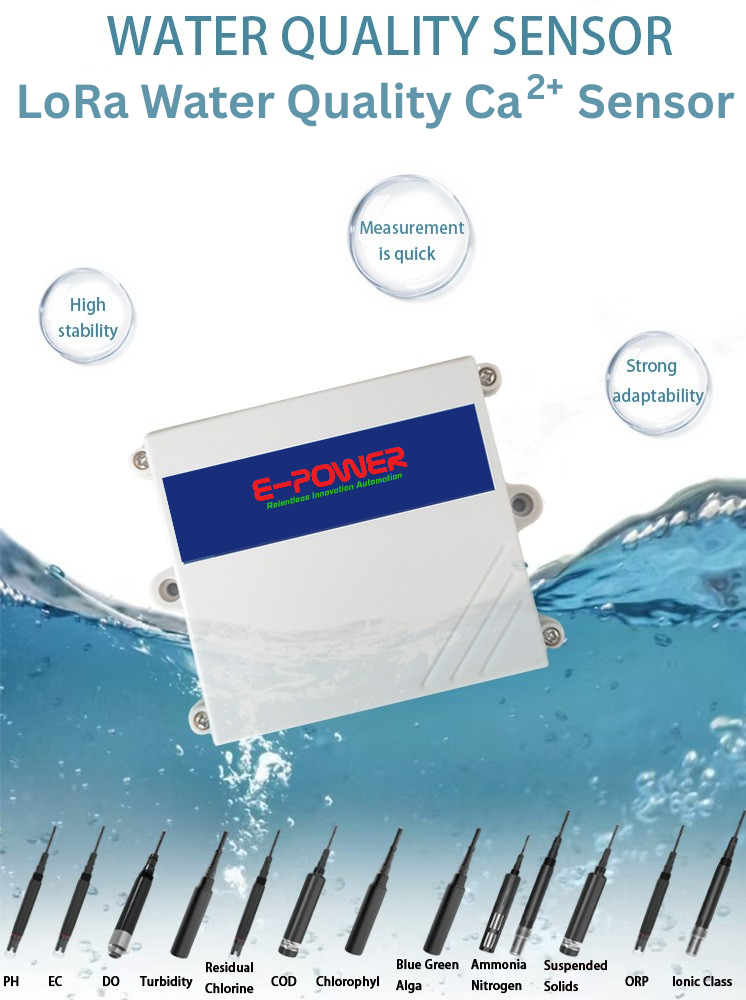

LoRa Water Quality Ca2+ Ion Sensor
PRODUCT FEATURES
- LoRaWAN water quality ion sensor is very powerful, it collects water quality data, monitoring water quality status and data transmission these three functions are collected in one device, it is particularly convenient to use.
- Belongs to the LPWAN wireless low-power Internet of Things sensor, less electricity, through the wireless way to work, do not worry about the cost of electricity and wiring trouble.
- The use of filtering algorithm, the interference of outside light has a strong resistance, even if the surrounding light changes, it does not affect its normal detection of water quality.
- Can automatically adjust the measured data according to the temperature change, no matter how the temperature of the water changes, can ensure that the measured data is accurate.
- Because of these advantages, it is particularly suitable for the water, has been online long-term monitoring of water quality, can work stably and reliably.
- Support standard LoRaWAN protocol, can achieve long distance wireless data transmission, the detected water quality data to the distant receiving equipment.
PRODUCT PARAMETERS
| Power Supply | 12/24VDC |
| Weight | 150g |
| Operating Temperature | 0~40°C |
| Measuring Range | 0-100mg/L, 0-1000mg/L(default) Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution ! |
| Measurement Error | ¹5%FS (25°C) |
| Resolution Ratio | 0-100mg/L: 0.01mg/L 0-1000 mg/L :0.1mg/L |
| Temperature measurement range | 0~50°C ,Resolution Ratio:0.1°C (When manually compensating for temperature, it is set to 25°C by default.) |
| Probe usage cycle | 3-6 months |
| Pressurization | 0.6Mpa |
| Transmitter Line length | Default 5m (other lengths can be customized) |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 5min(Default ) |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
| Equipment information (Reference) | AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Product Applications
1. High sensitivity and accuracy: the water quality calcium ion sensor adopts advanced electrochemical principles, can accurately measure the concentration of calcium ions in water samples.
2. Real-time monitoring: the sensor can realize real-time monitoring and data analysis, and timely reflect the dynamic situation of water quality.
3. High stability and reliability: the sensor has high stability and reliability, can be continuously monitored for a long time, reduce the frequency of calibration and maintenance.
4. Automatic calibration: the sensor has an automatic calibration function, reducing the frequency and complexity of manual calibration.
5. low power consumption and anti-interference design: the sensor has low power consumption, and the internal circuit has anti-interference design to ensure the accuracy of measurement.
6. easy maintenance: the sensor structure is simple, easy to disassemble and clean, convenient for users to maintain and maintain.
