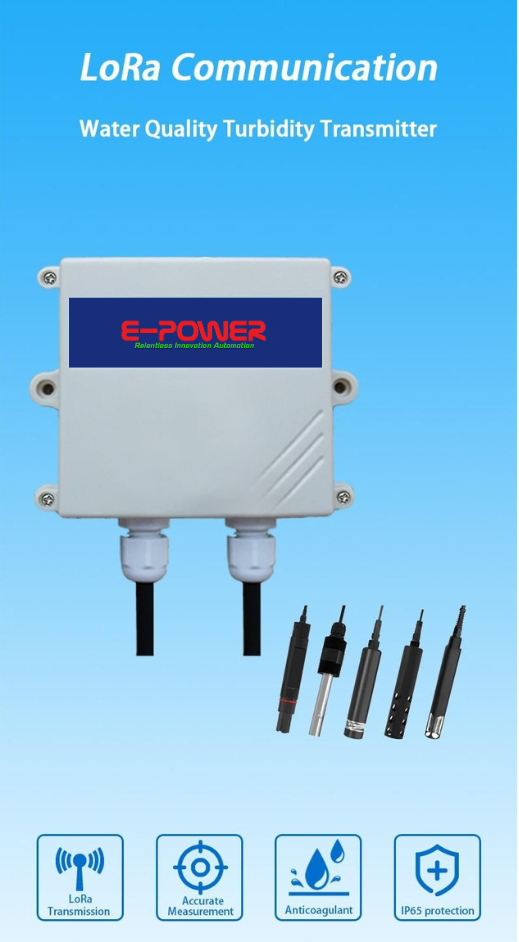

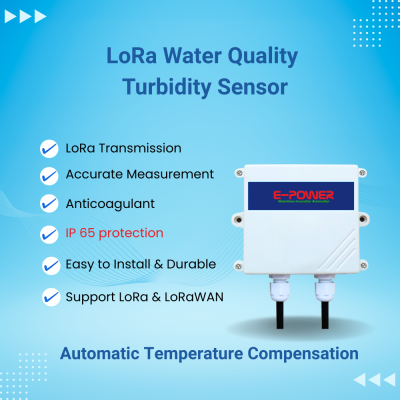

LoRa Water Quality Turbidity Sensor

คำอธิบายสินค้าแบบย่อ

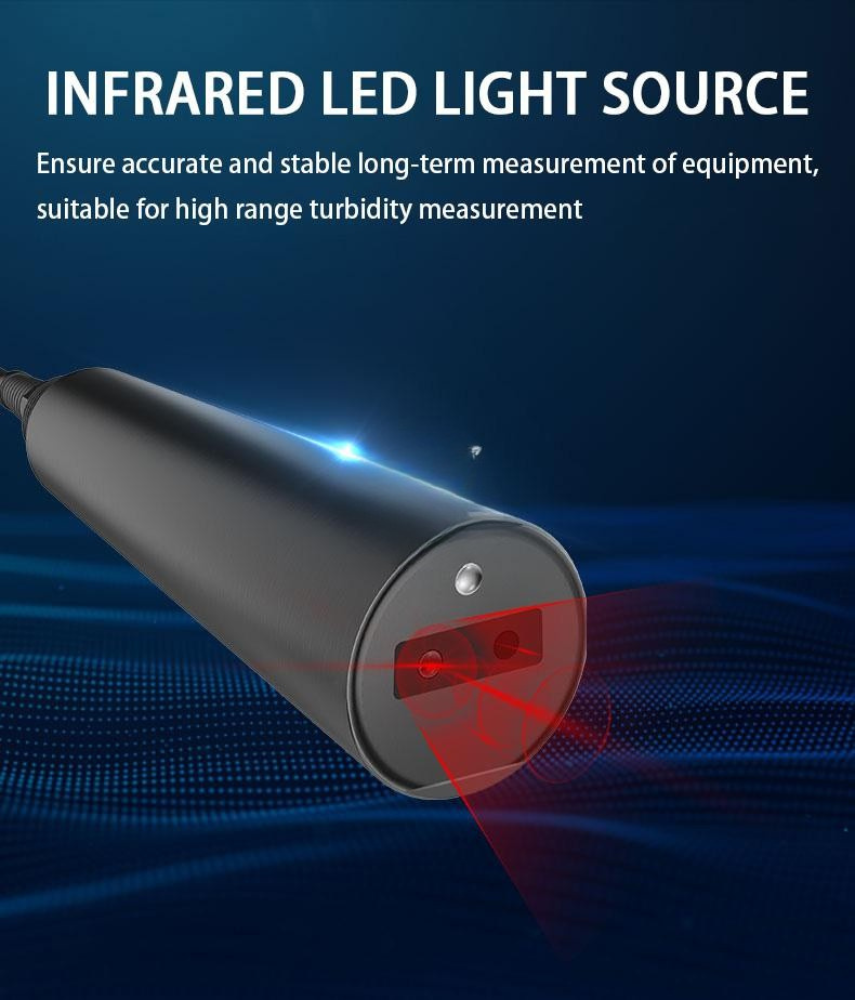

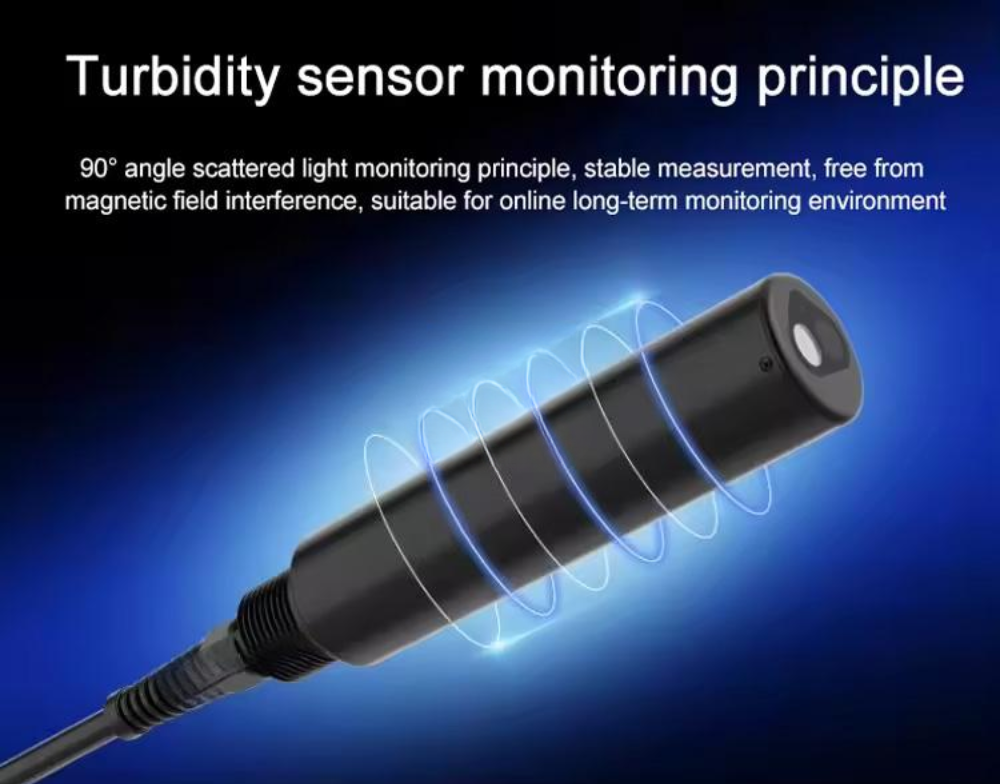

The LoRa water quality turbidity sensor is a basic digital turbidity transmitter for conventional water quality monitoring; Adopting the mature 90 ° scattered light principle from abroad, and adopting the design method of infrared LED light source and fiber optic transmission optical path; Built in filtering algorithm with strong resistance to external light interference. Built in temperature transmitter with automatic temperature compensation function, suitable for long-term online monitoring of environmental use. Supports LoRa TDMA networking and standard LoRaWAN protocol.
แบรนด์: EPS
หมวดหมู่: EPS Sensor, LoRaWAN Sensor
รายละเอียดสินค้า

Attribute

Product Specifications
Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality turbidity sensor
Descriptionwater quality sensor

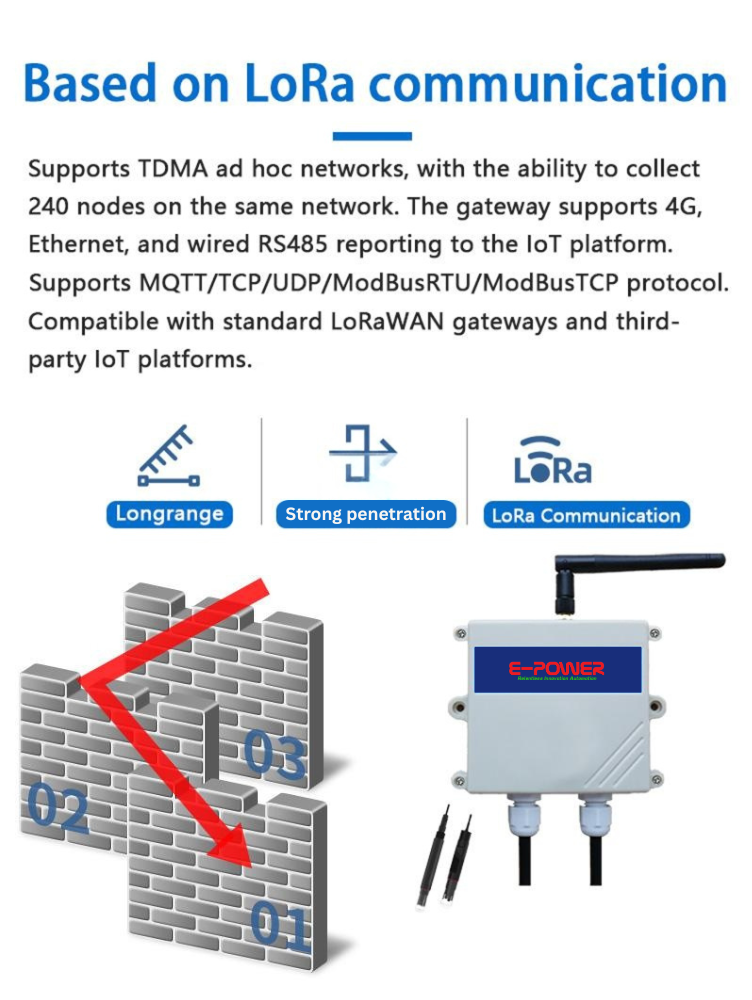

Communication ProtocolLoRaWAN,LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A


Sensor Parameters

Product Specifications
Measuring range0~50NTU/0~200NTU/0~1000NTU/0~4000NTU
Resolution0.01NTU/0.1NTU/0.1NTU/1NTU
Accuracy±5%FS(25), ±0.5
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm

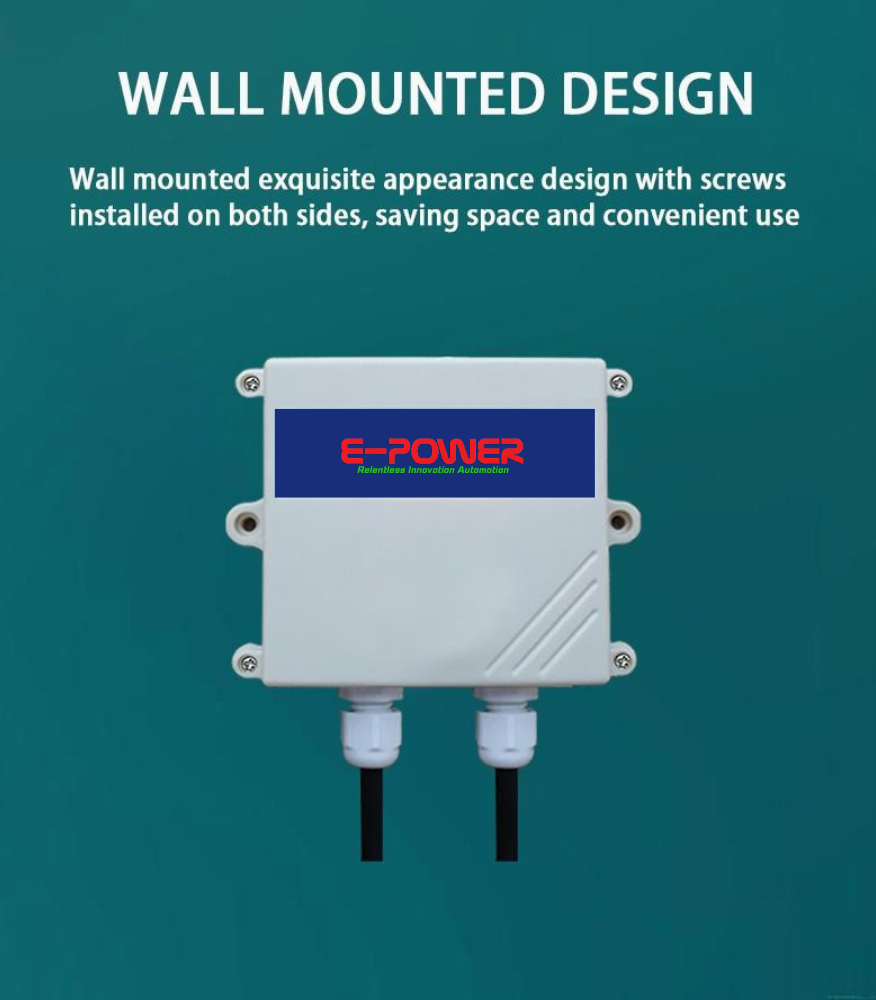

InstallationWall Mounting
