LoRaWAN water quality EC sensor

āļ„āļģāļ­āļ˜āļīāļšāļēāļĒāļŠāļīāļ™āļ„āđ‰āļēāđāļšāļšāļĒāđˆāļ­

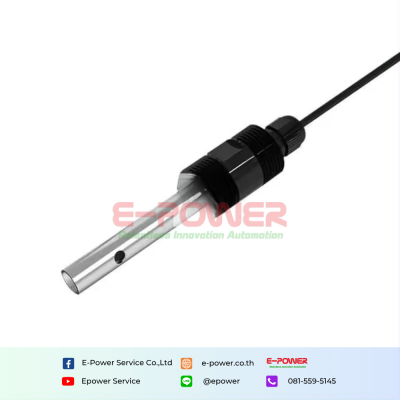

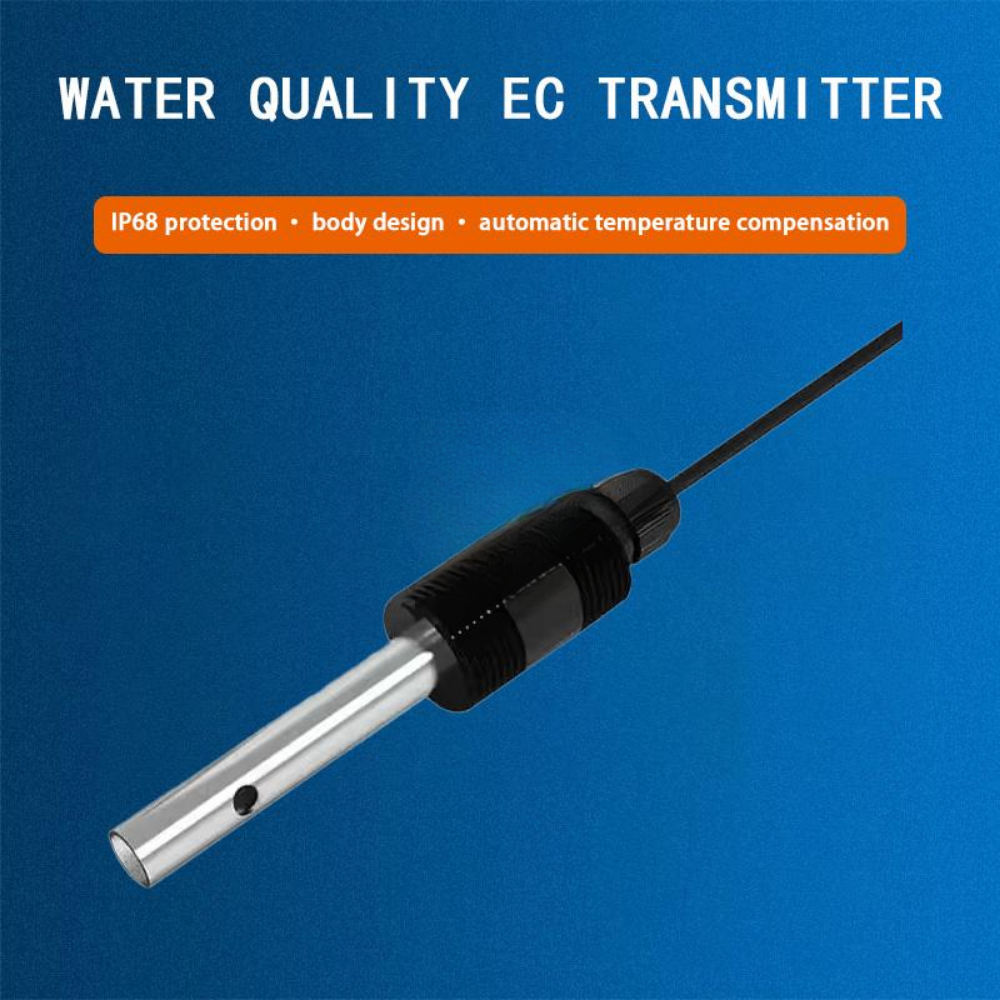

The LoRa water quality EC sensor is a water conductivity sensor used to measure the conductivity of solutions. It has an automatic temperature compensation function, which can compensate the conductivity of the current temperature to the specified temperature. It can be widely used for continuous monitoring of conductivity values of aqueous solutions in areas such as water quality, aquaculture, sewage treatment, environmental protection, pharmaceuticals, food, and tap water. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.
āđāļšāļĢāļ™āļ”āđŒ: EPS
āļŦāļĄāļ§āļ”āļŦāļĄāļđāđˆ: EPS Sensor, LoRaWAN Sensor
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Attribute

Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality EC sensor
Descriptionwater quality sensor
Communication ProtocolLoRaWAN,LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A


Sensor Parameters

Measuring range1~2000ΞS/cm
Resolution0.1ΞS/cm
AccuracyÂą1%FS
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm
InstallationWall Mounting
