LoRaWAN-Enabled Dissolved Oxygen (DO) Sensor
LoRa water quality dissolved oxygen sensor is a device used to measure the amount of dissolved oxygen in water.
Dissolved Oxygen Sensor Features:

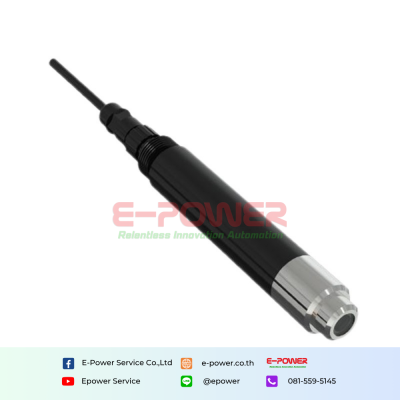

- The DO sensor measures DO with a fluorimetric method that does not consume oxygen and does not use electrolytes.
- Temperature-compensated transmitter is installed inside, which can automatically adjust the result of a measurement according to the water temperature to ensure the accuracy of the data.
- Imported fluorescent film is used, the quality is good, and the measured data is stable and reliable.

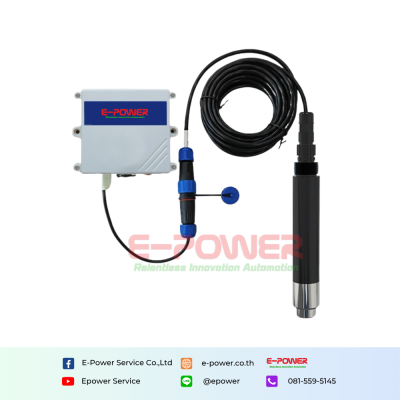

- The LoRaWAN collector and water quality dissolved oxygen transmitter are connected with aviation connectors, which are convenient and fast to install and disassemble.
- It is based on LoRaTM spread spectrum modulation technology, and the signal can be transmitted far, so there is no need to worry about distance.
- It can be very useful in water treatment, aquaculture, environmental monitoring and other industries.
Technical Parameters
| Power Supply | DC12/24V |
| Weight | 150g |
| Operating Emperature | 0~40°C |
| Measuring Principle | Fluorescence |
| Measuring Range | 0~20mg/L (0~200% saturation) |
| Measurement Error | ¹3%FS; ¹0.5°C (25°C) |
| Resolution Ratio | 0.01mg/L; 0.1%; 0.1°C |
| Fluorescent Film Lifespan | Normal use for 1 year |
| LDO | Fluorescence dissolved oxygen transmitter (freshwater version) |
| LDOS | Fluorescence dissolved oxygen transmitter (seawater version) |
| Pressurization | 0.6Mpa |
| DO Transmitter | Default 5m (other lengths can be customized) |
| Line length | |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | External power supply:10min(Default reporting cycle) |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
| Equipment information (Reference) | AppEUI: 0000000000000001 |
| DevEUI: aaaa202404150001 | |
| AppKey: 00001111222233334444555566667777 | |
| MAC Version: LoRaWAN 1.0.3 |
Product Applications
1. Aquaculture: Real time monitoring of oxygen content in water.
2. Sewage treatment: promote water purification. Ensure the activity of microorganisms and improve the efficiency of sewage treatment.
3. Environmental protection: Helps evaluate water quality and take corresponding protective measures.
4. Natural water monitoring: It is of great significance for maintaining the ecological balance of water bodies and protecting aquatic organisms.

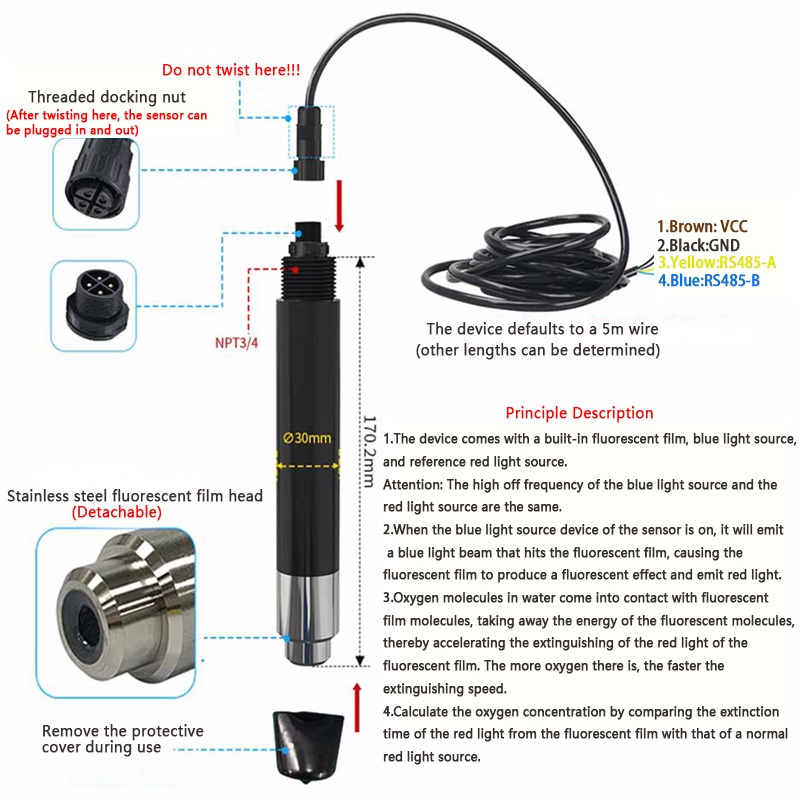

DO Transmitter Size and Installation
1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
