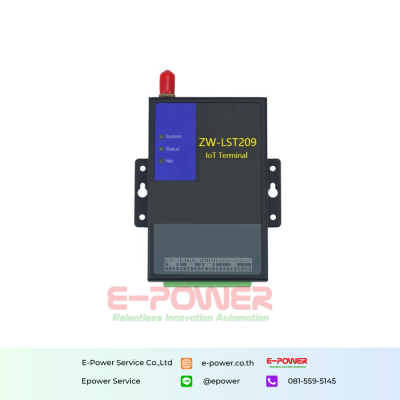

LoRa water meter collection Terminal
Product Details

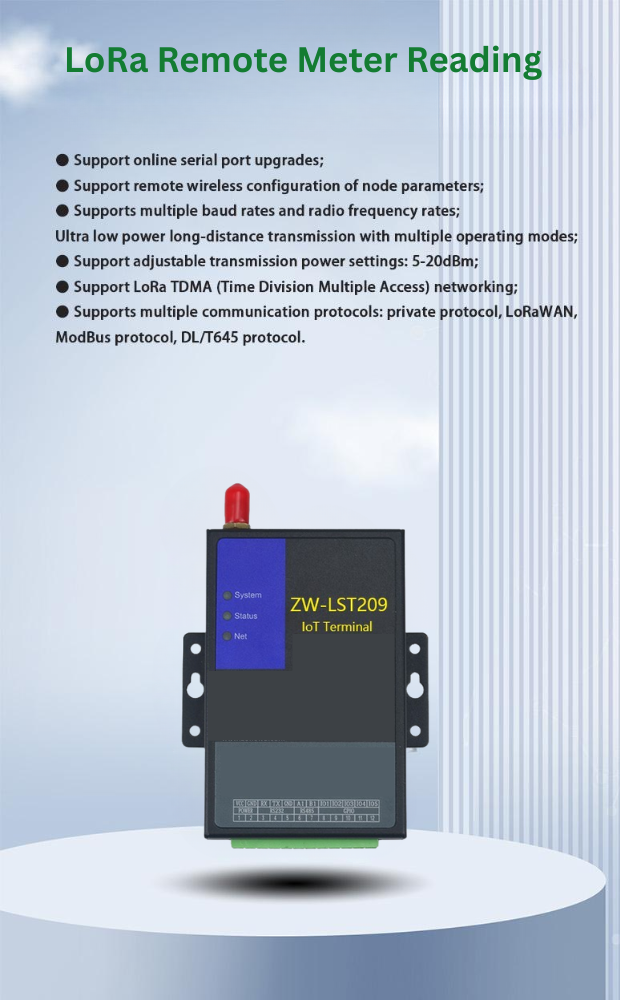

The water meter collection terminal is an LPWAN (Low Power Wide Area Network) product.
Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless water meter collection terminal that integrates data collection and monitoring. By using terminal interface mode, data from the electricity meter can be directly collected. Supports connecting multiple water meters for collection, up to eight water meters for collection. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.
This product is widely used in the M2M industry in the IoT industry chain, such as smart communities, remote meter reading, and building intelligence.
Specifications
| Wireless Transmission | |
| Technology | LoRaWANãLoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA/ABP |
| Data Interfaces | |
| Interface Type | 3.5 mm Terminal Block |
| GPIO | 1 Ã DI + 1 Ã DO + 3 Ã AI |
| Serial Port | 1 Ã RS232 + 1 Ã RS485 |
| Series Rate | 4800~115200bps |
| Serial port protocol | Modbus RTUïžRS485ïž,Other protocols can be customized |
| Analog Input | 3Ã 4~20 mAïžDefaultïž, 3 Ã 0~5 V(Hardware Optional) |
| Others | |
| Configuration Port | 1 Ã RS232 |
| LED Indicators | 1 Ã Power, 1 Ã Status,1 Ã LoRa |
| Built-in | Watchdog |
| Physical Characteristics | |
| Input Voltage | 5-28VDC |
| Operating Temperature | -30°C ~ 70°C (-22°F to +158°F) |
| Dimensions | 91 Ã 58.5 Ã 22 mm (Excluding antennas and mounting components) |
| Installation | Wall Mounting |
