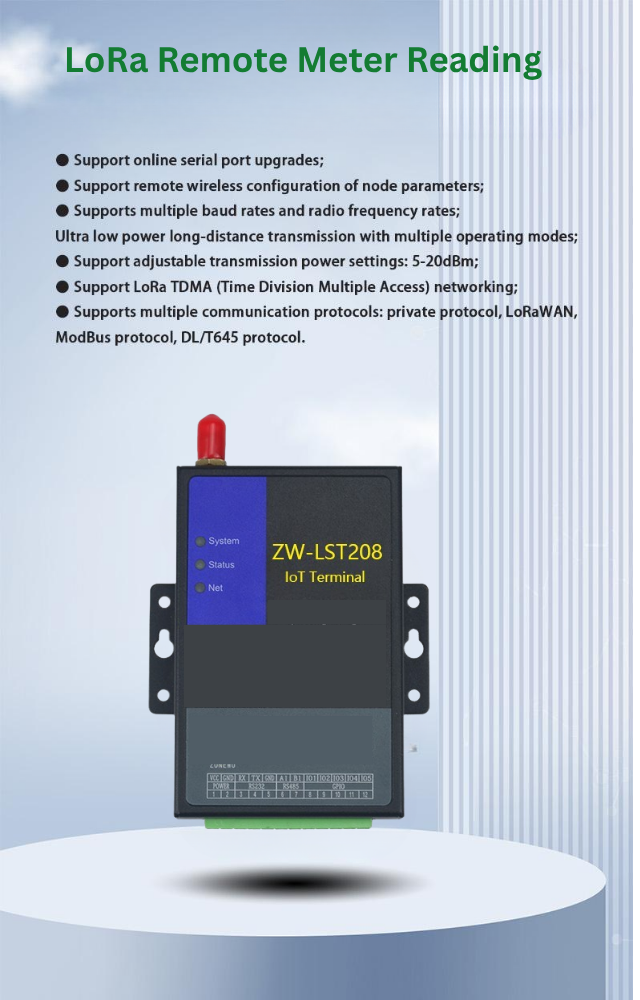

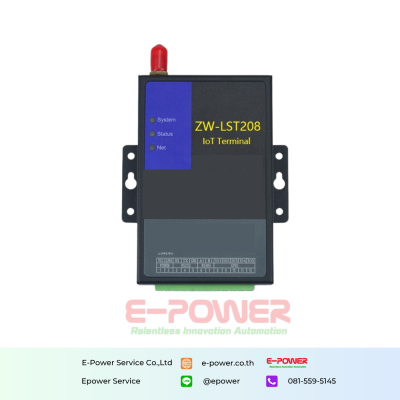

LoRa meter acquisition Terminal
Product Details
The electricity meter acquisition terminal is a product of LPWAN (Low Power Wide Area Network).
Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless meter collection terminal that integrates data collection and monitoring. By using terminal interface mode, the value of the electricity meter can be directly collected. Support connecting multiple electricity meters for collection, up to eight electricity meters for collection. Support remote power on/off function. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.
This product is widely used in the M2M industry in the IoT industry chain, such as smart communities, remote meter reading, and building intelligence.
Specifications
| Wireless Transmission | |
| Technology | LoRaWAN、LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA/ABP |
| Data Interfaces | |
| Interface Type | 3.5 mm Terminal Block |
| GPIO | 1 × DI + 1 × DO + 3 × AI |
| Serial Port | 1 × RS232 + 1 × RS485 |
| Series Rate | 4800~115200bps |
| Serial port protocol | Modbus RTU（RS485）,Other protocols can be customized |
| Analog Input | 3× 4~20 mA（Default）, 3 × 0~5 V(Hardware Optional) |
| Others | |
| Configuration Port | 1 × RS232 |
| LED Indicators | 1 × Power, 1 × Status,1 × LoRa |
| Built-in | Watchdog |
| Physical Characteristics | |
| Input Voltage | 5-28VDC |
| Operating Temperature | -30°C ~ 70°C (-22°F to +158°F) |
| Dimensions | 91 × 58.5 × 22 mm (Excluding antennas and mounting components) |
| Installation | Wall Mounting |
