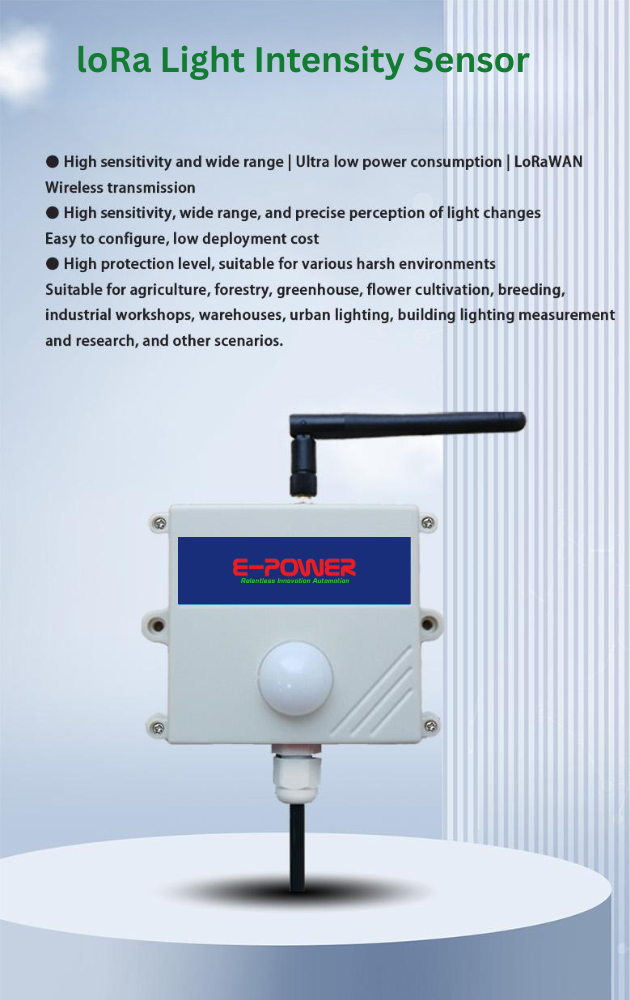

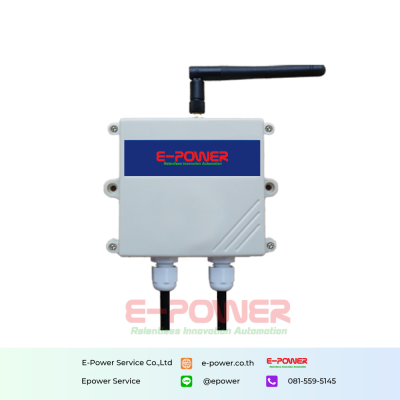

LoRa light intensity sensor

āļ„āļģāļ­āļ˜āļīāļšāļēāļĒāļŠāļīāļ™āļ„āđ‰āļēāđāļšāļšāļĒāđˆāļ­

The lighting acquisition terminal is a product of LPWAN (Low Power Wide Area Network).Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The terminal casing is treated with waterproof sealing, suitable for outdoor and relatively humid environments. Real time and stable monitoring of on-site environmental changes enables users to accurately grasp the environmental changes of the same application site, quickly respond, and ensure the stability of the production site environment. Supports remote wireless gateway configuration, with good stability and reliability.
āđāļšāļĢāļ™āļ”āđŒ: EPS
āļŦāļĄāļ§āļ”āļŦāļĄāļđāđˆ: EPS Sensor, LoRaWAN Sensor
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Product Details

The lighting acquisition terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The terminal casing is treated with waterproof sealing, suitable for outdoor and relatively humid environments. Real time and stable monitoring of on-site environmental changes enables users to accurately grasp the environmental changes of the same application site, quickly respond, and ensure the stability of the production site environment. Supports remote wireless gateway configuration, with good stability and reliability.

This product is widely used in the M2M industry in the IoT industry chain, such as smart agriculture, ecological research in agriculture and forestry, crop disaster prevention, and urban lighting.

Specifications

Wireless Transmission
Communication ProtocolLoRaWAN,LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Measurement
Range0-65535lux
AccuracyÂą20%
Operation
ConfigurationNFC Configuration via Mobile App、Local configuration of serial port
Physical Characteristics
Power Supply5-28VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm

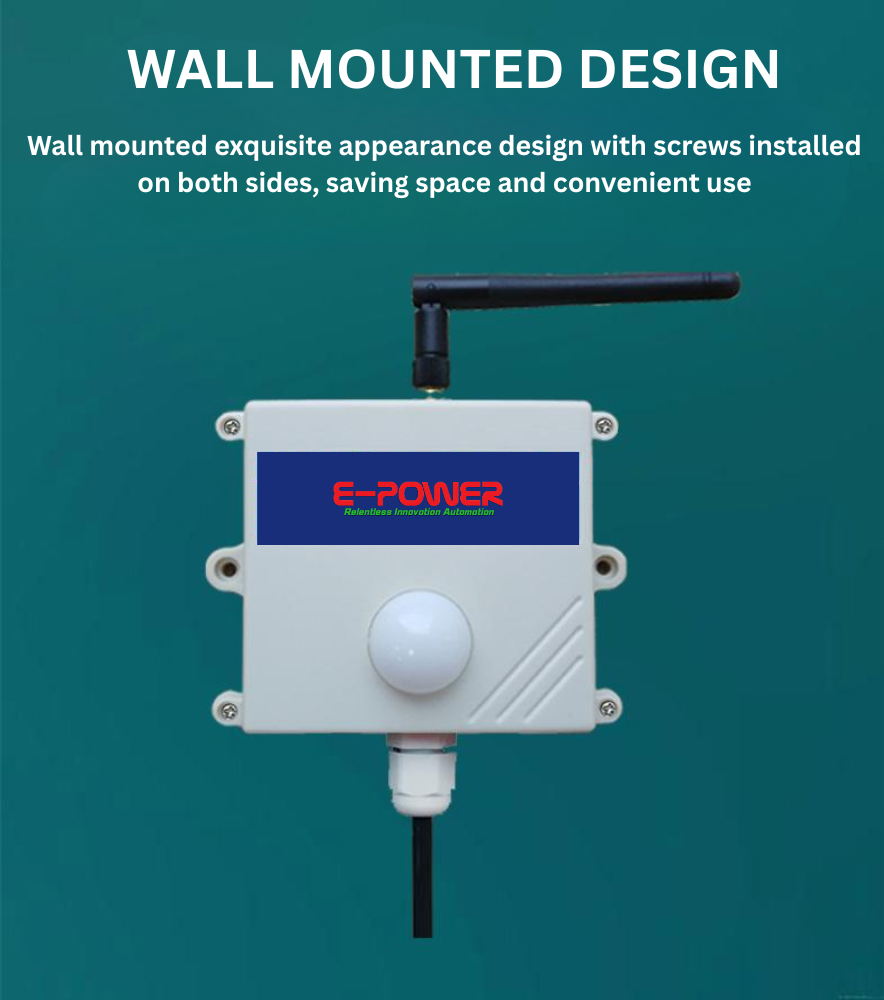

InstallationWall Mounting
