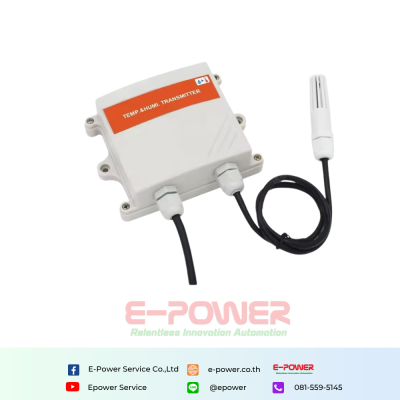

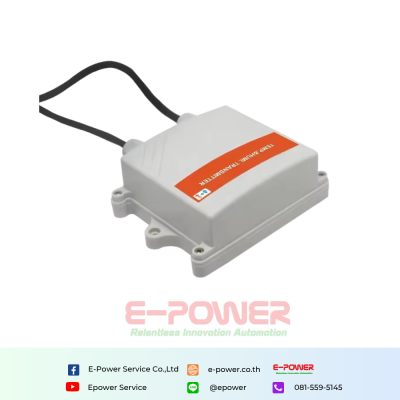

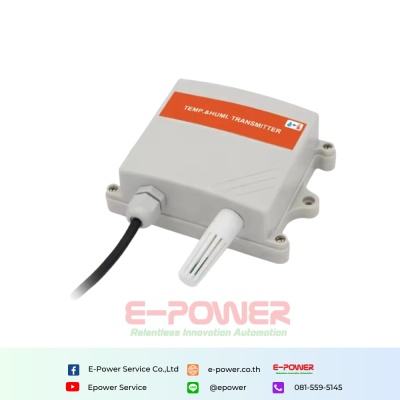

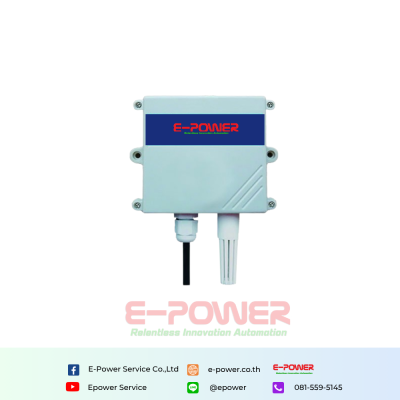

Temperature and Humidity Transmitter
This product is a wall mounted shell with a high protection level of IP65, which is rain and snow resistant and has good breathability. The circuit adopts industrial grade microprocessor chips imported from the United States and high-precision temperature sensors imported, ensuring excellent reliability, high precision, and interchangeability of the product. This product adopts a particle sintered probe sheath, which is directly connected to the shell and has a beautiful and elegant appearance. The output signal types are divided into RS485 and can communicate up to 2000 meters. The standard ModBus protocol supports secondary development
รายละเอียดสินค้า
Temperature and Humidity Transmitter
This product is a wall mounted shell with a high protection level of IP65, which is rain and snow resistant and has good breathability. The circuit adopts industrial grade microprocessor chips imported from the United States and high-precision temperature sensors imported, ensuring excellent reliability, high precision, and interchangeability of the product. This product adopts a particle sintered probe sheath, which is directly connected to the shell and has a beautiful and elegant appearance. The output signal types are divided into RS485 and can communicate up to 2000 meters. The standard ModBus protocol supports secondary development.
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | 24VDC RS485 Analog Output Temperature and Humidity Probe Sensor |
| Keywords | Temperature and Humidity Probe Sensor |
| Output | 4-20mA/0-5V/0-10V/RS485 |
| Temperature Measurement | |
| Range | -40°C to + 80°C |
| Accuracy | ± 0.4°C |
| Humidity Measurement | |
| Range | 0% to 100% RH |
| Accuracy | ± 2% |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Dimensions | 90x85x40 mm |
| Installation | Wall Mounting |
