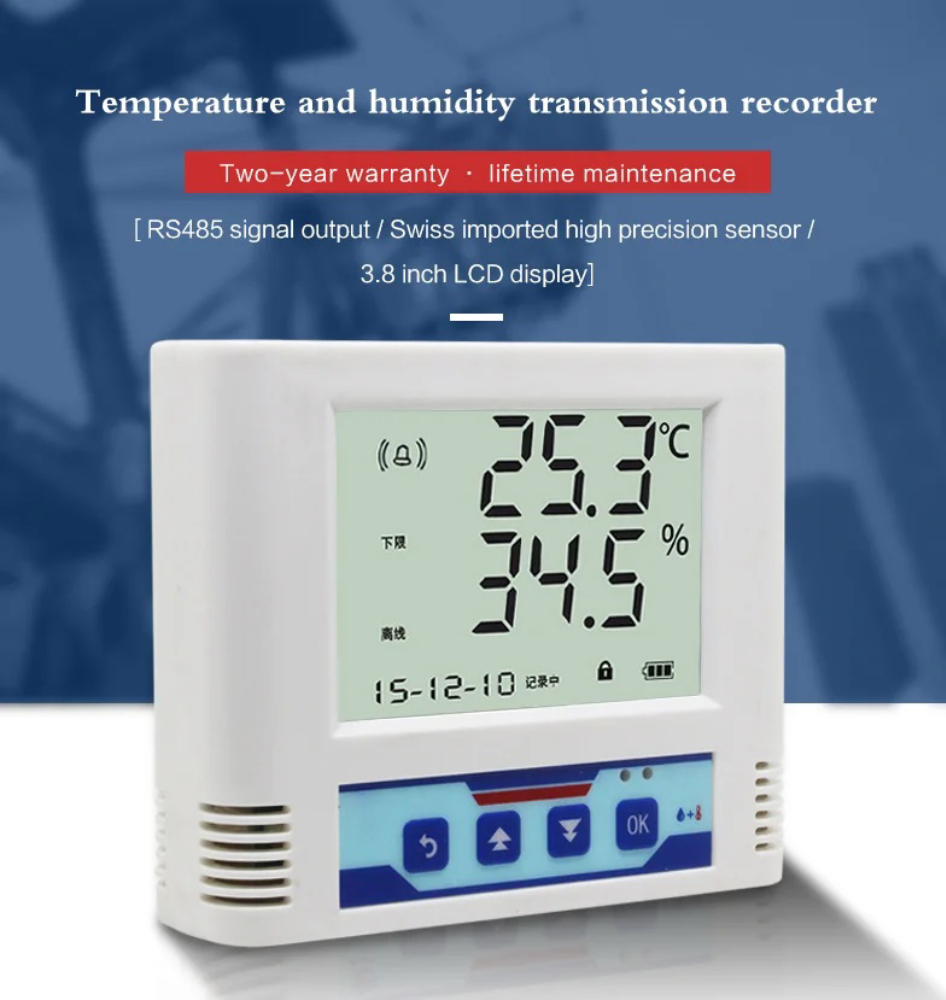

Industrial LCD display temperature and humidity transmitter (RS485 type)
This transmitter is equipped with a LCD display, which displays temperature and humidity in real time. There are two outlet methods on the back. The device adopts the standard ModBus RTU communication protocol, with RS485 signal output and a maximum communication distance of 2000 meters (measured). The probe is built-in and widely used in communication rooms, warehouse buildings, and self-control places that require temperature and humidity monitoring. Safe and reliable, with a beautiful appearance and convenient installation.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Industrial LCD display temperature and humidity transmitter (RS485 type)
This transmitter is equipped with a LCD display, which displays temperature and humidity in real time. There are two outlet methods on the back. The device adopts the standard ModBus RTU communication protocol, with RS485 signal output and a maximum communication distance of 2000 meters (measured). The probe is built-in and widely used in communication rooms, warehouse buildings, and self-control places that require temperature and humidity monitoring. Safe and reliable, with a beautiful appearance and convenient installation.
Technical Specifications
Technical Specifications| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | Indoor LCD display smart temperature and humidity sensor |
| Keywords | Temperature and Humidity Probe Sensor |
| Display | LCD Screen |
| Alarm | Built in buzzer, external sound and light alarm, optional relay |
| Storage mode | Automatic loop storage |
| Storage capacity | 65535 articles |
| Output signal | RS485 |
| Temperature Measurement | |
| Range | -40°C to + 80°C |
| Accuracy | ¹ 0.5°C |
| Humidity Measurement | |
| Range | 0% to 100% RH |
| Accuracy | Âą 3% |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Dimensions | 122x102x36 mm |
| Installation | Wall Mounting |
Sensor
LoRa
LoRaWan
temperature and humidity transmitter
transmitter
RS485 type
humidity transmitter
temperature transmitter
LCD display transmitter
LCD display
