CO2 Transmitter

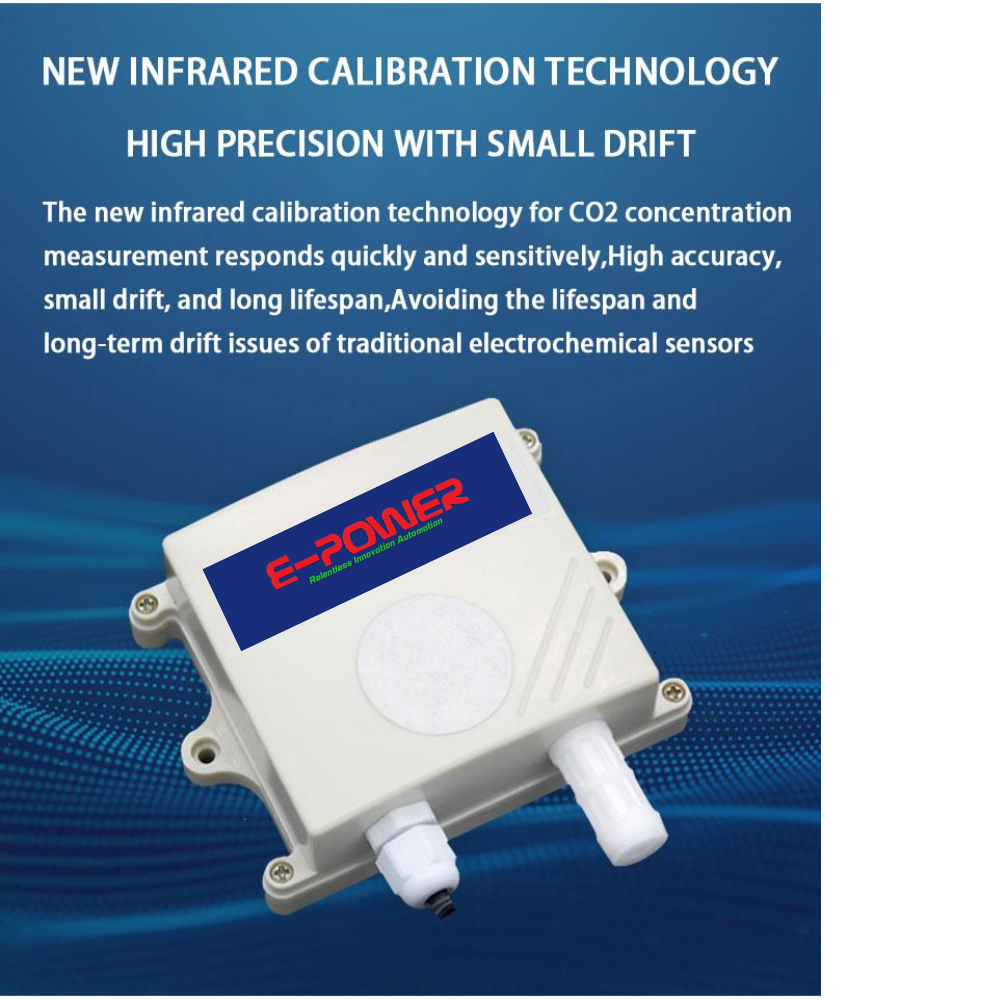

This transmitter adopts a new infrared calibration technology for measuring carbon dioxide concentration, which responds quickly and sensitively, avoiding the lifespan and long-term drift problems of traditional electrochemical sensors. It is widely used in agricultural greenhouses, flower cultivation, edible mushroom cultivation, and other occasions that require carbon dioxide and temperature and humidity monitoring.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
CO2 Transmitter
This transmitter adopts a new infrared calibration technology for measuring carbon dioxide concentration, which responds quickly and sensitively, avoiding the lifespan and long-term drift problems of traditional electrochemical sensors. It is widely used in agricultural greenhouses, flower cultivation, edible mushroom cultivation, and other occasions that require carbon dioxide and temperature and humidity monitoring.
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | Greenhouse Oem 4-20ma 0-5v 0-10v Analog co2 carbon dioxide sensor |
| Detecting Gas | CO2 |
| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Working temperature | -10~+50 , 0-80% RH (no condensation) |
| Response time | 90s |
| Application | Environmental Monitoring |
| CO2 Measurement | |
| Range | 0~5000ppm, 0~10000ppm (optional) |
| Accuracy | 0~5000ppm : ¹(50ppm+ 3%F·S) (25 ) 0~10000ppm : ¹(50ppm+ 5%F·S) (25) @400-5000ppm |
| Nonlinearity | <1% F S |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Material | ABS Plastic |
| Physical dimensions | 110x85x44mm |

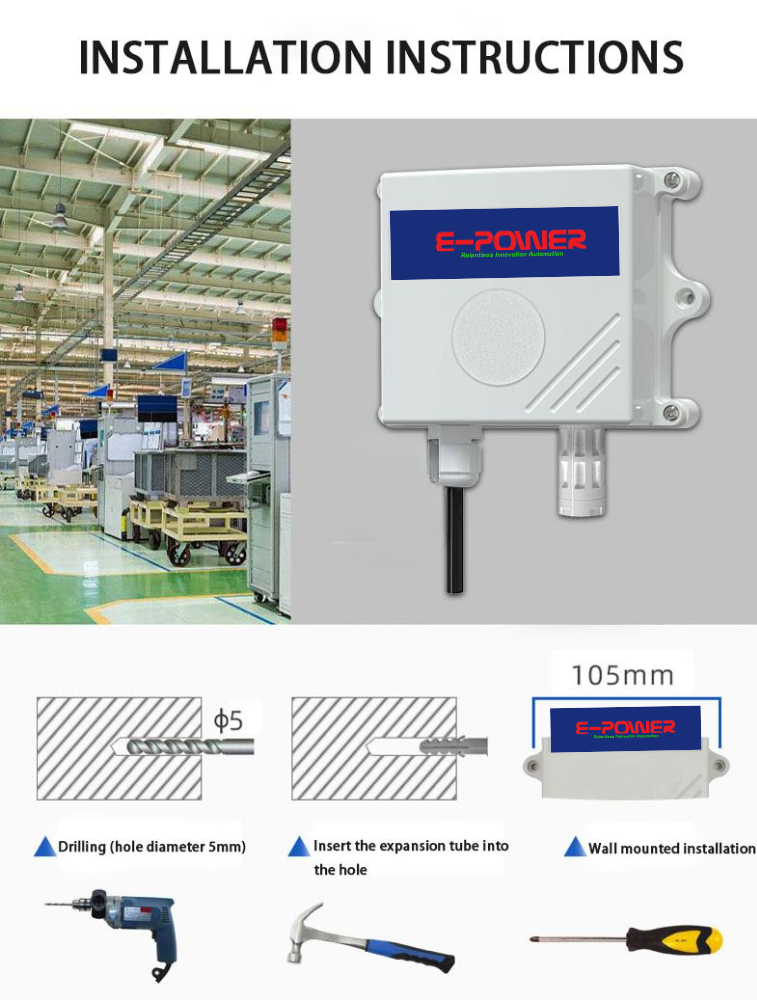

| Installation | Wall mounted installation |
