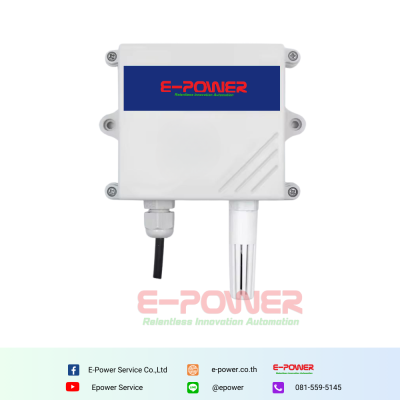

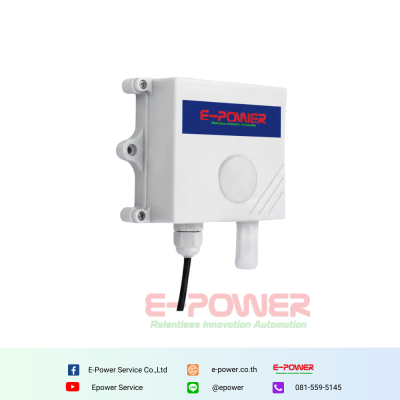

CO Sensor

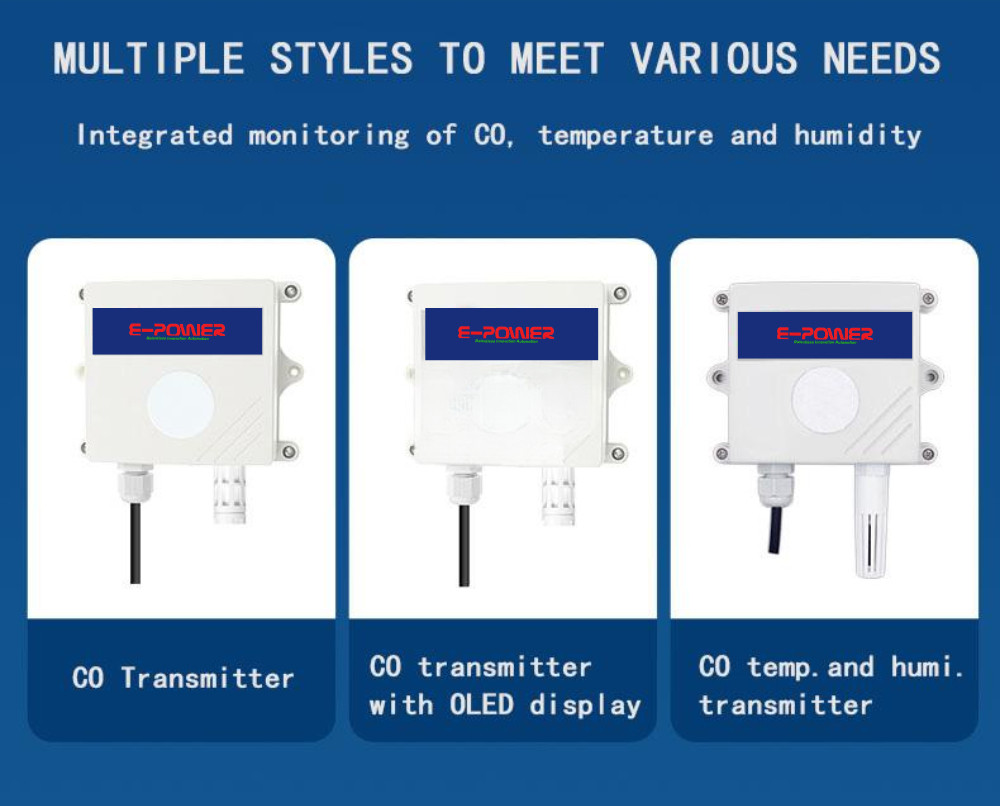

The carbon monoxide transmitter uses electrochemical technology to measure the concentration of carbon monoxide, which responds quickly and sensitively. This transmitter is widely used in air quality detection, smart homes, and other occasions that require carbon monoxide and temperature and humidity detection.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
CO Sensor
The carbon monoxide transmitter uses electrochemical technology to measure the concentration of carbon monoxide, which responds quickly and sensitively. This transmitter is widely used in air quality detection, smart homes, and other occasions that require carbon monoxide and temperature and humidity detection.
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | RS485 4 to20 ma gas detector co sensor 0-10v carbon monoxide sensor |
| Detecting Gas | CO |
| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Working temperature | -20~+50 , 15-90% RH (no condensation) |
| Response time | 90s |
| Application | Environmental Monitoring |
| CO Measurement | |
| Range | 0~1000ppm, 0~2000ppm (optional) |
| CO resolution | 1ppm |
| CO accuracy | Âą 5ppm or Âą 10% |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Material | ABS Plastic |
| Physical dimensions | 110x85x44mm |

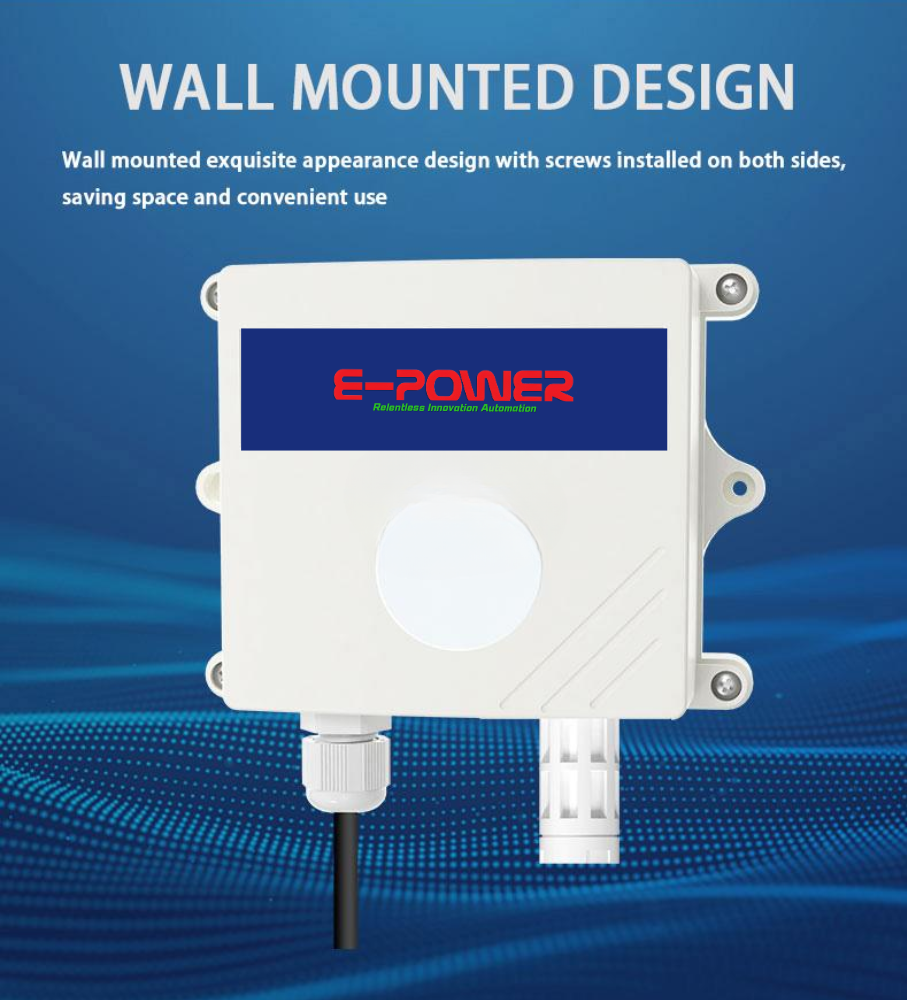

| Installation | Wall mounted installation |
