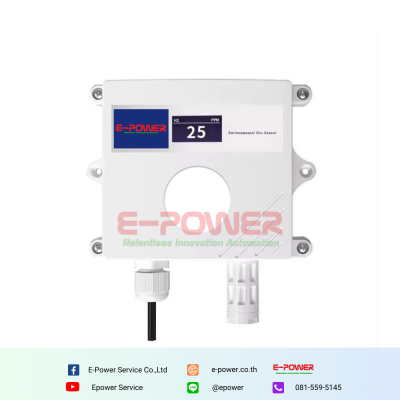

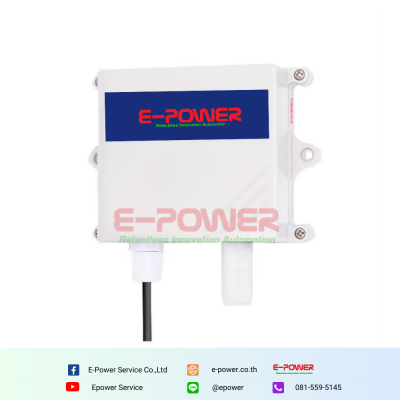

Hydrogen transmitter
Adopting imported top brand electrochemical sensors, stable and durable;
Multiple measurement range options, 0~1000ppm, 0~40000ppm;
High measurement accuracy, up to ± 5% FS, and repeatability up to ± 2%;

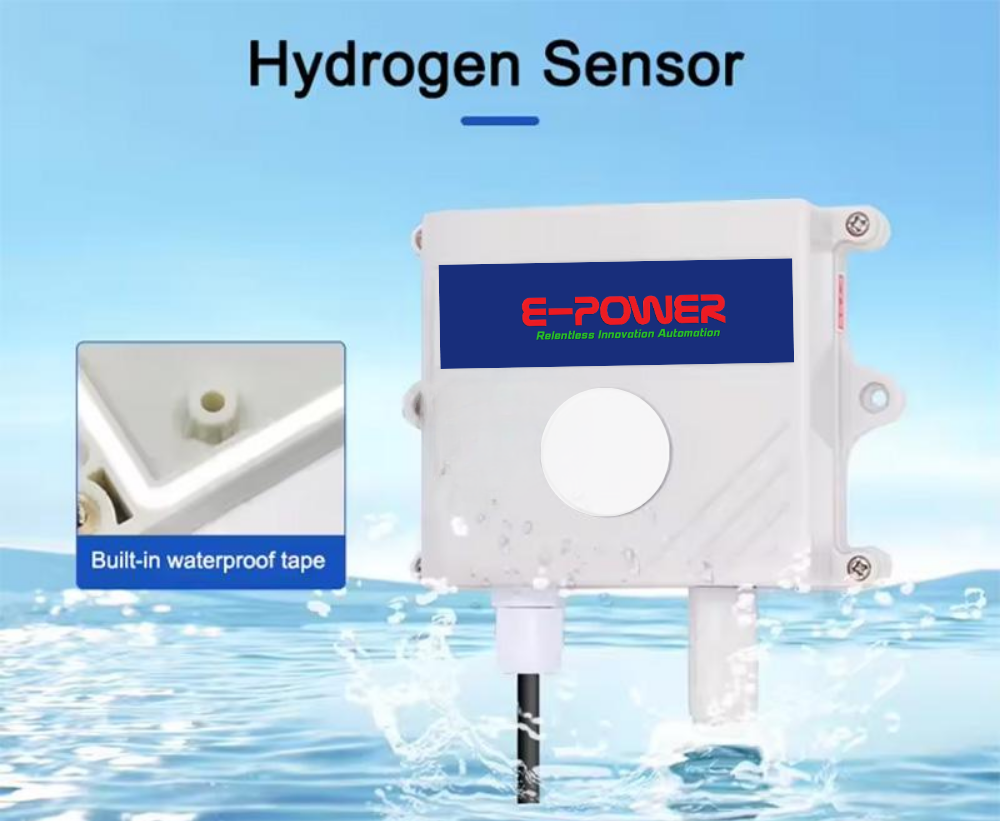

Adopting a wall mounted waterproof shell, it is easy to install and has a high level of protection, which can be applied to harsh on-site environments.
รายละเอียดสินค้า
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | H2 Gas Detector RS485 4-20mA Electrochemical Hydrogen Sensors |
| Detecting Gas | CH4 |
| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Working temperature | -20~+50 , 0-90% RH (no condensation) |
| Response time | 1000ppm: 70S 40000ppm: 60S |
| Application | Hydrogen gas detection |
| H2 Measurement | |
| Range | 0~1000ppm / 0~40000ppm |
| Repeatability | 1ppm |
| Detection accuracy | ±5%FS |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Material | ABS Plastic |
| Physical dimensions | 110x85x44mm |
| Installation | Wall mounted installation |
