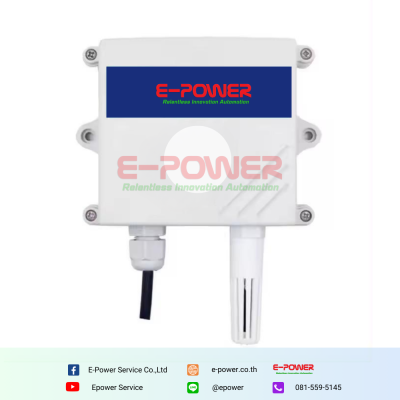

Formaldehyde Sensor
High measurement accuracy with repeatability up to ± 2%;
Range 0~5ppm, other ranges can also be customized;
On site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site;

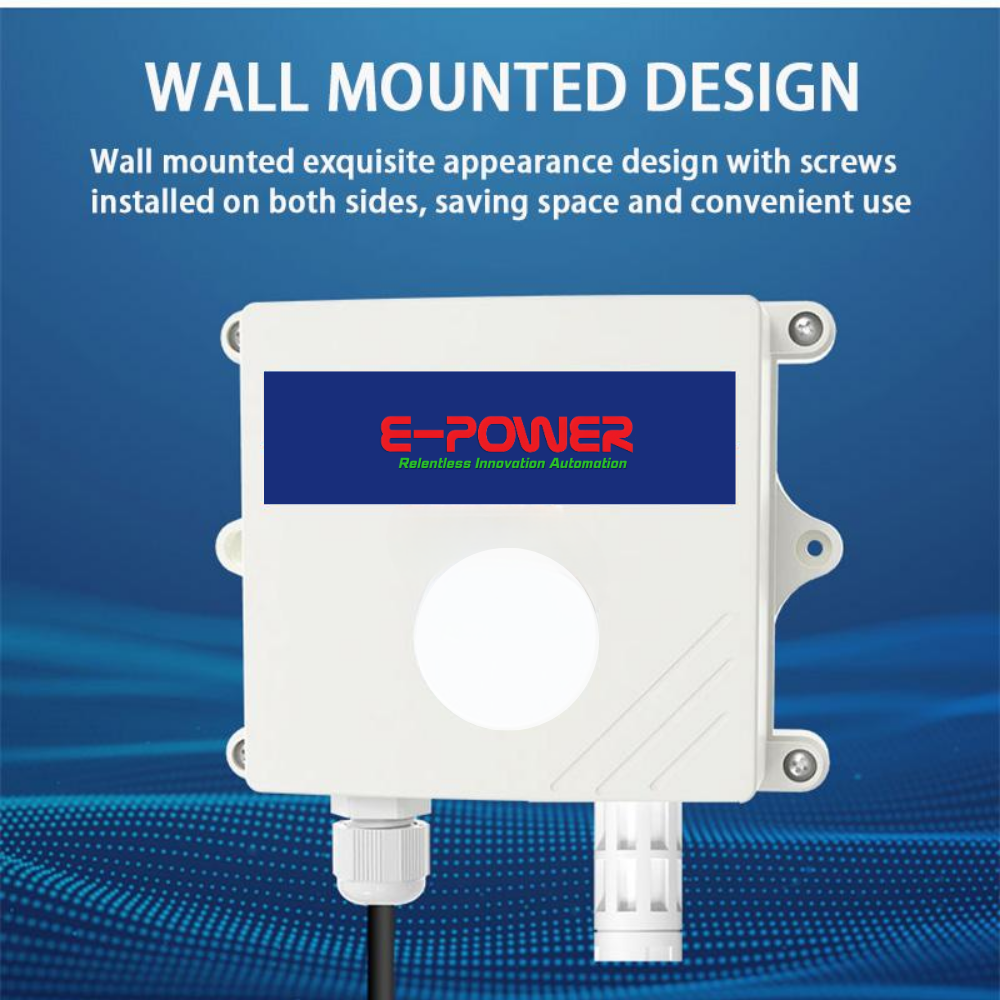

Adopting a wall mounted waterproof shell, it is easy to install and has a high level of protection, which can be applied to harsh on-site environments.
รายละเอียดสินค้า
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | CH2O formaldehyde test analyzer hcho gas sensor detector |
| Detecting Gas | CH2O |

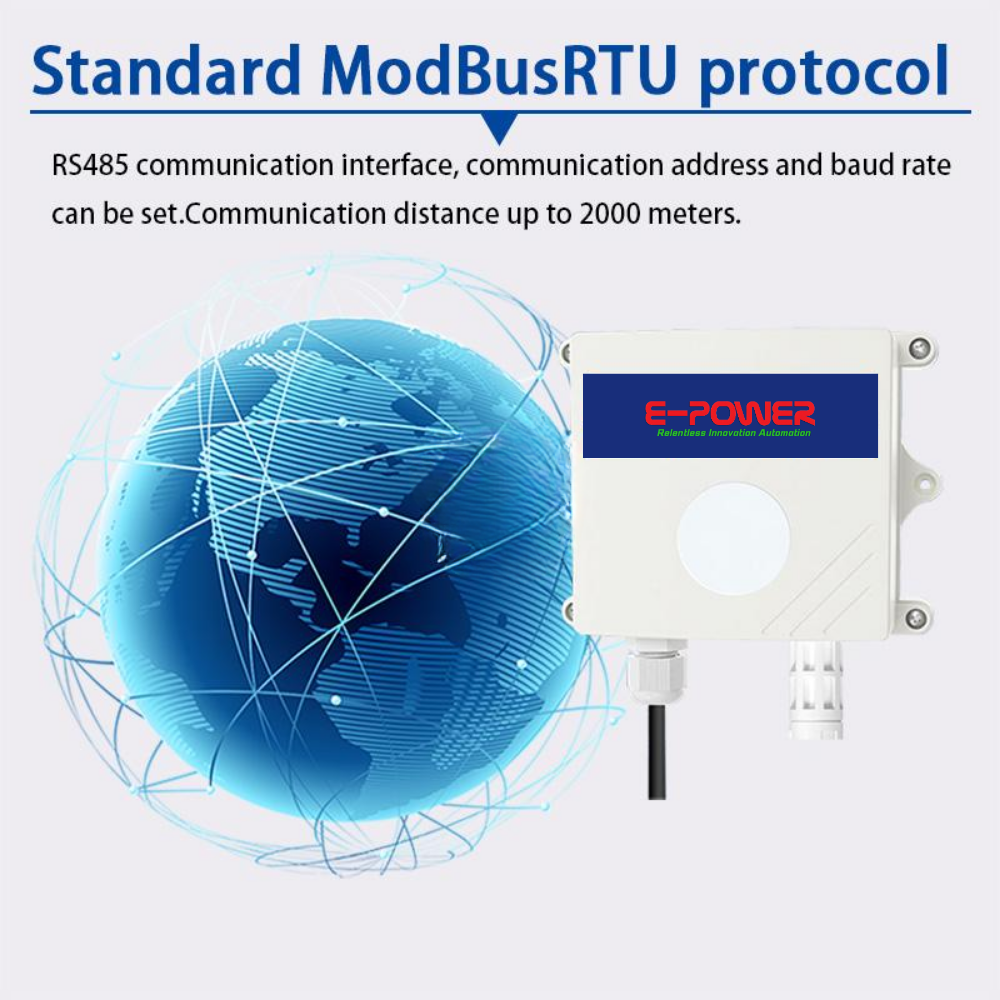

| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Working temperature | -20~+50 , 0-90% RH (no condensation) |
| Response time | 35s |
| Application | Formaldehyde gas detection |
| CH2O Measurement | |
| Range | 0~5ppm |
| Repeatability | 1ppm |
| Detection accuracy | ±5%FS |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Material | ABS Plastic |
| Physical dimensions | 110x85x44mm |

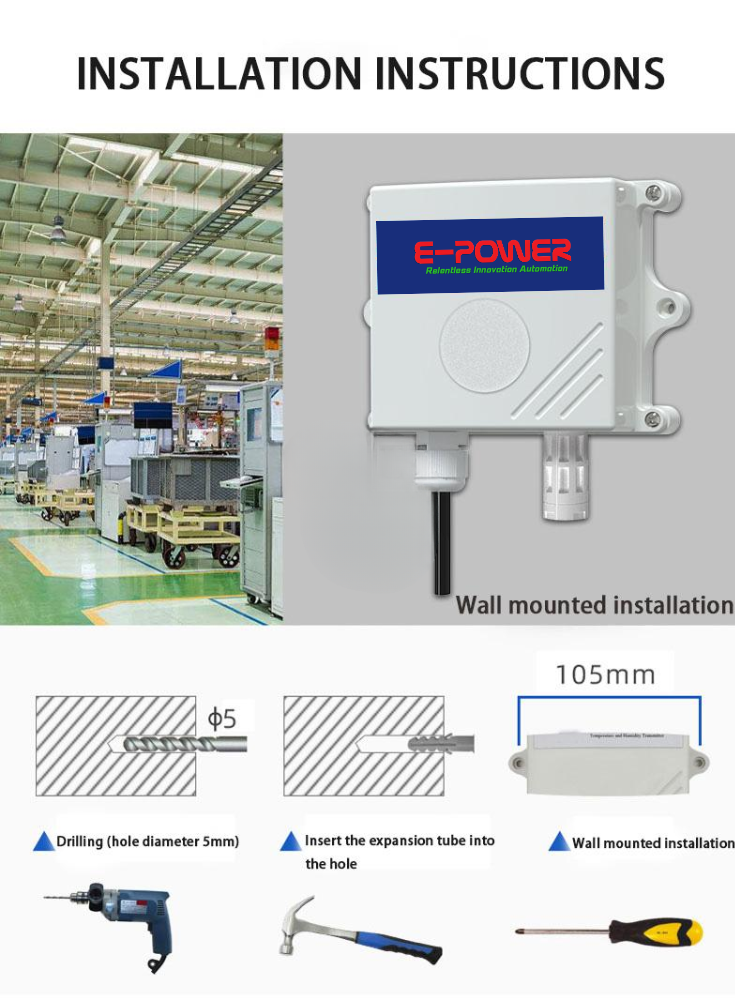

| Installation | Wall mounted installation |
