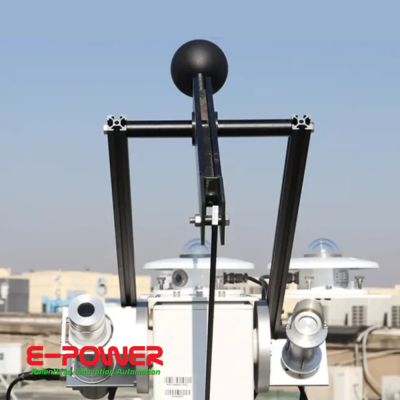

SAUT Solar Radiation Measurement System
The SAUT automatic solar tracking system is a high-precision, fully automated solar tracking system designed for photovoltaic power plants. It improves the efficiency of solar radiation collection and photovoltaic power generation. This highly integrated, intelligently controlled, all-weather automatic solar tracking platform enables precise positioning and tracking of various solar radiation sensors. It is widely used in meteorological observation, photovoltaic power plant monitoring, research institutions, and environmental radiation measurement projects.
Introduction
The SAUT automatic solar tracking system is a high-precision, fully automatic solar tracking device designed specifically for the photovoltaic power generation field. It boasts a pointing accuracy of <0.1°, enabling precise alignment with the sun to maximize solar radiation data collection and improve power generation efficiency. The system supports a 5kg load, utilizes a DC 12V power supply, and consumes 24W during sun tracking, reducing to 6W after sunset, making it an energy-efficient design. With an IP67 protection rating, it operates stably in extreme environments ranging from -40°C to 70°C, and offers adjustable azimuth and elevation rotation angles for accurate, all-weather solar radiation tracking.

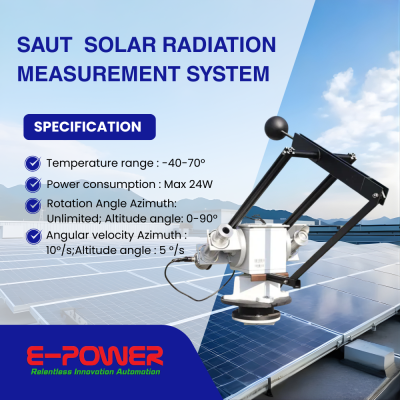

Product Parameters
| Parameter | Specification |
|---|---|
| powered by | DC12V |
| Temperature range | -40-70° |
| Power consumption (sun tracking) | Max 24W |
| Angular velocity | Azimuth : 10°/s; Altitude angle : 5°/s |
| Rotation Angle | Azimuth: Unlimited; Altitude angle: 0-90° |

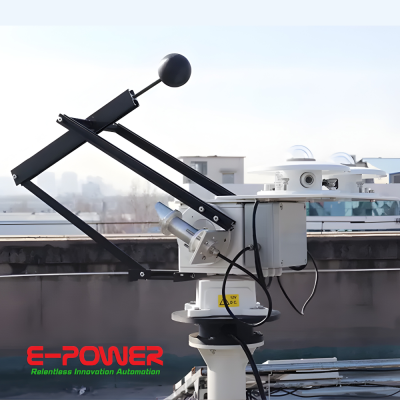

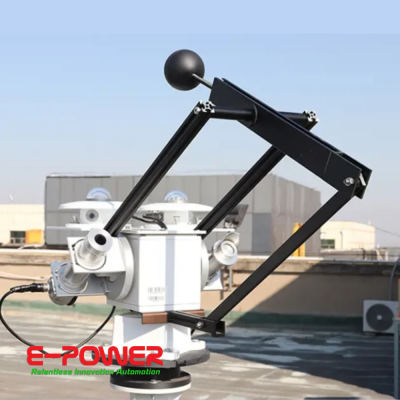

Structure of Automatic Tracking Solar Radiation
- Light-blocking ball: Blocks stray light for accurate radiation measurement.
- Light-blocking device: Eliminates ambient light interference, ensuring data purity.
- Scattered radiation: Measures solar radiation scattered by the atmosphere.
- Global radiation: Measures the total solar radiation, including direct and diffuse radiation.
- Direct Radiation: Measures solar radiation directly incident on the radiometer.
- Dual-Axis Tracker: Accurately tracks the sun’s horizontal and vertical movement.
- Light chasing tube: Captures the sun’s direction and light intensity.
