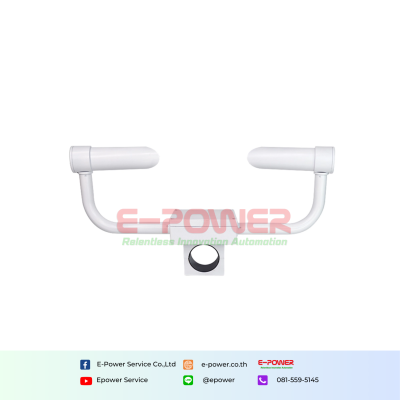

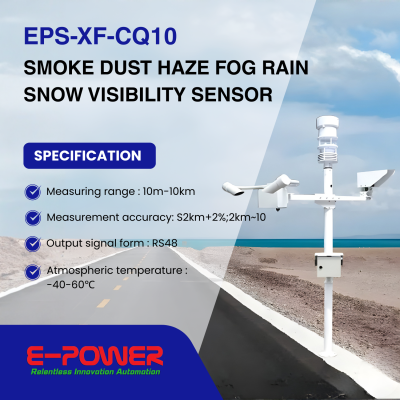

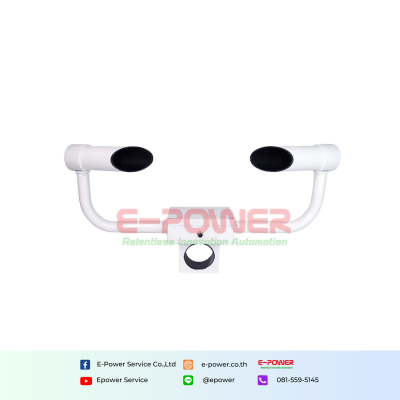

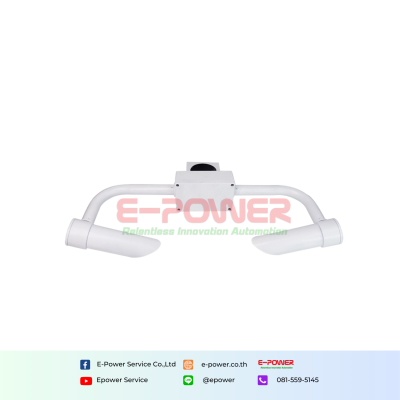

EPS-XF-CQ10 Smoke Dust Haze Fog Rain Snow Visibility Sensor
The EPS-XF-CQ10 Smoke Dust Haze Fog Rain Snow atmospheric visibility sensor is an optical-based meteorological observation device designed to measure ground-level atmospheric visibility (optical distance). This equipment provides real-time visibility monitoring and data for the installation area, finding extensive application in transportation, aviation, maritime navigation, military operations, air pollution monitoring, and atmospheric physics research.
Introduction
The EPS-XF-CQ10 visibility sensor integrates multi-factor monitoring of smoke, dust, haze, rain, and snow. Featuring a rugged, weather-resistant integrated optical structure design, it ensures high-precision visibility measurements even in complex environments. Key structural features are outlined below.
| Parameter | Specification |
|---|---|
| Atmospheric temperature | -40-60°C |
| Working voltage | 12-24VDC |
| Output signal form | RS48 standard modbus protocol |
| Measuring range | 10m-10km |
| Measurement accuracy | S2km+2%;2km~10kmÂą5% |

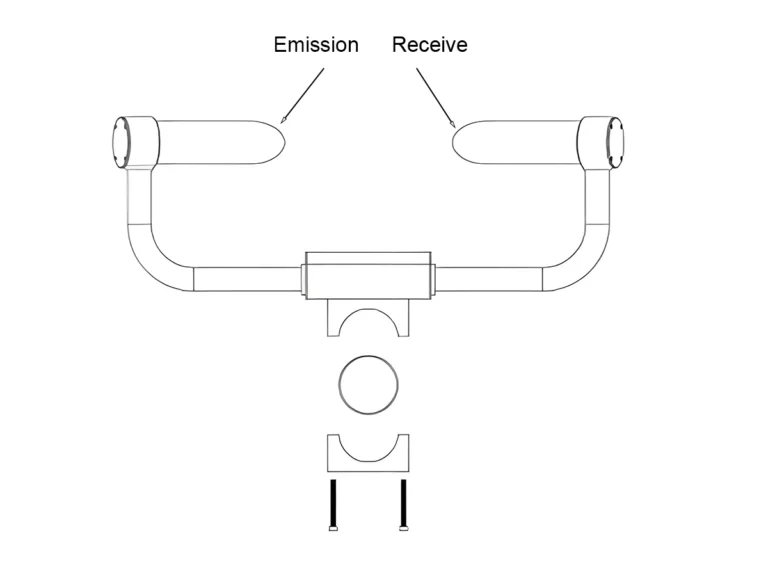

Structure of the XF-CQ10 Visibility Sensor
- Transmitter and Receiver Optical Unit: Forms the core measurement system, enabling collection and processing of visibility scattering light signals.
- Open Measurement Optical Path Structure: Enhances detection sensitivity for fine particles such as smoke, dust, and haze.
- Optical Shading and Stray Light Prevention Structure: Filters environmental interference light to ensure stable and reliable output.
- Weather-resistant metal chassis with fully sealed protective housing (IP65+): Meets long-term outdoor operational requirements.
- Optical heating/defogging assembly: Prevents condensation and frost buildup, maintaining clear optical path functionality.
- Power supply and communication interface module (e.g., RS485/Modbus): Provides standardized wiring and data output.
