Battery Monitoring Module (Measure 12 Battery, 2V6V12V)

Product Description

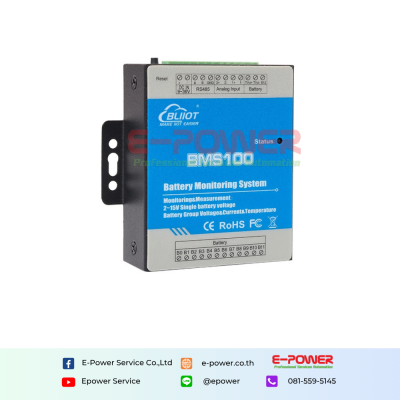

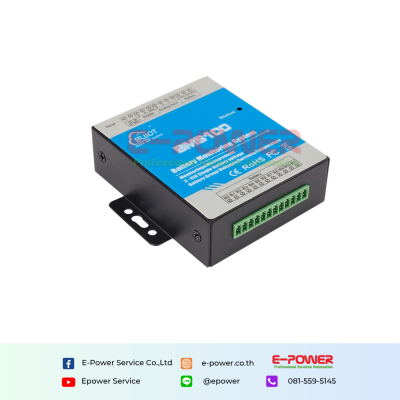

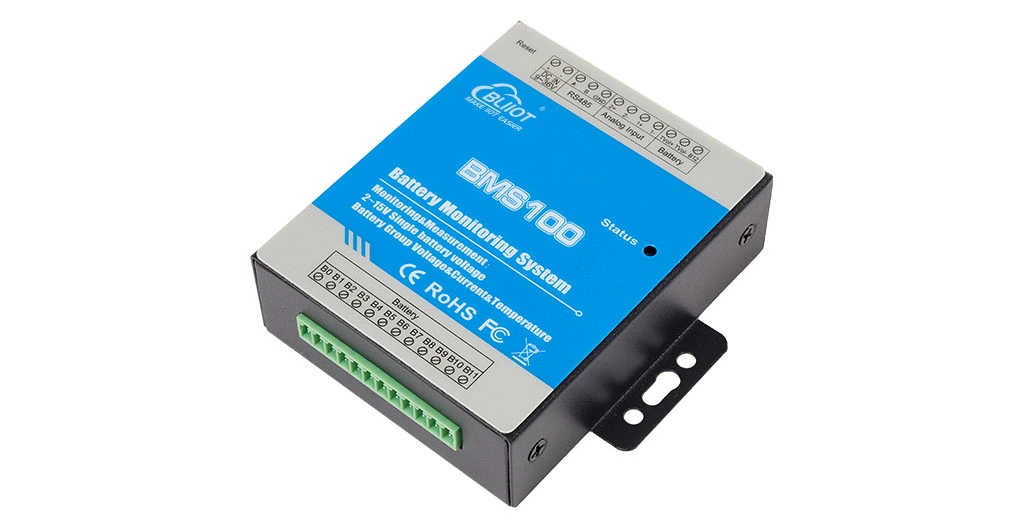

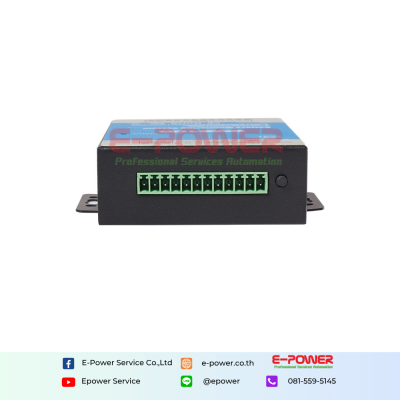

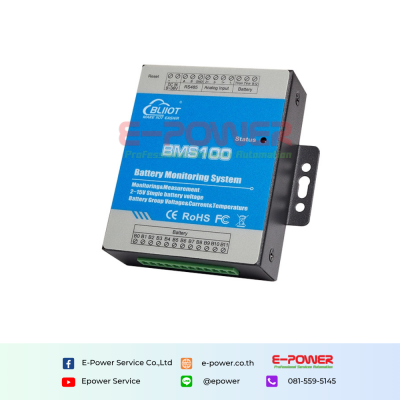

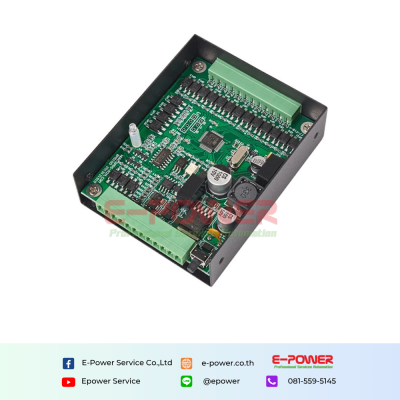

Battery Monitoring Module BMS100 model can realize 2 analog input and 13 battery voltage measurement.It is with RS485 serial port, MODBUS-RTU communication protocol.Power supply is 9-36V DC.

Battery Monitoring Module BMS100 can be used in various industrial automation measurement and control systems. It can measure 4-20mA and 0-5V transducer signal of pressure, temperature,current,etc.It can measure server room battery management and voltage of each battery in each group.

Battery Monitoring Module BMS100 use 16-bit high-precision AD acquisition and data processing technology, professional MCU Controller, non-linear processing algorithm.It has high accuracy, stable performance, strong anti-interference ability, et

Key Features

• Acquisition 2/4 channels of analog input 4 ～ 20mA, 0 ～ 5V, optional;

• Adopt 12-bit AD acquisition processing, high accuracymeasurement;

• Standard Modbus-RTUprotocol;

• RS-485 (RS-422 optional) communication interface with ESD protection circuit;
  Wide working voltage DC9 ～ 60V, with anti-reverse protection function ;

• Using industrial-grade chip, built-in watchdog, and has perfect anti-lightning and anti-interference measures to ensure reliability;

• Configurable maximum and minimum value of analog input, intelligent conversion of actual value, convenient for various analog measurement requirements;

• Can measure 12 single battery voltages,several battery groupand 1 total voltage;

• It has 3 precision gears for different voltage ranges to improve the voltage measurement accuracy;

• With LED light to indicate working status, easy to install and debug on site;
• Wall mounting or 35mm standard DIN rail mounting, multiple wiring methods, convenient for field installation and wiring

Typical Application Scenarios

• UPS monitoring;

• Computer room battery management and monitoring;

• Electric vehicle battery management monitoring;

• Telecommunication BTS monitoring;

• Solar battery monitoring;

• Other battery or battery group monitoring.
