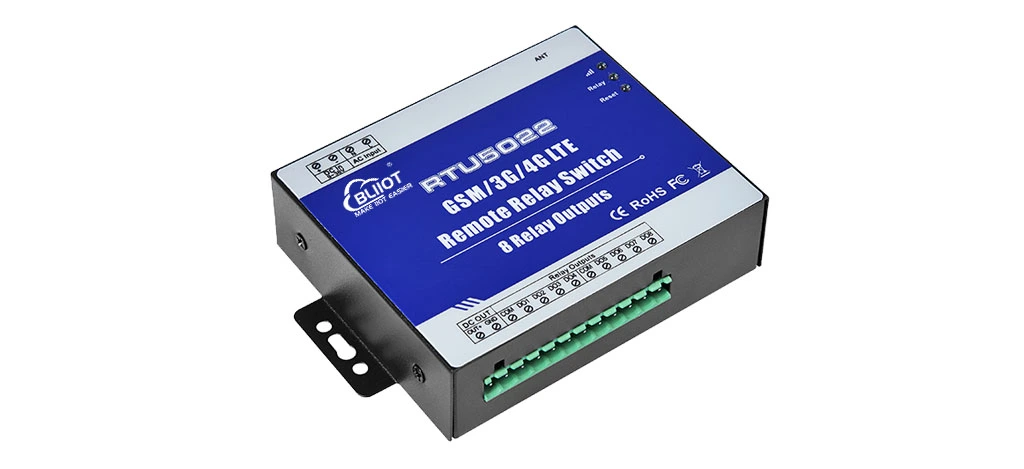

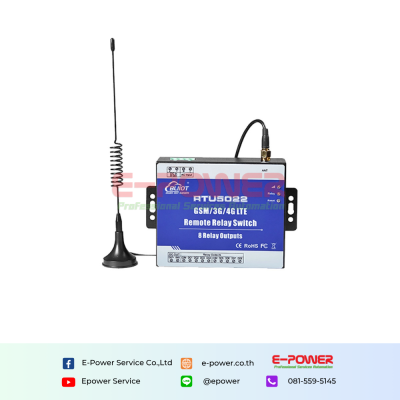

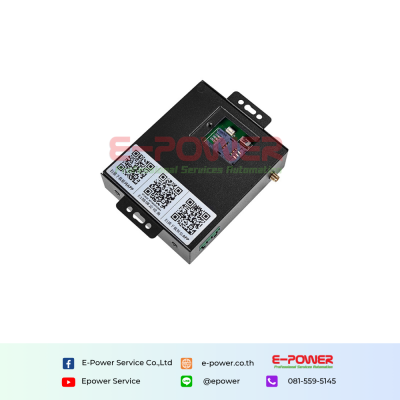

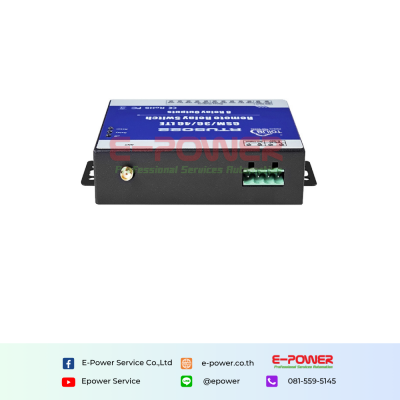

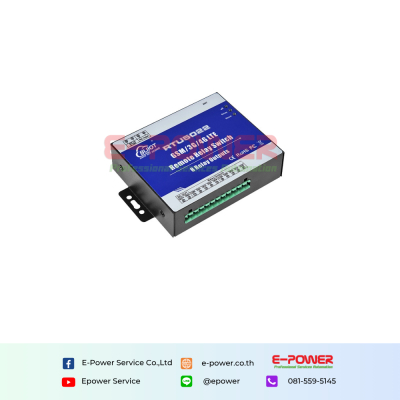

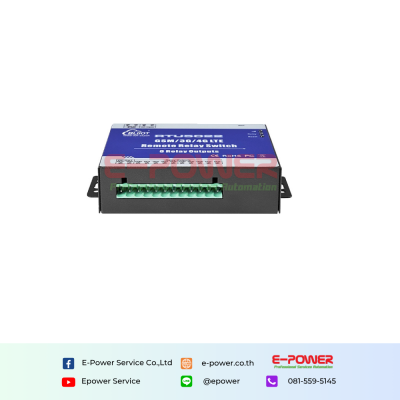

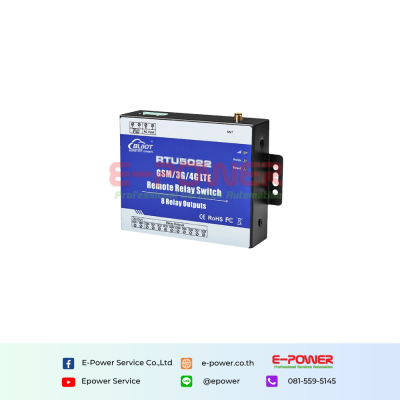

GSM 3G 4G SMS Remote Controller (8 Relay Outputs)

Product Description

The GSM 3G 4G Remote Relay Switch is an industrial class, high reliability, high stability Remote Terminal Unit (RTU).  It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module, equipped 2 Solid Relay inside, can contact to electric device directly, special for remotely switch ON/OFF onsite devices by SMS, APP, Web Server, internet or timers automatically.

The GSM 3G 4G Remote Relay Switch inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.

The GSM 3G 4G Remote Relay Switch inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.

The GSM/GRPS/3G/4G Remote Switches is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically control system. It can be used as a remote switch, and timer switches, it suitable for lots of applications that need remotely switch ON/OFF devices, e.g.: Street Light control, water pump control, motor switch, breaker control, etc.

Key Features

• Can be operated from anywhere, no distance limitation;

• Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;

• 3G UMTS/HSDPA/4G Modules are optional;

• 32 bit MCU, reliable performance with in-built watchdog;

• Support 2/4/8relay outputs,7A@125VAC,5A@125VAC, 20A@14VDC;

• Supports 1 DNS or IP address as server, supports Modbus RTU, TCP/IP protocol over GPRS/3G/4G network;

• Automatically resend the data while communication failure, GPRS failure will alert by SMS text;

• Supports remotely restart the device, and configure it by SMS commands remotely;

• Up to 10 user's phone number to receive daily report SMSand relay status;

• Provides daily report, schedule upload, event upload by the GPRS/3G/4G to monitoring center or by SMS to the user mobile phone directly;

• Support Android/IOS APP, easily & friendly for use/config.

• Wall mount or 35mm standard DIN rail Design, convenient installation;

• Metalliccover, small size, exterior dimension is L105*W88*H30mm.

Typical Application Scenarios

• Street light

• Pump station

• Server room

• Warehouse

• Transformer stations

• BTS room

• Agriculture

• Supervision and monitoring alarm systems, etc.
