GSM 3G 4G LTE Power Status Monitoring Alarm

Product Description

Inquiry Onsite Power Status with a FREE Call from Your Mobile Phone!
Interval Report Power Status to Your Mobile Phone by SMS!
Remote Reset, Remote Reboot, Automatic Reboot Periodicity!
Power Failure with SMS Alert and Siren Sound!
Support Modbus TCP and Modbus RTU over TCP for Cloud Monitoring!

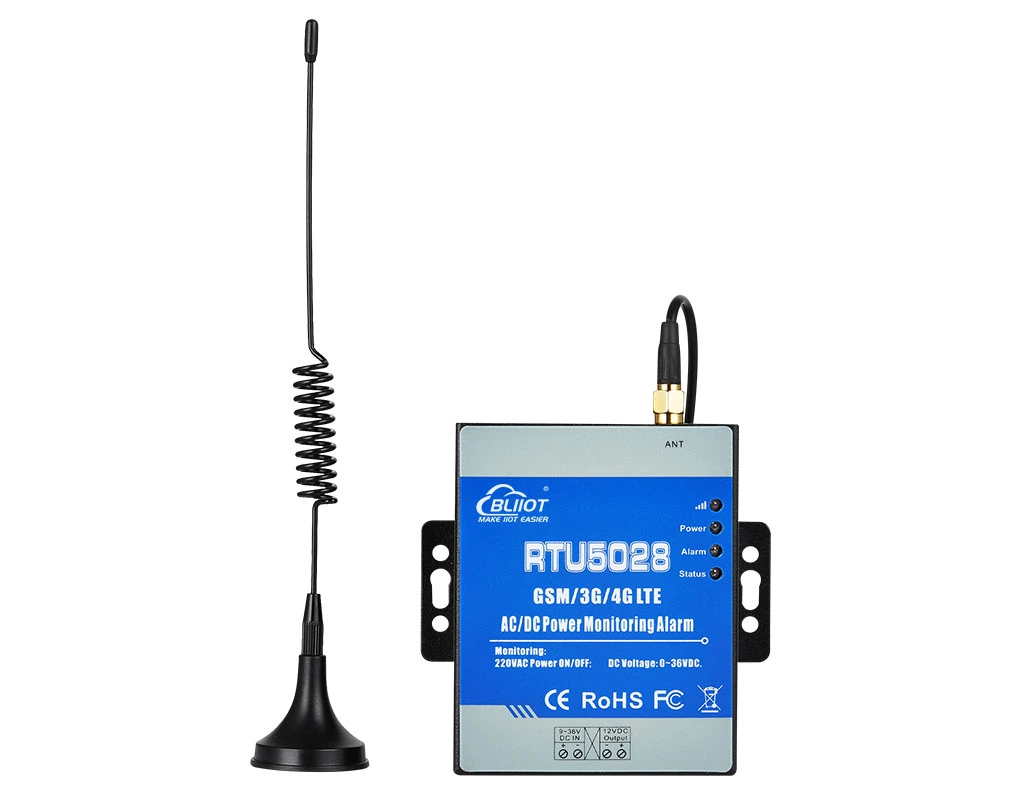

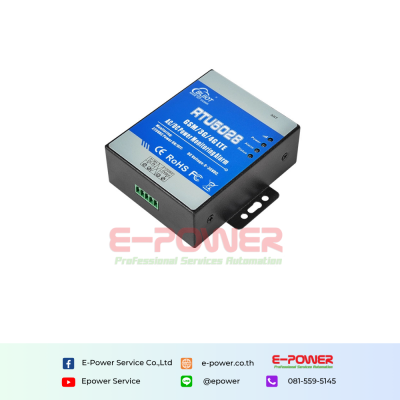

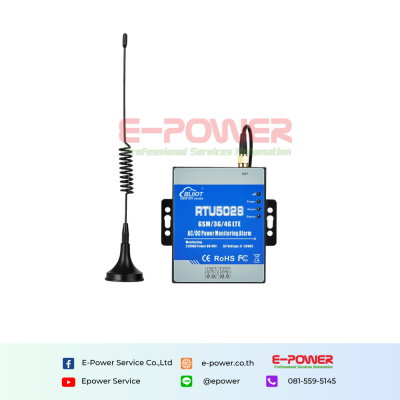

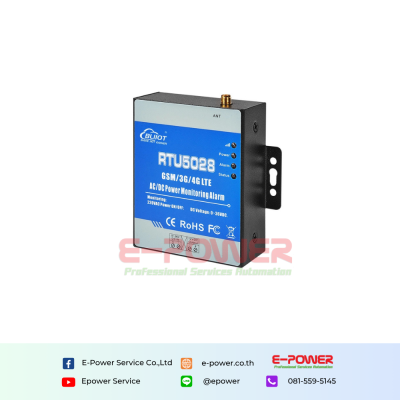

The GSM 3G 4G LTE AC/DC Power Monitoring Alarm is special for remotely monitoring onsite power status through wireless GSM/3G/4G Network. When the AC Power failure or recovery or DC power voltage exceed high threshold or low threshold value, will send SMS alert to upto 10 preset mobile phone immediately.

Just dial from Authorized User number, the GSM 3G 4G LTE AC/DC Power Monitoring Alarm will reject at the first “Ring”, no communication cost, and then return the current power status or voltage. Moreover, it can report onsite power status interval or daily.

The GSM 3G 4G LTE AC/DC Power Monitoring Alarm can be used for chicken house, pig farm, solar power monitoring, DC power voltage monitoring, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory, Library and anywhere that need monitoring power status.

Key Features

• GSM/GPRS/3G/4G network communication, can be operated from anywhere, no distance;

• Multiple applications:temperature,humidity,power supply voltage,analog signal,3 phase power status, single-phase power status, etc.;

• Inbuilt MCU monitoring power supply input voltage value, measure range is 0~36V, no need additional sensor to save cost;

• Up to10 authorized phone numbers, 5 can be used to receive call or SMS,and 5 can be used to call and SMS while alarm occurrence;

• Can set timer report and every x hours automatically send its status/value to the first authorized number;

• Support remotely read historic data via SMS;

• Rechargeablebackup battery inside can last 8 hours;

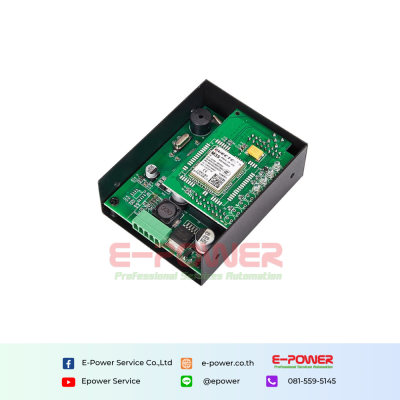

• Modular structure design, replace a module can upgrade the network from 2G to 3G/4G or 3G to 4G;

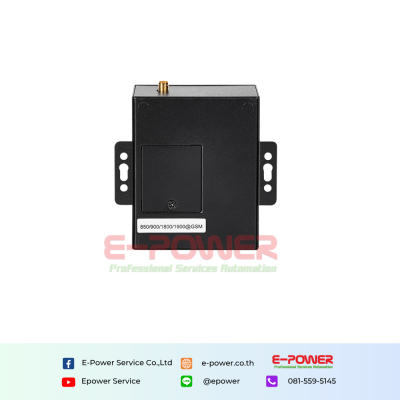

• Compatible wall installation and DIN35mm industrial rail installation;

• Support Modbus RTU Over TCP and Modbus TCP, can be connected to cloud platform.

Typical Application Scenarios

It is especially used in classrooms, public places, hospitals, stations, food warehouses, offices, factories, libraries, laboratories, and any other places that require and support monitoring of temperature and humidity as well as power failure alarms.
