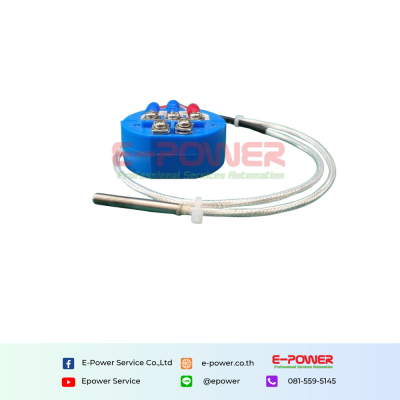

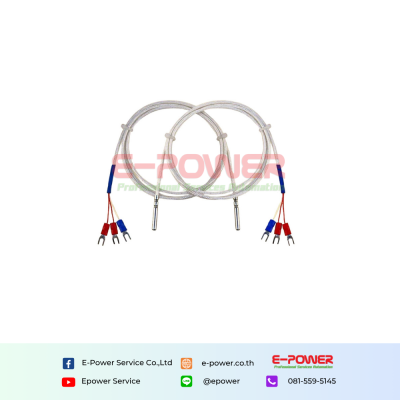

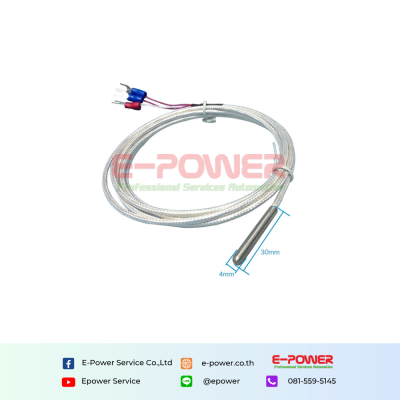

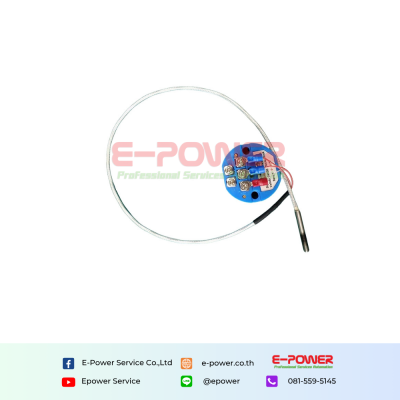

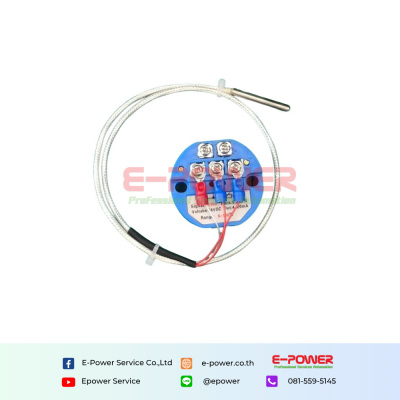

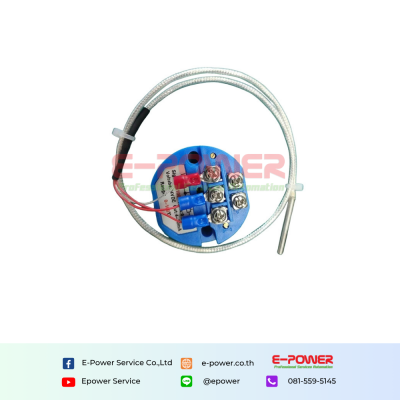

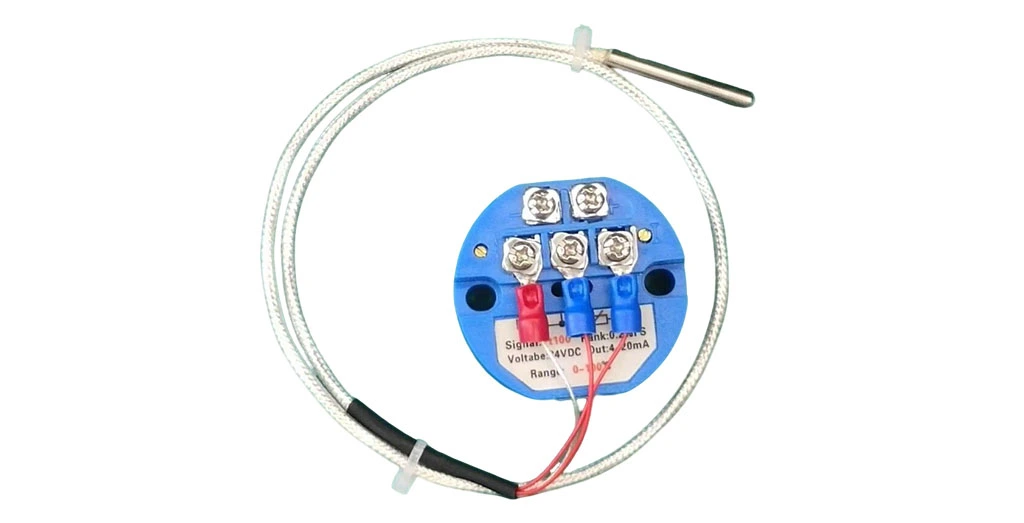

Temperature Transducer (With PT100C adapter)

Product Description

Wide range for measurements from -50~+200!
power reverse polarity protection and overload protection!
Standard 4-20mA output for RTU, PLC and acquisition equipments!

The PT100-x series Temperature transducer is thermal resistance type, output 4~20mA, 2 wired output professional transducer. This Transducer with the highly reverse connect protection.

When the transducer has not connect to the sensor, the output current ≤3.6mA, when the sensor disconnect to the transducer during working, also will output ≤3.6mA; when the sensor’s “+” contact disconnect to transducer, the output currect≤ 25±2mA.

Key Features

• Stability , high precision;

• Directly immerse into the measured medium, very easy to
  install and use;

• Standard 4-20mA output for RTU, PLC and acquisition
  equipments;

• Wide range for measurements from -50~+200.

• With power reverse polarity protection and overload
  Current limit protection .

Typical Application Scenarios

• Industrial Process Control – Monitors liquid/gas temperatures in manufacturing, chemical, and oil & gas industries.

• HVAC & Environmental Monitoring – Measures ambient or equipment temperatures in heating, ventilation, and climate control systems.

• Automation & PLC Integration – Provides 4-20mA signals for PLCs, RTUs, and SCADA systems in automated production lines.

• Food & Beverage Processing – Ensures precise temperature control in storage, pasteurization, and refrigeration.

• Water & Wastewater Treatment – Tracks fluid temperatures in pipelines, tanks, and treatment facilities.

• Energy & Power Systems – Monitors cooling systems, transformers, and heat exchangers in power plants.

• Laboratory & Research Equipment – Used in experiments requiring stable and accurate temperature measurements.
