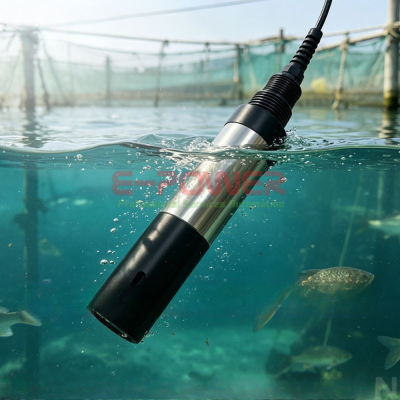

REMOND Optical DO Sensor Replaceable Membrane Head RS485
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
- Easy maintenance: The membrane head is replaceable and easy to maintain
- RS485 Output: Reliable communication for remote monitoring.
- IP68 Protection: Waterproof and dustproof design.Â
- Stainless Steel Construction: Durability and corrosion resistance.Â
- Wide Measurement Range: 0-20mg/L covers various applications.
Product Description

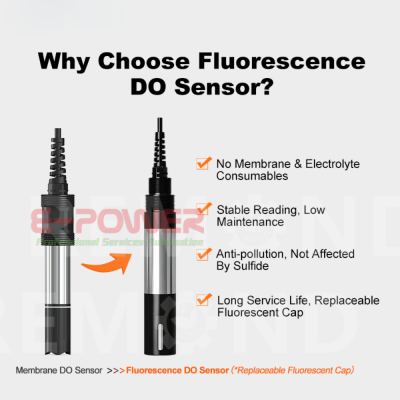

Traditional polarographic membrane DO electrodes require regular replacement of membranes and electrolyte solution, bringing continuous consumable costs and frequent manual maintenance. REMOND optical fluorescence DO sensor adopts fluorescence quenching principle, without electrolyte filling and frequent
membrane replacement. The fluorescent sensing cap can be replaced independently after aging, which greatly reduces your long-term operation cost and maintenance workload, With RS485 Modbus RTU signal output, IP68 waterproof grade, 316 stainless steel housing, ideal for long-term continuous online water quality monitoring projects. Widely used in aquaculture, sewage treatment, environmental online water quality monitoring.
| MODEL: RMD-ISDTY-R | |
| Measuring Range : | 0 ~ 20mg/L (ppm) |
| Measurement Accuracy : | Âą0.3mg/L |

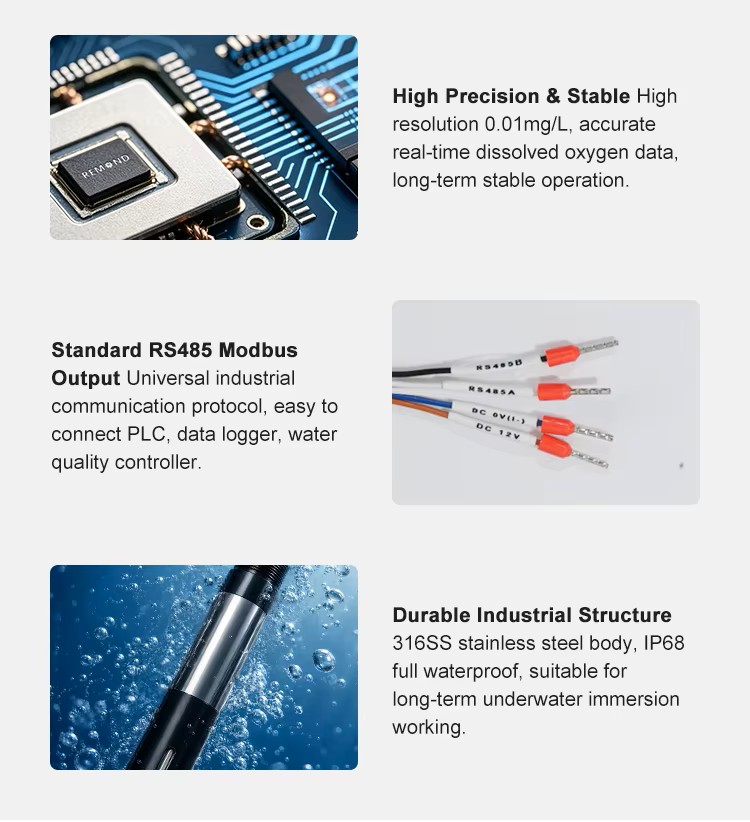

| Resolution : | 0.01mg/L |
| Temperature Range : | 0 ~ 60.0°C |
| Pressure Range : | 0 ~ 2 bar |
| Principle : | Fluorescence Quenching Method |
| Housing Material : | 316 Stainless Steel + POM Plastic |
| Power Supply : | DC 12V / DC 24V |

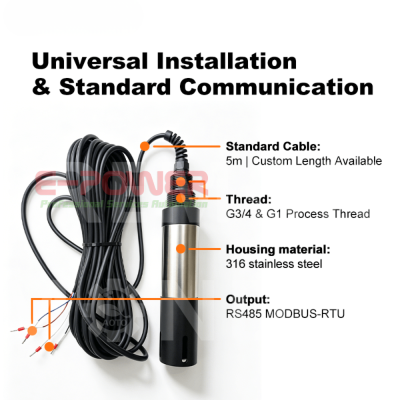

| Signal Output : | RS485 MODBUS-RTU Protocol |

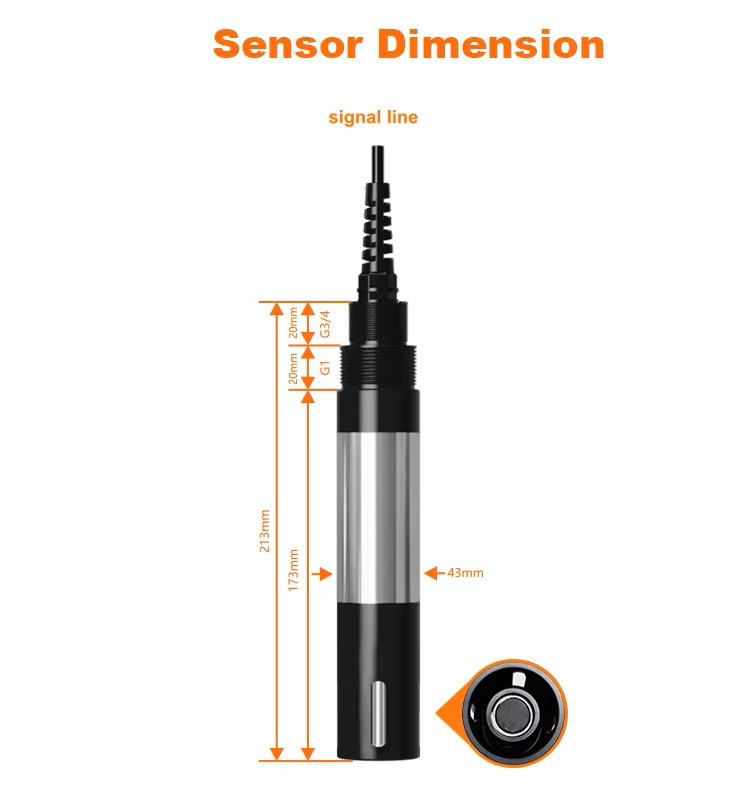

| Installation Thread : | G3/4 , G1 External Thread |

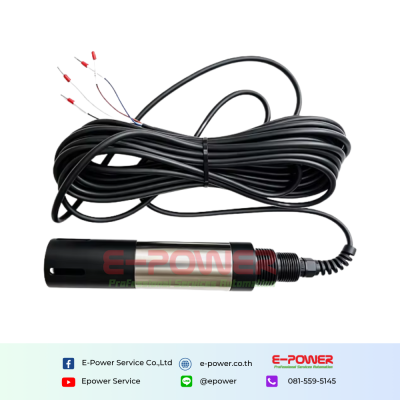

| Standard Cable Length : | 5 meters, customizable |
| Protection Level : | IP68 Waterproof & Dustproof |
| Calibration Mode : | Zero Oxygen Calibration / Full Air Calibration |

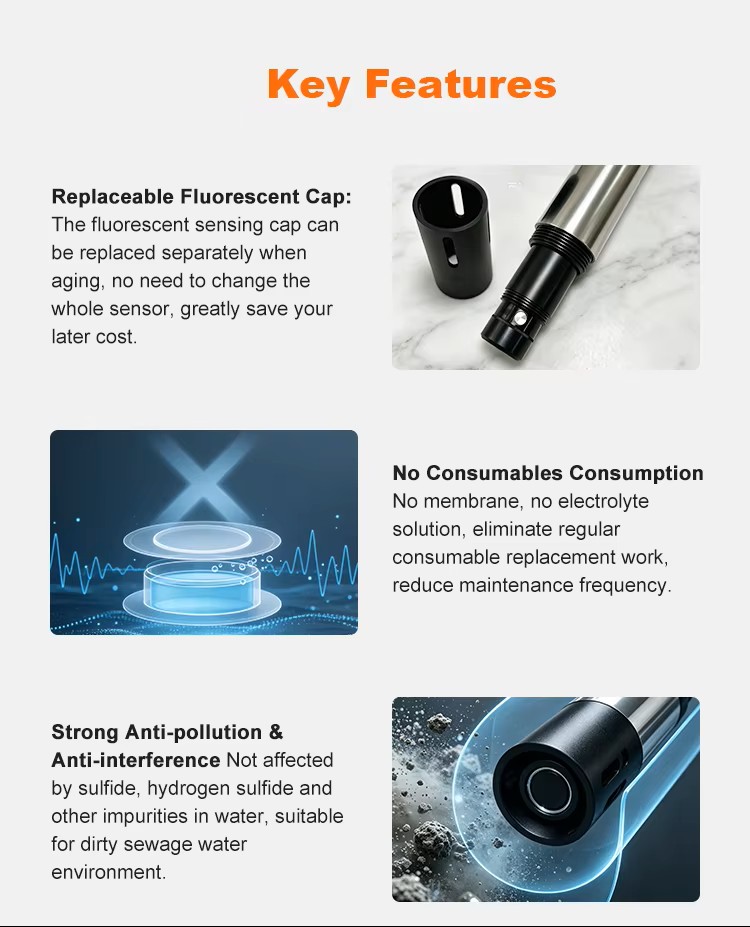

| Core Feature : | Separately Replaceable Fluorescent Cap |
