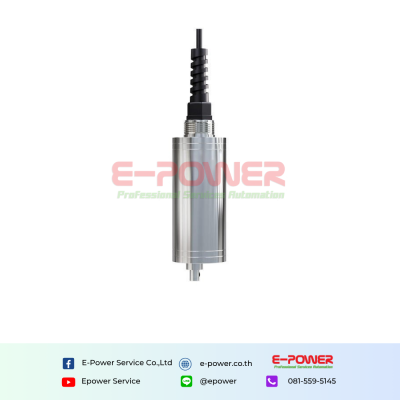

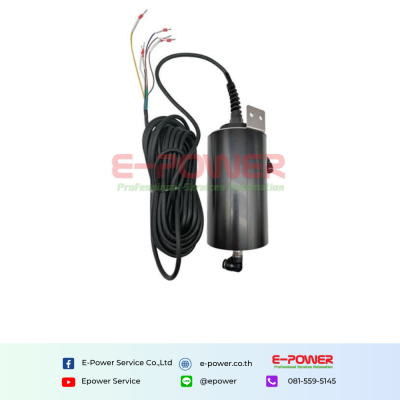

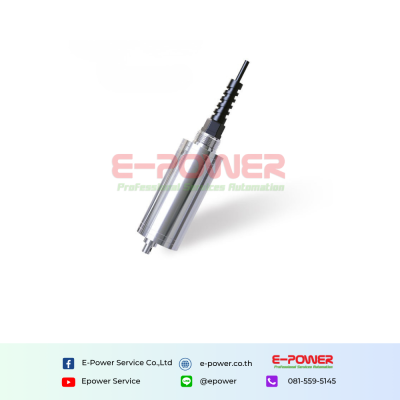

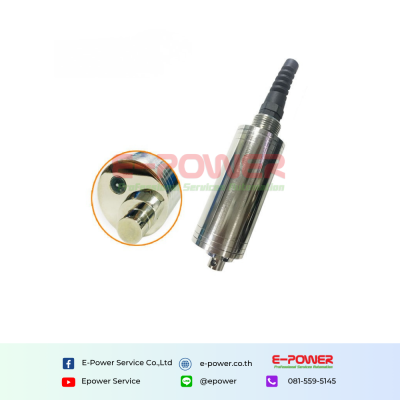

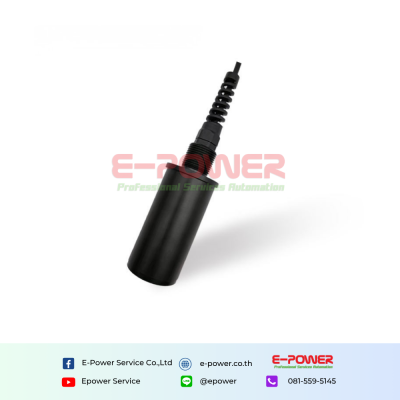

REMOND Optical Infrared Turbidity Sensor RS485 4-20mA

REMOND Optical Infrared Turbidity Sensor RS485 4-20mA

คำอธิบายสินค้าแบบย่อ

The turbidity sensor adopts the principle of 90° scattered light.The infrared light sent by the transmitter on the sensor is absorbed,
reflected and scattered by the measured object during the transmission process, and only a small part of the light can irradiate the
detector. The concentration of the measured sewage has a certain relationship, so the concentration of the sewage can be
calculated by measuring the transmittance of the transmitted light.

แบรนด์: Remond

หมวดหมู่: Remond Sensor, Digital Sensor

รายละเอียดสินค้า

Product Description

90° scattered light principle
Power supply DC9-30V
4-20mA output signal
Support RS-485, Modbus/RTU protocol
IP68 protection, waterproof
Quick response, high precision
7*24 hours continuous monitoring
Easy installation and easy operation
Different measuring range can meet different requirements

Digital Turbidity Sensor Specification
Model	RMD-ISST205	RMD-ISST105	RMD-ISSP105
Measuring range	0...400NTU	0...4000NTU	0...4000NTU
Principle	90° scattered light	90° scattered light	90° scattered light
Accuracy	±5%FS	±5%FS	±5%FS
Resolution	0.01%	0.01%	0.01%
Temperature range	0...60°C	0...60°C	0...60°C
Calibration method	Formazin Solution	Formazin Solution	Formazin Solution
Power supply	DC12V,DC24V	DC12V,DC24V	DC12V,DC24V
Output signal	RS485, 4-20mA	RS485, 4-20mA	RS485, 4-20mA
Shell material	POM	Stainless steel	POM
Pressure range	0...2bar	0...3bar	0...2bar
Thread	NO	G3/4	G3/4
Electrical connection	Pin type	Pin type	Pin type

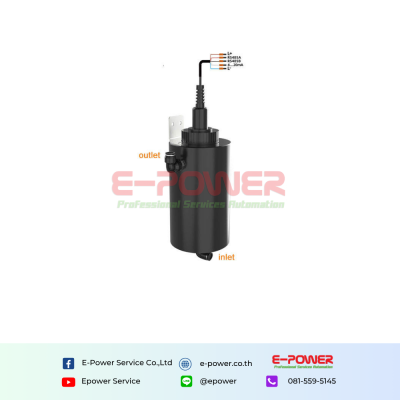

Installation	Flow cell	Immersion type	Immersion type
Cable length	5m or customize	5m or customize	5m or customize
Protection grade	IP68	IP68	IP68
Application	Tap water	River and lake	Seawater
