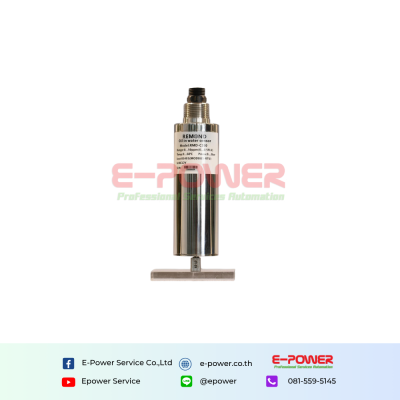

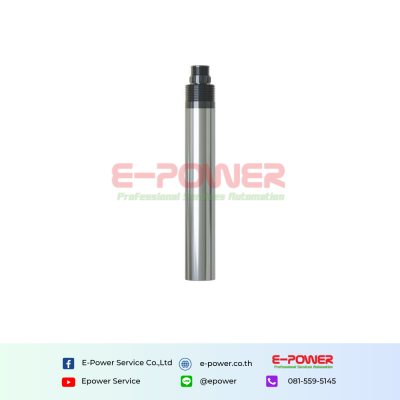

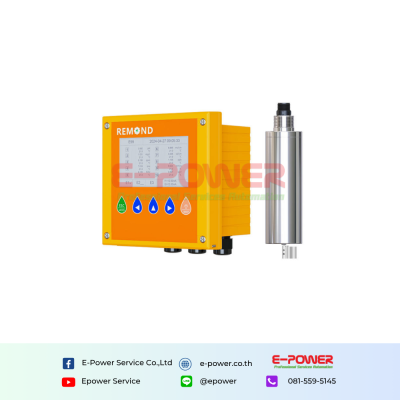

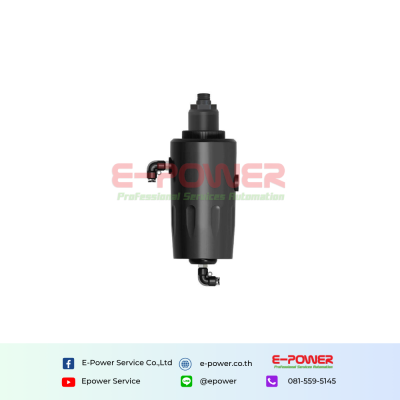

REMOND Auto Self-cleaning Brush Oil Water Sensor Analyzer Ultraviolet Fluorescence Method RS485
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

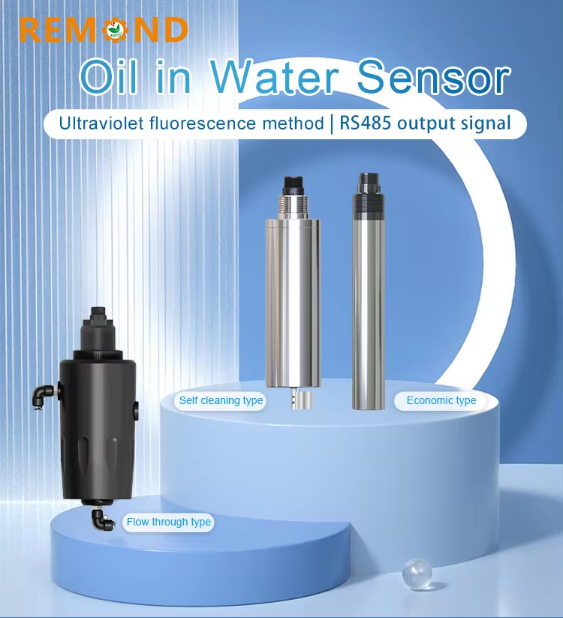

The online oil in water sensor adopts the principle of ultraviolet fluorescence method. The fluorescence method is more efficient and faster, with better repeatability, and can be monitored online in real time. Self-cleaning brush can be used to effectively eliminate the influence of oil on the measurement. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations and other water quality monitoring scenarios.
āđāļāļĢāļāļāđ: Remond
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Product Description
- 1.Digital sensor, RS485 output, support MODBUS
- 2.With automatic cleaning brush to eliminate the impact of oil on the measurement
- 3.Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques
- 4.Unaffected by suspended solids in water

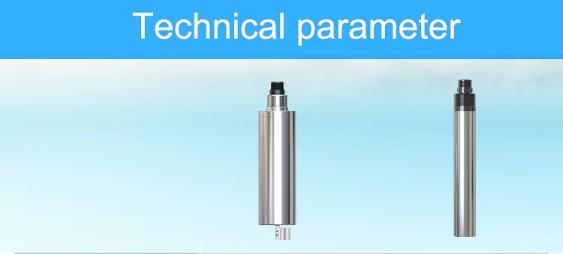

| Oil in water sensor technical data | |
| Principle | Ultraviolet fluorescence method |
| Measuring range | 0...50ppm or 0.40FLU |
| Resolution | 0.01ppm |
| Accuracy | Âą5%F.S. |
| The detection limit | According to the actual oil sample |
| Linearity | RÂē>0.999 |
| Deepest depth | underwater 10 meters |
| Temperature range | 0 ~ 50°C |
| Power Supply | DC12V, current <50mA (when there is no cleaning brush) |
| Output signal | RS485, MODBUS protocol |
| Installation | Submersible type |
| Shell material | stainless steel |
| Cable length | 5M (default) |
| Self-cleaning brush | Yes |
| Protection grade | IP68 |

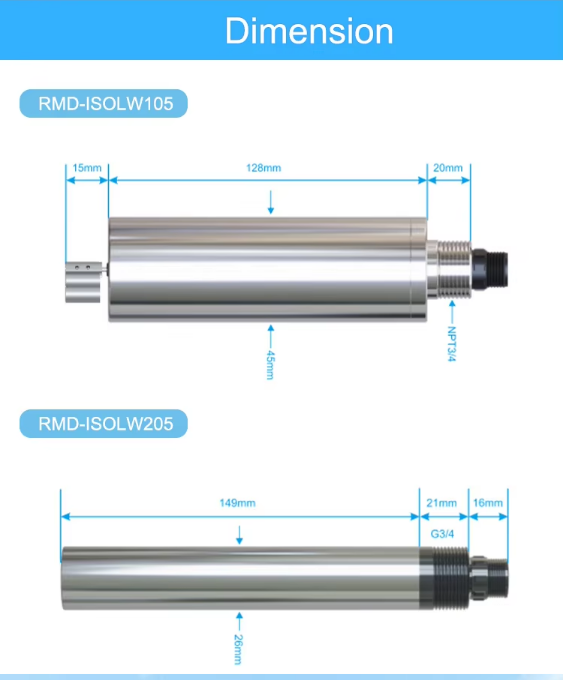

| Model | RMD-ISOLW105 | RMD-ISOLW205 |
| Measuring range | 0...50ppm or 0...40FLU | 0...50ppm or 0...40FLU |
| Principle | Ultraviolet fluorescence method | Ultraviolet fluorescence method |
| Resolution | 0.01ppm | 0.01ppm |
| Accuracy | Âą5%FS | Âą5%FS |
| The detection limit | According to actual oil sample | According to actual oil sample |
| Linearity | RÂē>0.999 | RÂē>0.999 |
| Deepest depth | Underwater 10 meters | Underwater 10 meters |
| Temperature range | 0...50°C | 0...50°C |
| Power supply | DC12V or DC24V | DC12V or DC24V |
| Output signal | RS485 MODBUS | RS485 MODBUS |
| Self-cleaning brush | YES | NO |
| Shell material | Stainless steel | Stainless steel |
| Thread | NPT3/4 | G3/4 |
| Calibration | Two-point calibration | Two-point calibration |
| Cable length | 5 meters (default) or customized | 5 meters (default) or customized |
