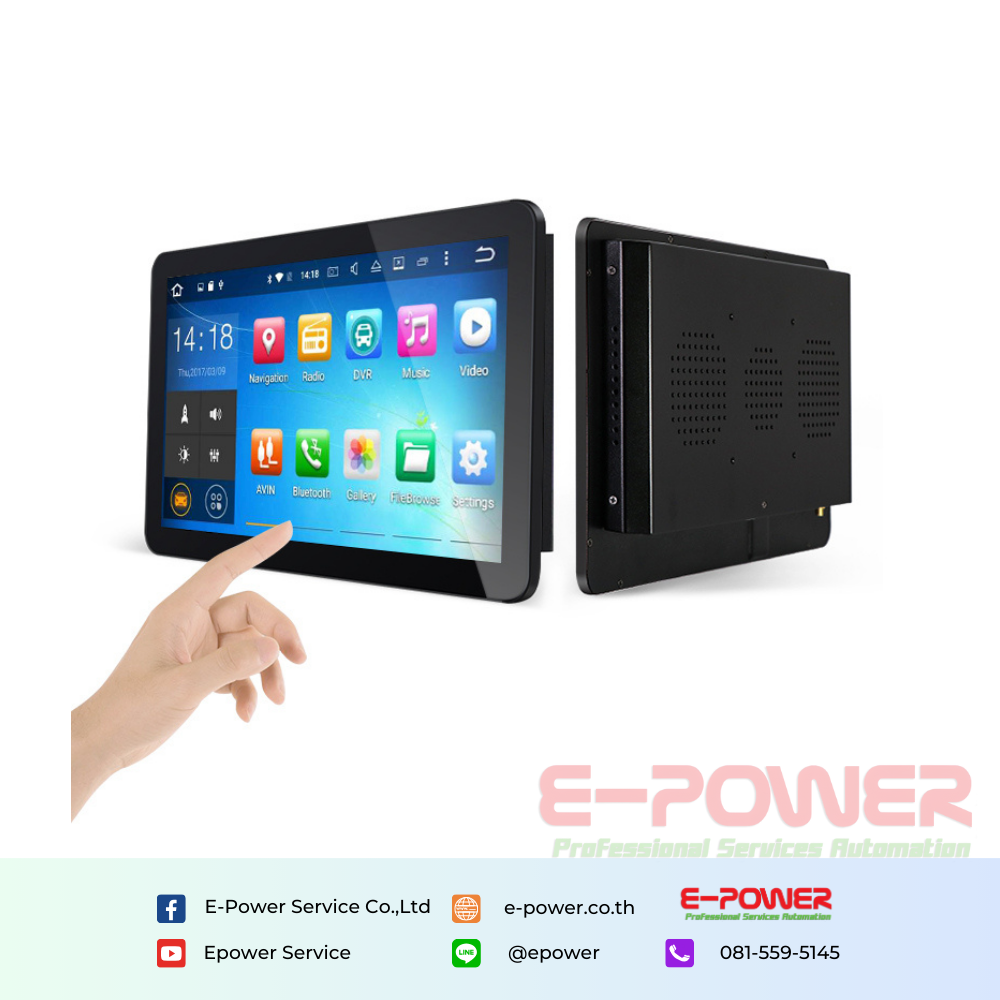

TD156D-15.6 inch Capacitive Touch Panel PC
Quantity
Product description
TD156-15.6 inch touch monitor/panel pc black white
SKU:TD156Key Features:

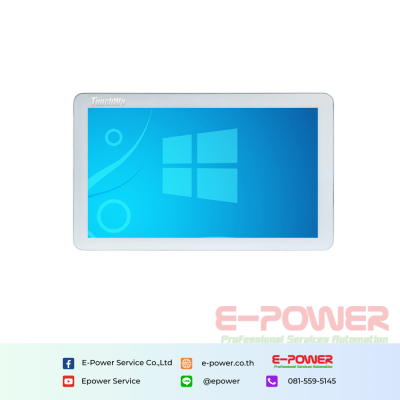

- TD156C is for Windows os and linux os inbulit as all in one
- TD156D is for touch monitor only and android os inbulit
- Full HD 1920*1080
- USB ，Com RS232 RS485，1000M Dual LAN ports， Wifi,
- 24V power in
- 4G/5G module

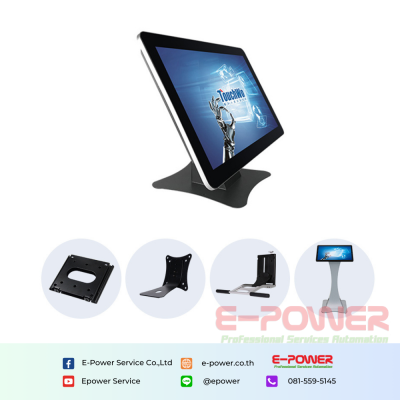

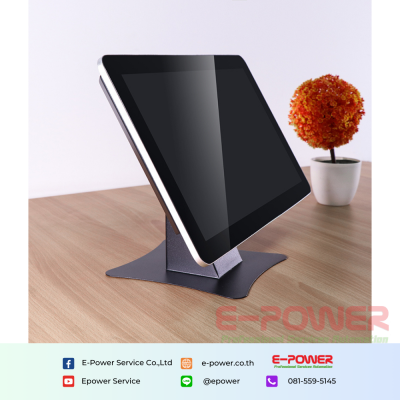

- VESA wall mount bracket or desk stand bracket
- Flexible customisation
- The specifications can be viewed on Rescources below
Technical Parameters
System
| Output (Android PC) | HDMI/VGA output inside |
| Input（Touchscreen monitor） | VGA、HDMI input |
| Touch | PCAP,10 points touch, |
| Display | HDMI 1080 |
| Video decoding | (fFull HD) MPEG、H.264 etc |
| Design | alloy aluminum frame,metal sheet design, round corner |
| System Integration | PC,Display ,touch, button switch |
LCD Panel
| Screen Type | A-Si,TFT-LCD, back-light, A-type |
| Size | 15.6 inch (16:9) |
| Display area | 345.2（W）* 194.6（H）mm |
| Resolution | 1920*1080 |
| Brightness | greater than or equal to 250 cd/㎡ |
| Contrast ratio | greater than or equal to 1000：1 |
| Response time | time 25(Typ.)(Tr/Td)ms |
| Number of colors | 16.7M < EDP 30 Pins > |
| Refresh rate | 60Hz |
| Viewing angle | 85/85/85/85 (Typ.) CR10) left/right/up/down |
| Life time | 15000 hours |
Touch Panel
| Touch technology | Capacitive touch screen | ||
| Response time | 5ms | ||
| Touch points | 10 points standard, zoom in/ zoom out options | ||
| Touch effective recognition | 1.5 | ||
| Scanning Frequency | 200Hz | Scanning accuracy | 4096×4096 |
| Communications | USB 2.0,3.0 | Theoretical Clicks | 50 Millions |
| Firmware | Upgraded by USB | Driver | NO |
| Working Current/Voltage | 180Ma/DC+5V±5% | ||
| Surface Hardness | Chemically tempered, Mohs class 7 explosion-proof glass | ||
| OS | Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP | ||
Power supply parameters
| Input Power | 110－240V AC 50/60Hz | ||
| Output power | DC 12V 3A | ||
| Consumption for Touch monitor | ﹤20W | ||
| Consumption for Touch Android | ﹤36W | ||
| Standby power consumption | ﹤0.5W | Speaker | 8Ω3w |
Working environment
| Operating temperature | 0°C-50°C |
| Working humidity | 10% - 80% |
| Storage temperature | -5°C-60°C |
| Storage humidity | 0% - 70% |
| Altitude | Under 5000 meters |
CPU
| Project | Touchscreen Monitor | Android | CustomDesign |
| Chip | An external host is required. For detailed parameters, please refer to 3.1 | Octa-core RK3368 Hexa-core RK3399 Quad core RK3288 Quad core RK3568 | YES |
| Ram | 2gb/4gb | ||
| Hard Disk | 8gb | ||
| Graphics | 16/32G | ||
| Android HD | |||
| Definition | 720P/1080P | ||
| Operating System | Android 7.1/9.0 for rk3288/rk3399 Android 11 for rk3568 | ||
| NIC | Integrated 10/100 / 1000M adaptive network card, wireless network card 802.11a / b / g/ n | ||
Interfaces for Touchscreen Monitor
| DC Jack | 2.1mm | Audio | 1 |
| VGA | 1 | HDMI input | 1 |
| USB touch port | 1 | ||
Interfaces for Android Touch PC
| DC Jack | 2.1mm | Headphone | 1 |
| RJ45 | 1 | HDMI | 1 |
| USB(with OTG) | 2 | WIFI | 1 |
| TF /SD card slot | 1 | TTL/232/485 options | |

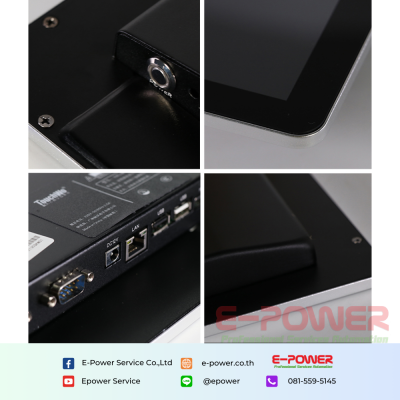

Interfaces for windows Touch PC
| DC Jack | 2.5mm DC12V*1 | RJ45 | 1 |
| VGA | 1 | HDMI | 1 |
| USB | 4 | Headphone | 1/1 |
| WIFI | 1 | TTL/232/485 options | |
Accessories
| Instructions | *1 |
| AC Power line | *1 |
| Power Adapter | *1 |
| Wall mount/bracket | *1 |
| Warranty Card | *1 |
| Certificate | *1 |
| Cable | HDMI *1; USB*1 (touch monitor only) |
| WIFI | *1(Pc/Andriod) |

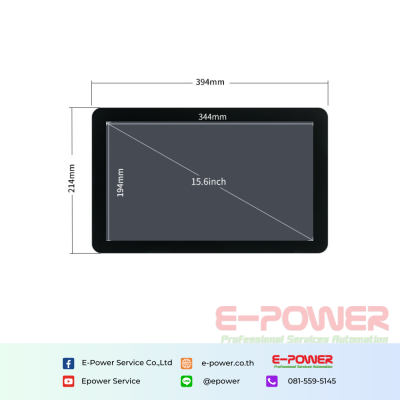

Mechanical Parameters
| Size | 15.6" |
| Display size | 345.2 * 194.6 mm （16：9） |
| Machine size (W * H *T) | 393.5（W）×240.5（H）×34.9（T）mm |
| Package size (W * H *T) | 525（W）×315（H）×105（T）mm |
| Mounting bracket | Wall mounted |
| VESA hole | 100×100 mm |
| Wall screw specifications | M4 |
| Net weight | 1.65KG |
| G.W (packaging) | 3.07KG |
