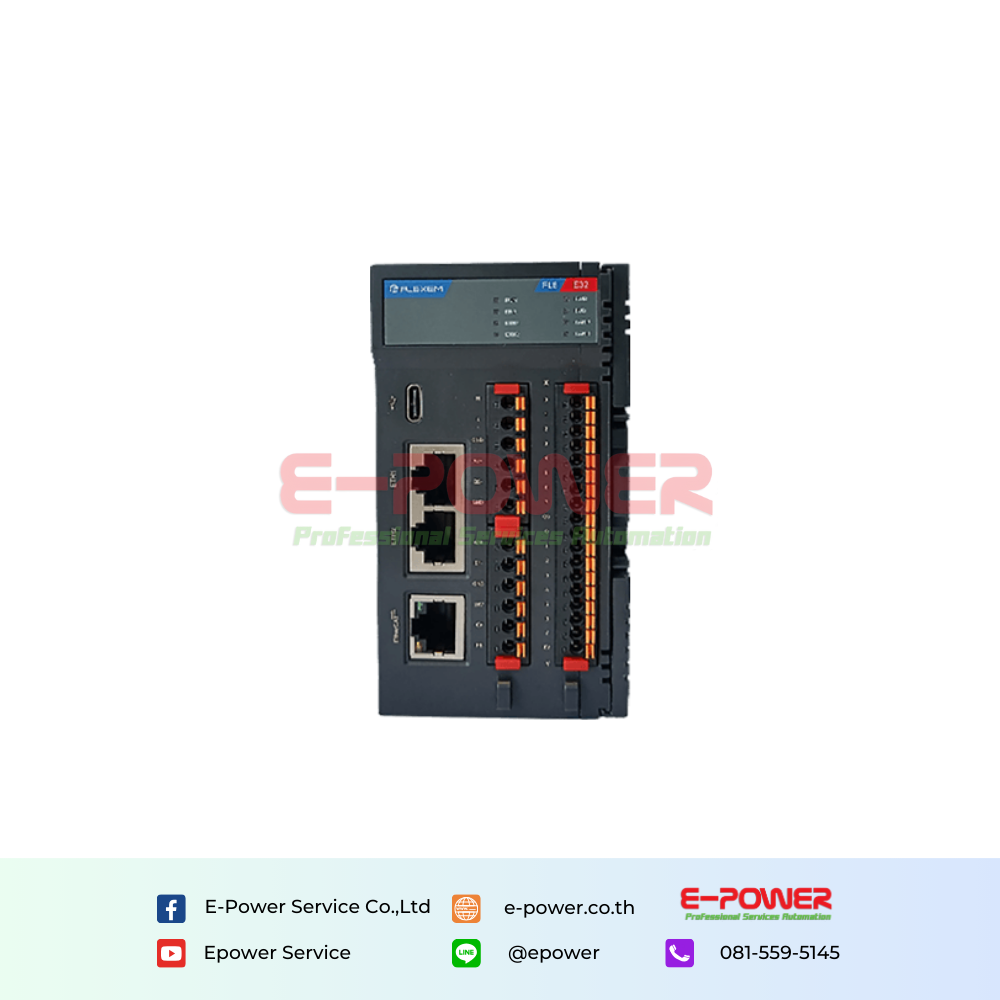

Flexem FL8-E32-D

Input Points: 8 Output Points: 8 High-speed Pulse Input: NA High-speed Pulse Output: NA

Quantity

Brands :Flexem

Product description

Specs

Input Points	8
Output Points	8
High-speed Pulse Input	NA
High-speed Pulse Output	NA
Left Expansion	Support left expansion (4G Cat1 or WiFi wireless, serial port)
Right Expansion	Max 31
Other connector	USB flash disk (TYPE-C) program download, data storage
Serial Communication	2*RS485
CAN communication	1*CANOPEN
Ethernet	Support (EtherCAT master station * 1, support up to 72 slave stations)
RTC	Built-in
CPU	4 core 1GHz
Memory	2GB
HD	8GB
Motion Axis	32 Axis of EtherCAT+Pulse Axis
Pulse Axis	6 Axis 200KHz
Ethercat	Available
Program Storage	32M
User Data Storage	128M
Data Storage	128KBytes in area I, 128KBytes in area Q, 512KBytes in area M, 800KBytes in retain area, other variables: unlimited
Motion Function	CAM, Gear, linear interpolation, circle interpolation
HSC	7 pionts 200KHz
Programming Language	Codesys 3.5.19.0(IL、LD、ST、SFC、CFC、FBD)
Bus Protocol	EtherCAT、Modbus-TCP、Canopen、Modbus-RTU、OPC UA

Rated Power	24VDC
Voltage Range	19.2V~28.8VDC
Power Interruption Duration	10 ms at 24V DC
Maximum Peak Current	3A
Maximum Power Consumption	6.5W

OperatingTemperature	-10~60°C
Storage Temperature	-20~70°C
Relative Humidity	5~95%RH (non-condensing)
Class of Pollution	2（IEC60664）
Class of Protection	IP20
Coating	Coated protection, dry film thickness 20μm; reinforced dry film thickness 40μm
Altitude	Operation：0m~3,000m ; Transportation：6,000m
Seismic Performance	5~13.2Hz Amplitude 7mm, 13Hz~100Hz Acceleration 2G, 20 times each in X, Y and Z axes
Impact Performance	Semi-positive sine wave, acceleration 15G, duration 11ms, 6 times in each of the X, Y and Z directions

Enclosure Material	Engineering plastic
Dimensions	55mm ×110mm × 75mm
