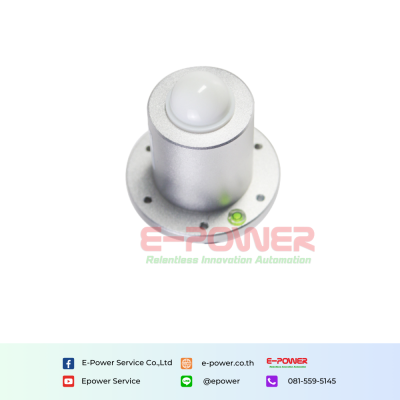

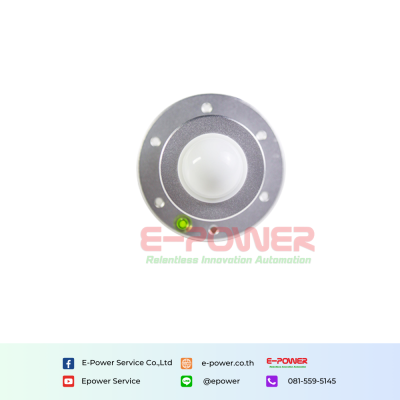

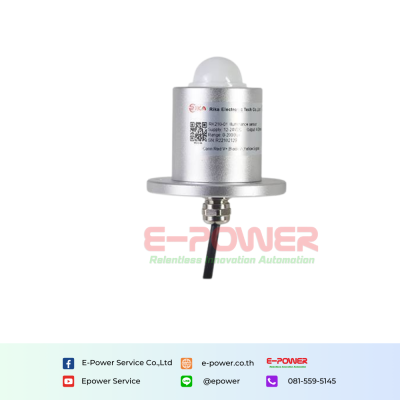

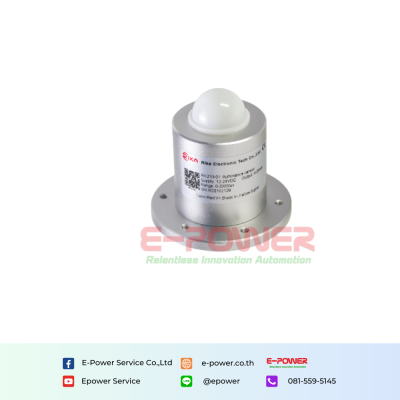

Rika RK210-01 Solar Illuminance Sensor
Product description
Download
PRODUCT DESCRIPTION
Rika RK210-01 Illuminance Sensor is very sensitivity and can detect weak light, has a wide measuring range, high accuracy, good waterproof performance, easy to use, easy to install. Its suitable for most applications, especially in agricultural greenhouses, urban lighting and other places.
SPECIFICATIONS
| Item | Specification |
| Range | 0-100lux,0-2000lux,0-20klux,0-200klux optional |
| Spectral range | 380-780nm |
| Supply | 5VDC,12-24VDC |
| Output | 4-20mA,0-5V,0-10V,RS485 |
| Accuracy | ±5%FS |
| Response time | 1s |
| Temperature effect | ±0.2%/°C |
| Repeatability | <1%FS |
| Operating temperature | -40°C-+75°C |
| Weight(unpacked) | 170g |
| Shell material | ABS,metal shell can be customized |
| Dimension | 117*86*56mm |
