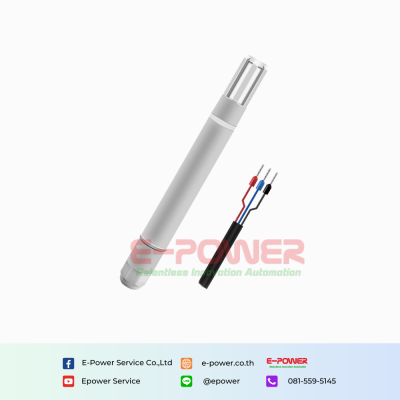

Rika RK330-01 Customized Atmospheric Temperature, Humidity & Pressure Sensor
Product description
Download
PRODUCT DESCRIPTION
RK330-01 Customized Atmospheric Temperature, Humidity & Pressure Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.
SPECIFICATION
| Item | Technical Specification | ||
|---|---|---|---|
| Temperature | Humidity | / | |
| Range | -40~+80°C | 0-100%RH | / |
| Resolution | 0.1 °C | 0.5%RH | / |
| Accuracy | ±0.5°C | ±3%RH | / |
| Supply | 12VDC | ||
| Output Signal | SDI-12 | ||
| Current Consumption | 5mA | ||
| Operating Temperature | -40°C~+80°C | ||
| Ingress Protection | IP65 | ||
| Storage | 10-60°C@20%-90%RH | ||
| Response time | 20 | ||
| Probe material | ABS | ||
| Radiation Shield(optional) | RK95-01,11 plates, U-bolt for dia 25.4mm tube. | ||
* Analog output only is proper for one or two measurement parameters.
