Borunte BRTIRUS1820A Useful Industrial General Robot
MODEL : BRTIRUS1820A
PRODUCT DETAILS

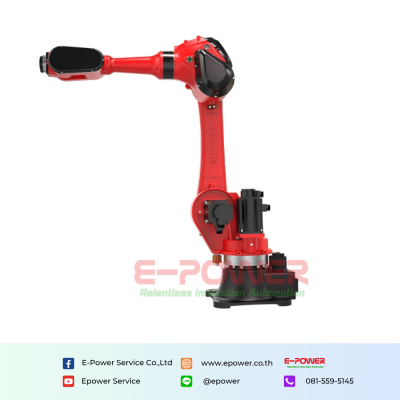

BRTIRUS1820A is a six-axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. The maximum load is 20kg and the maximum arm length is 1850mm. Lightweight arm design, compact and simple mechanical structure, in the state of high speed movement, can be carried out in a small work place flexible work, meet the needs of flexible production. It has six degrees of flecibility. Suitable for loading and unloading, injection detection etc. It is suitable for injection molding machine range from 500T-1300T. The protection grade reaches IP54 at the wrist and IP40 at the body. The repeat positioning accurancy is ±0.05mm.
Main Specification
Arm Length (mm) : 1850
Repeatability (mm) : ±0.05
Loading Ability (kg) : 20
Power Source (kVA) : 5.87
Weight (kg) : About 230
| Item | Range | Max.speed | |
| Arm | J1 | ±155° | 110.2°/s |
| J2 | -140°/+65° | 140.5°/s | |
| J3 | -75°/+110° | 133.9°/s | |
| Wrist | J4 | ±180° | 272.7°/s |
| J5 | ±115° | 240°/s | |
| J6 | ±360° | 375°/s | |
Applications of Useful Industrial General Robot
(1) Material handling and stacking
(2) Packaging and assembly
(3) Grinding and polishing
(4) Laser welding
(5) Spot welding
(6) Bending
(7) Cutting / deburring
Servo motor
Absolute value technology is used in the servo motor. Its primary attributes are:
1) Accuracy: achieve closed-loop control of position, speed, and torque; solve the issue of stepping motors being out of step;
2) Speed: The rated speed often reaches 20003000 rpm with good high-speed performance;
3) Flexibility: It can sustain loads that are three times the specified torque and has good overload resistance. It is especially useful for situations requiring rapid starts and sudden changes in load;
4) Stable: suited for situations requiring high-speed responses while operating at low speed;
5) Timeliness: Motor acceleration and deceleration have quick dynamic reaction times, often in the range of tens of milliseconds;
6) Comfort: There is a considerable reduction in noise and fever.
Automated manufacturing six-axis universal industrial robots can complete repeated, very accurate, and swift operations, enhancing the productivity and output of manufacturing lines. They are capable of carrying out a variety of operations, including assembling, welding, spraying, handling, etc., without the assistance of many humans.
