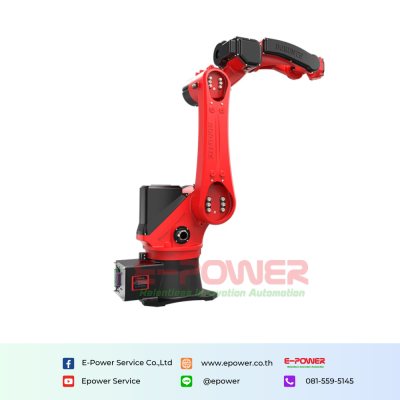

Borunte BRTIRWD1506A Convenient Six Axis Welding Robot

Borunte BRTIRWD1506A Convenient Six Axis Welding Robot

Constructed from a volumetrically tiny, lightweight, and compact material 1600mm maximum arm length, 6KG maximum load Cost-saving and efficient

Categories : Borunte Robot , Industrial Robot

Brands :BORUNTE

Product description

MODEL : BRTIRWD1506A

PRODUCT DETAILS

BRTIRWD1506A is a six-axis robot developed by BORUNTE for the development of the welding application industry. The robot has compact structure, small volume and light weight. The maximum load is 6kg and the maximum arm length is 1600mm. The wrist applies hollow structure with more convenient trace and flexible action. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accurancy is ±0.05mm.

Main Specification

Arm Length (mm) : 1600

Repeatability (mm) : ±0.05

Loading Ability (kg) : 6

Power Source (kVA) : 4.64

Weight (kg) : About 166

Item		Range	Max.speed
Arm	J1	±165°	163°/s
	J2	-100°/+70°	149°/s
	J3	±80°	223°/s
Wrist	J4	±150°	169°/s
	J5	±110°	270°/s
	J6	±360°	398°/s

Product Features

It adopts the servo motor with harmonic reducer structure, with small volume, large working range, fast speed and high precision.
The handheld dialogue operator of the control system is simple and easy to learn, which is very suitable for production.
The robot body adopts partial internal wiring, which is safe and environmentally friendly.

Advantages of Convenient Six Axis Welding Robot

1. Boost production effectiveness
2. Improving the quality of the welding process
3. Increasing worker safety
4. Flexible adaptability to diverse production
5. Cost-saving
Application Environments of Convenient Six Axis Welding Robot
1. Laser welding
2. Spot welding
3. Arc welding

Reducer

RV Reducer and harmonic Reducer are the reducers utilized on the robot.
Harmonic reducer drive's key characteristics are:
1) There is a high transmission speed ratio. The single-stage harmonic gear transmission has a speed ratio range of 70320.
2) Strong stiffness and high bearing capacity.
3) Excellent transmission precision. Only around one-fourth of a typical cylindrical gear transmission's inaccuracy is caused by the transmission. Small transmission clearance, no backlash engagement, appropriate for rotation in reverse.
4) Excellent transmission performance and fluid motion. (up to 69% - 96%).
5) Easy installation, few parts, and simple construction.
6) Compact and lightweight.
7) It has the ability to communicate movement to a small area.
