CE100 Series
CE100 series variable frequency driver is a special model developed for the electronic control of cargo construction lifts. The system integrates the functions of frequency converter, wireless video surveillance, wireless voice intercom, wireless remote control, logic control unit, brake control unit and weight limiter in one, and can choose three installation methods: wall hanging, semi-embedded and fully embedded.
It has the advantages of comprehensive functions, stable performance, beautiful appearance, easy installation and maintenance, and provides customers with a set of high-performance and complete solutions.
Product Advantage
01 Wireless video surveillance
For the first time in the industry, fisheye camera is used, and there is no dead Angle in the elevator cage monitoring;
02 Automatic leveling function
Reduce the work intensity of the operator driver, automatically run in place after entering the floor, and the level position is accurate (<5mm);
03 Excellent performance
After meeting the operating conditions of the lift, press the floor caller of the corresponding floor, the lift will automatically run to the floor, the worker will close the discharge door after handling thingd, press the floor caller of the floor, the lift will automatically run to the first floor.
Basic Wiring Diagram
Complete System Composition
Product Parameter

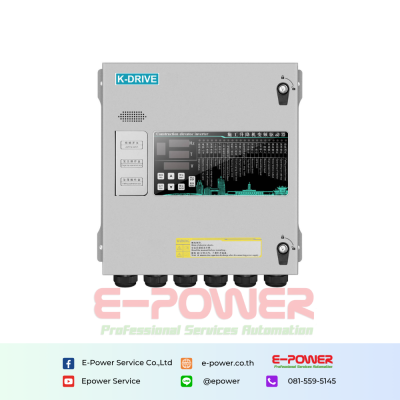

CE200 Series
CE200 series variable frequency driver is a special model developed for the electric control of construction lifts. The system integrates the functions of frequency converter, brake unit, logic control unit, brake control unit and weight limiter in one, and can choose three installation methods: wall hanging, semi-embedded and fully embedded, with comprehensive functions, stable performance, beautiful appearance, easy installation and maintenance. To provide customers with a set of high-performance, complete solutions.
Rich door panel display
Operating frequency and load information are displayed in real time on the door panel, and all limit, handle input and brake output status are prompted by separate indicators;
Brake resistance short circuit protection
Built-in brake unit with brake resistance short-circuit protection function;
Rich voice function
Voice broadcast content is rich, common faults have a separate voice prompt, combined with the door panel display information, greatly improve the efficiency of on-site fault diagnosis;
Brake coil short circuit protection function
Real-time monitoring of the brake coil current value, abnormal situation immediately cut off the input, protect the brake coil and internal devices;
Man-machine interface function
The interface display is optimized and upgraded, using pictures instead of text description, and adding fault recording function interface;
Pre-authorization function
The built-in perpetual calendar clock can be set for three periods of device authorization time, and each of the three periods can be set independent passwords, which is convenient for users to manage the installment payment of the device.
Automatic leveling function
Reduce the work intensity of the operator driver, automatically run in place after entering the floor, and the level position is accurate (5mm).
Dedicated lock control logic
Through the release current, release frequency, release delay time and so on, the special lock control logic is realized to ensure the safe and reliable operation of the lift.
Product Parameter
Complete System Composition
