IP54 Series VFD

Categories : K-Drive , Frequency Inverter

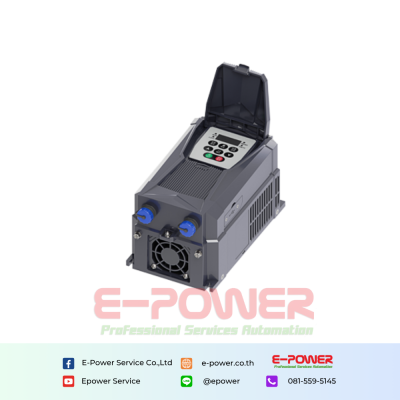

Product description

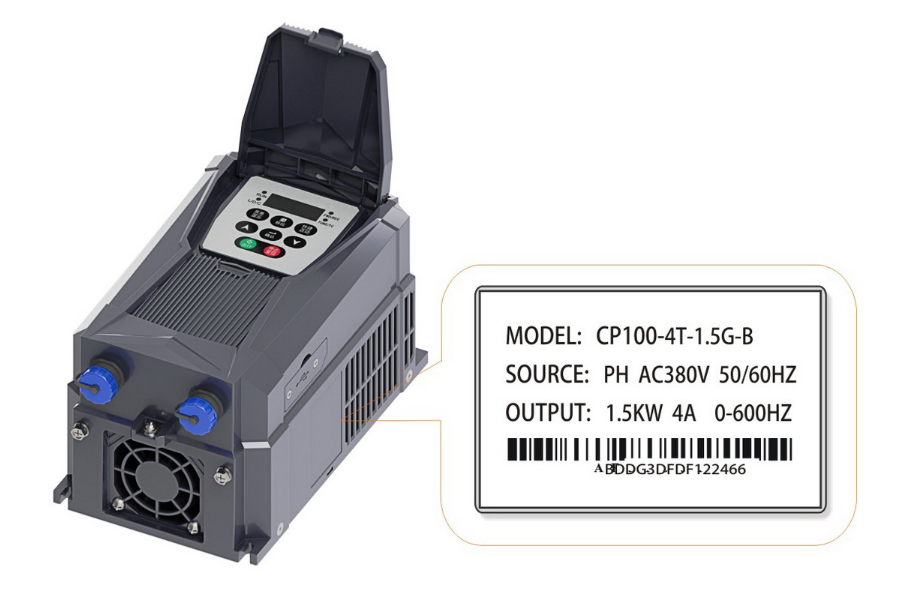

1. Position and content of nameplate

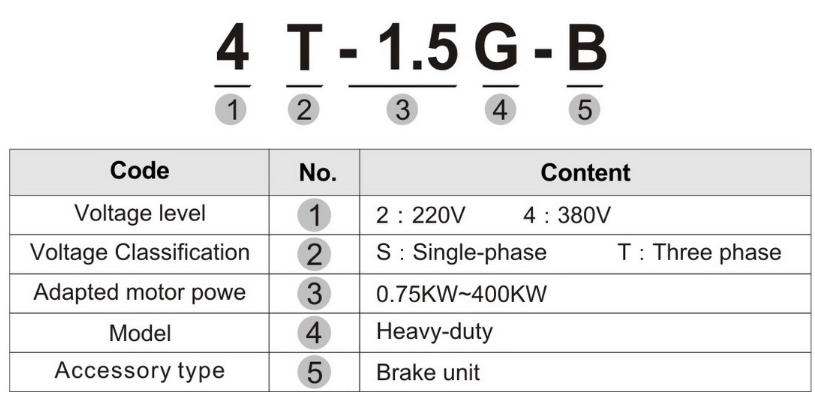

2. Nameplate model description and rated parameters

3. Specifications and models of AC drives

Motor Specifications

Models	Rated input current (A)	Rated output current(A)	Adaptive motor (KW)
Single phase 170V~250V
CP100-2S-1.5G	14	7	1.5
Three phase 300V~440V
CP100-4T-1.5G	5.0	3.8	1.5
CP100-4T-2.2G	5.8	5.1	2.2
CP100-4T-4.0G	10.5	9	3.7
CP100-4T-5.5G	14.6	13	5.5
CP100-4T-7.5G	20.5	17	7.5

4. Technical Features

Control performance	Technical Features	Description
	Slow start	After power on, the motor starts slowly to reduce the impact of the power grid and the loss of parts;
	Low voltage operation	When the operating voltage is lower than 75% of the rated voltage, it can operate normally
	Input phase failure operation	When the input line is phase failure, the two-phase power supply can still operate normally
	Output phase loss protection	When output phase loss occurs, the high protection integrated machine automatically reports error and shuts down for protection;
	Current limiting protection	When the current is abnormal due to unstable line or power supply, overload, etc., the current is automatically limited within the safe value, and the speed is reduced for operation;
	Adjustable speed	Constant speed can be set according to different needs to achieve constant flow;
	Light load protection	Automatic shutdown protection without water and light load to prevent wear and waste of parts;

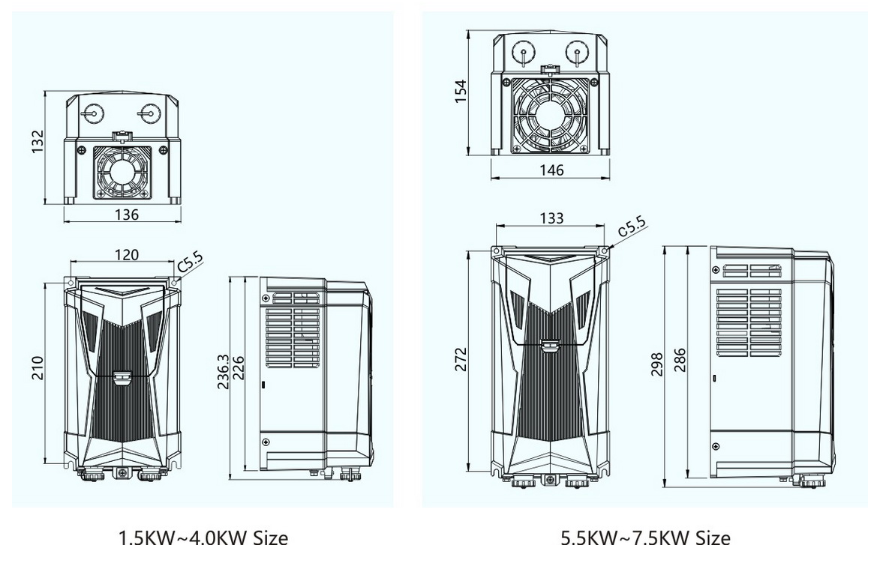

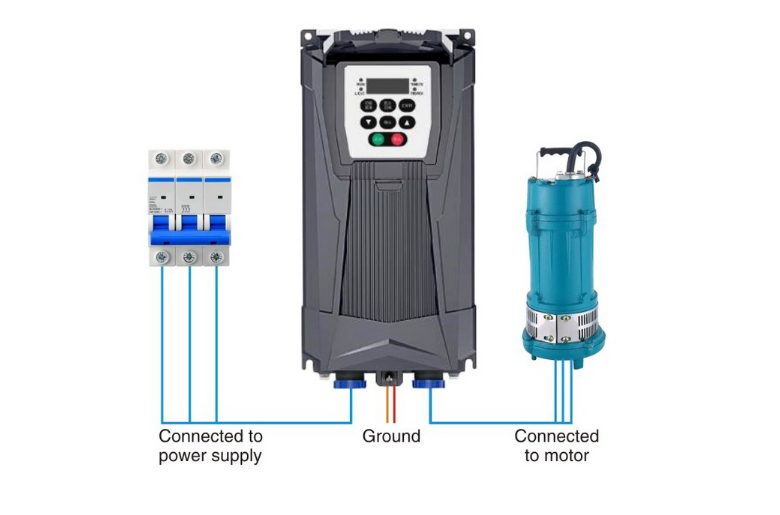

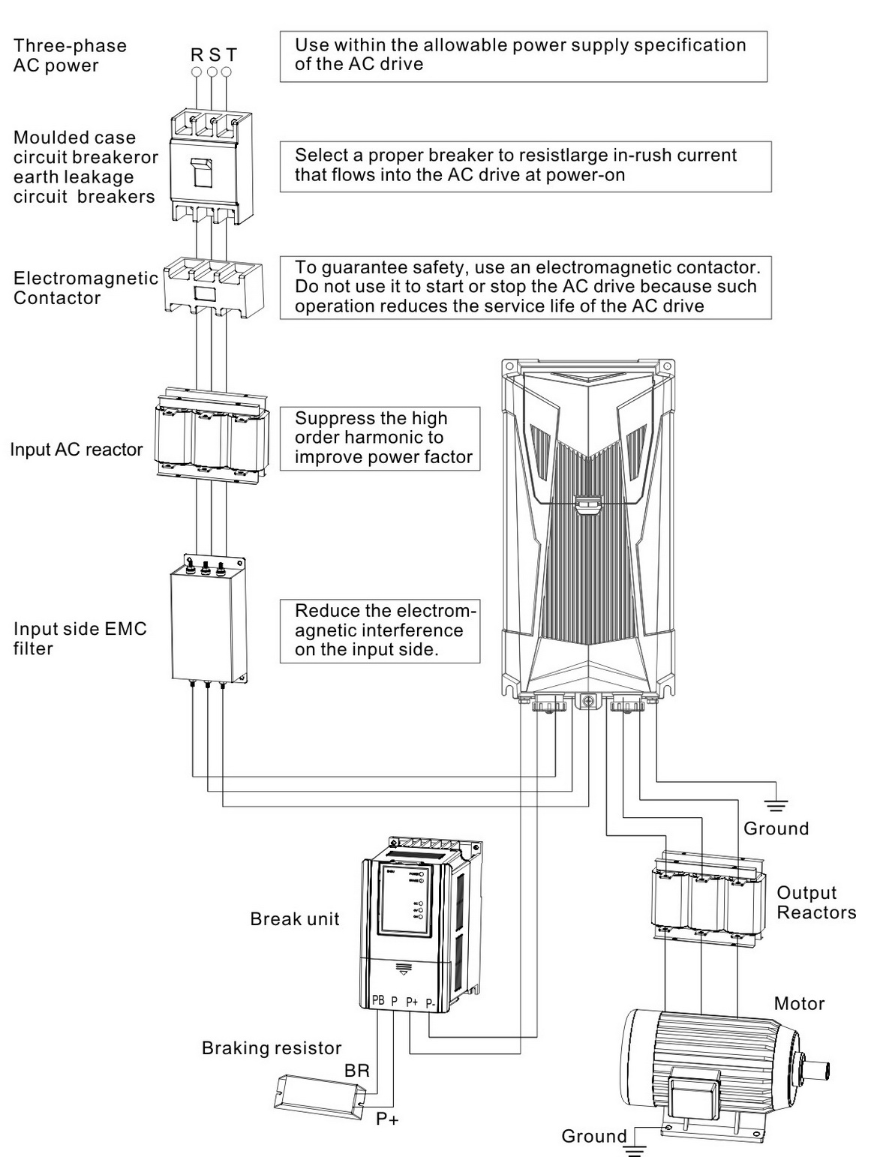

5. Product wiring diagram

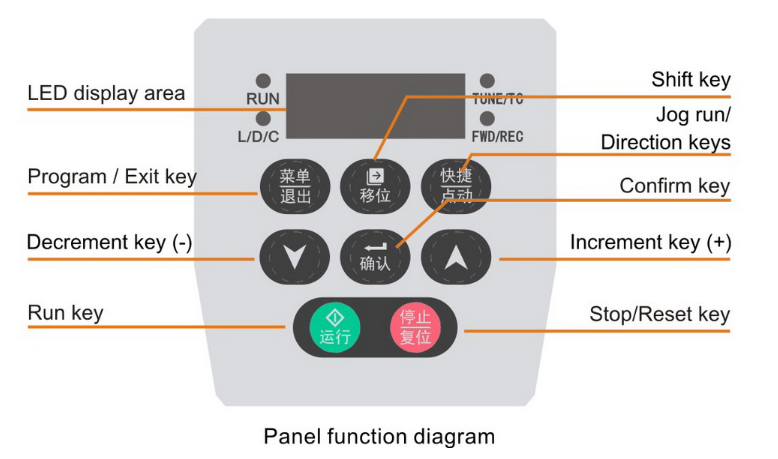

6. Keypad description

Using the operation panel, you can modify the function parameters of the inverter, monitor the working status of the inverter, and control the operation of the inverter (start, stop). Its appearance and functions are shown in the following figure.
