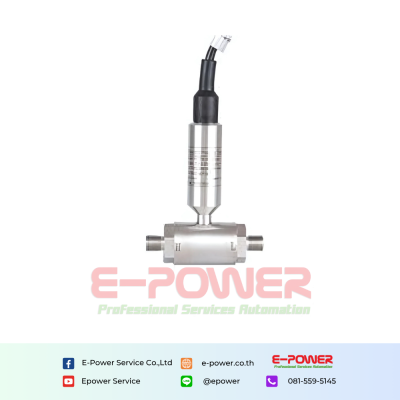

HPT700S Standard Industrial Differential Pressure Transmitter

Categories : HolyKell , Pressure Sensors

Product description

Download

HPT700S Differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 4MPa. With its digital compensation, the HPT700 DP offers excellent linearity and performance over temperature,long, reliable service life with excellent long term stability.

Application :

Process Controls
Tank Level Measurement
Filter Performance Monitoring
Corrosive Fluids and Gas Measurement Systems
Orifice Plates and Mass Flow Meters
Static Pressure Measurement and Control

Advantages

01 Broad Compensated Temperature Range
02 Durable, 1 Million Cycle Life
03 Ruggedness with Secondary Containment
04 Precision Micro-Machined Silicon Core
05 Explosion Proof and Non-Incendive Available
06 High Stability, Low Drift

Technical Data

Pressure Range	10~50KPa, 51~100KPa, 101~200KPa, 201~1000KPa
High port overload	50~500 kPa, 500~1000 KPa, 10~20 Bar, 20~40Bar
Low port overload	30~150KPa, 150~300KPa, 300~600KPa, 600~1000KPa
Max Static Pressure	50 bar, 100 bar, 150bar, 200bar
Accuracy	±0.5%F.S (Typical); ±0.25%F.S (by customized)
Stability	0.1%F.S/Year
Medium Temp Span	-40°C~85°C / -40°C~125°C(with cool device)
Temperature compensation	0°C~50°C
Zero Temp Drift	0.02%F.S/°C
Span Temp Drift	0.02%F.S/°C
Output	4-20mA, 0-5V, 0-10V, I2C, RS485...
Power Supply	7~30Vdc, 8~30Vdc, 15~30Vdc, 7-30Vdc
Electrical connection	Fixed cable and water proof IP67 (HPT700-S); Terminal Box DIN43650 (HPT700-H HPT700-G)
Pressure connect port	1/4"-18NPT Female; G1/4" Male; G1/2" Male; RG=Ø8/ Ø 10gas mouth optional (by Customized)
Response time	10ms
Pressure Type	Differential Pressure (Gauge Type)
Certificate	ExiaIICT6 and CE Certificate
Water Proof	IP65 to IP68 optional by model
