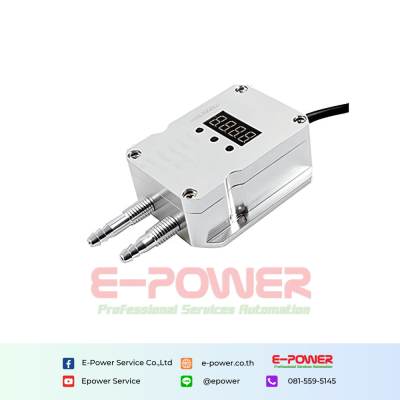

HPT702 Air Differential Pressure Transmitter

Categories : HolyKell , Pressure Sensors

Product description

Download

Low range air differential pressure transmitter provides an accurate solution available from 0-200kpa max or ±100kpa DP. Incorporating the latest silicon sensor and electronics technologies, 4-20mA transmitters are fully temperature compensated for unrivalled stability at very low pressure.

Application :

Leak detection device
Boiler
Brewing
locomotives
non-conductive non-corrosive gas
HAVC Air differential pressure

Advantages

01 The best solution for differential pressure measurement of air, flammable and explosive gas or HAVC system.
02 The automatic temperature compensation function is suitable for more severe working conditions.
03 The explosion-proof aluminum alloy shell is more suitable for measuring the differential pressure of flammable and explosive gases.
04 Differential pressure manufacturer.

Technical Data

Parameter	HPT702
Pressure Range	0-200kpa max or ±100kpa
Accuracy	0.5%F.S, 0.25%F.S(By customized) optional
Working Temp	-10°C~80°C
Temp. compensation	-10°C~80°C
Medium compatible	Dry and non-corrosive gases
Output	4-20mA, 0-5V, 0-10 V, 0.5-4.5V, RS485 Modbus RTU
Power Supply	8-30V with potentiometer; 24-30V without potentiometer; 5Vdc
IP Rating	IP65
