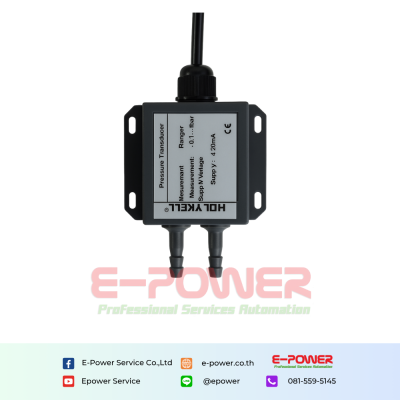

HPT710 Micro Differential Pressure Transmitter

Categories : HolyKell , Pressure Sensors

Product description

Download

HPT710 is a micro differential pressure transmitter that can accurately and stably provide differential pressure with a wide application range. It adopts advanced silicon MEMS micro-pressure chip, and temperature compensation and linear compensation, signal amplification processing. Different outputs including 4~20mA, 0.5V~4.5Vdc, I2C and RS485 are supported.

Application :

Wind pressure measurement
HVAC system and air purification equipment
Pipeline velocity test
Fan operation detection
Medical and chemical industry
Pure plant and building automation

Advantages

01 Wide measuring range
02 Explosion-proof performance supported
03 High stability with low drift
04 Linear compensation
05 Broad range of temperature compensation
06 Durable structure, >10 million load cycles

Technical Data

Measuring range	0Pa~±100Pa, 500Pa...1000Pa; 0kPa~2kPa, 10kPa...100kPa
Pressure type	Differential pressure, gauge pressure
Accuracy	±0.5%F.S, ±1.0%F.S
Signal output	4mA~20mA, 0.5V~4.5Vdc, I2C, RS485
Power supply	12V~30Vdc, 5V~30Vdc, 3.3V~5Vdc, 5V~30Vdc
Electrical connection	Direct cable outlet
Measuring medium	Non-corrosive gases
Medium temperature	-40°C~85°C
IP Rating	IP66
