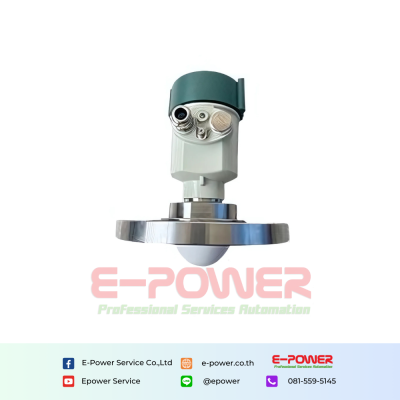

HR80G 80GHz FMCW Radar Level Transmitter For Liquids And Soilds

Product description

Download

80GHz radar level transmitter (80GHz radar) is a product developed based on FMCW technology, so it has the advantages of strong penetrating power and high frequency bandwidth (76-81GHz), and is not affected by temperature, dust or steam, it is often used for liquid, solid or powder measurement.

Application :

Various shapes of chemical tanks or mixing tanks
Incinerator
Small or large storage tank
Narrow environment or guided wave pipeline measurement
High-precision metering applications

Advantages

01 2-wire 80GHz FMCW Radar for liquids and bulk solids.
02 Not affected by temperature, dust or steam, suitable for harsh working conditions.
03 Using standard HART, RS485 and MODBUS protocols, the applicability is wider.
04 Support server software and tank meter settings, making the operation easier.
05 Free technical support, radar level sensor manufacturer.

Technical Data

Parameter	HR80G
Frequency	76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring range	0.3~60m(For solids) 0.08~30m(For liquids) 0.6m~120m (For solids and liquids)
Measurement accuracy	±1mm, ±2mm
Beam angle	3°, 6°
Dielectric constant range	2
Power	18~28Vdc,220VAC
Communication	MODBUS, HART optional
Signal output	4 ~ 20mA or RS-485
Field operation/ programming	128 × 64 dot matrix display / 4 buttons,PC software
Enclosure	Aluminum alloy, stainless steel
Antenna type	Lens antenna/anti-corrosive antenna / flange isolated by quartz
Process temperature/Humidity	-40~85/95%RH
Process pressure	-0.1~1.6MPa
Product Size	Ø100*270mm
Cable entry	M20*1.5
Recommended cables	AWG18 or 0.75mm²
Protection class	IP67
Installation method	Thread or flange
Weight	2.480Kg/2.995Kg
