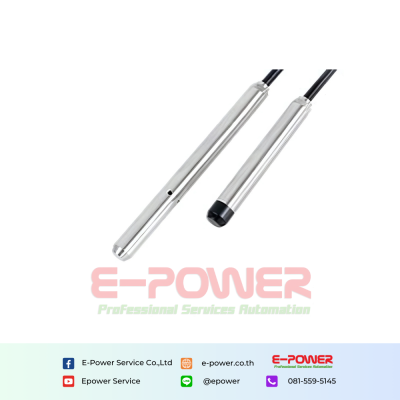

HPT607-E Smaller Diameter Submersible Borehole Level Sensor

Product description

Download

This submersible borehole level sensor is a perfect device for groundwater, borehole and well water level measurements. It features a small diameter Ø16 housing and unique filtration designs.

Application :

Deep wells
Borehole
Groundwater level monitoring
Drilling platform
Surface water monitoring
Control of lift and pumping station
Level measurement in confined space

Advantages

01 A Ø16mm only probe for smaller wells or boreholes
02 Two unique filtration designs for different ranges
03 Automatic temperature compensation
04 Lightning protection, shock and friction resistant
05 Sensor compatible with most monitoring equipment
06 Fully sealed IP68 structure for long immersion in water

Technical Data

Parameter	HPT607-E
Pressure Range	0-2 Bar.....20 Bar / 0-20m...200m HO Optional 0-0.5 Bar.....2Bar / 0-5m...20m HO Optional (by customized)
Accuracy	±0.5%F.S@25 degree C (Typical)
Long Stability	0.15%F.S±0.05%
Working Temp	-40-80(non-corrosive medium)
Temperature Compensation	0~50 (Full temp span 1%F.S. accuracy)
Medium compatible	Compatible with 316L Stainless Steel
Output	4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU
Power Supply	10-30Vdc,5Vdc±5%,3.5-36Vdc
Zero Temp. Drift	0.2%FS/(100kPa); 0.5%FS/(>100kPa)
FS Temp. Drift	0.02%FS/(100kPa); 0.05%FS/(>100kPa)
Electronic connection	Fixed cable and water proof IP68
Response time	10ms
