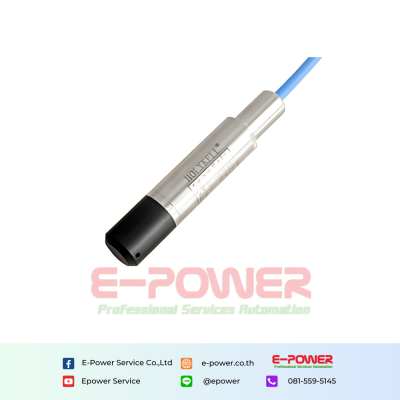

HPT604-BL Submersible Diesel／Gasoline Level Transmitter

Product description

Download

This submersible level sensor adopts SUS304 stainless steel housing and a filter cap(two kinds of filter caps optional), and can be put in water/oil/fuel/chemical tanks or reservoir directly for liquid level measurement. It features high corrosion-resistant and can be used in explosive environment.

Application :

Water tank level measurement and control
Fuel tank level measurement(diesel, gasoline, kerosene...)
Refinery
Bio-Fuels
Pumping stations

Advantages

01 Hydrostatic sensor for measuring level of small diesel tank
02 High accuracy up to 0.25%F.S
03 Adopting diffusion silicon sensor
04 High quality PUR/FEP cable with strong water and fuel resistance
05 Digital circuit board of lightning and surge protection for use in harsh environment

Technical Data

Pressure Range	0-0.1Bar.....2 bar / 0-1m....20m fuel level Optional 80m max for SDI-12 signal
Accuracy	Better than ±0.25%F.S @25 degree C
Long Stability	±0.1% of span/year
Working Temp	-30-80°C(non-corrosive medium)
Temperature Compensation	-40°C~80°C
Medium compatible	Compatible with 304 Stainless Steel
Output signal	4-20mA,1-5V; 0-5V,0-10 V,Dual 4-20mA,SDI-12,RS485 Modbus...
Power Supply	7-30Vdc,8-30Vdc,13-30Vdc,12-30Vdc,12Vdc,3.5-36Vdc...
Electronic connection	Fixed cable and water proof IP68
