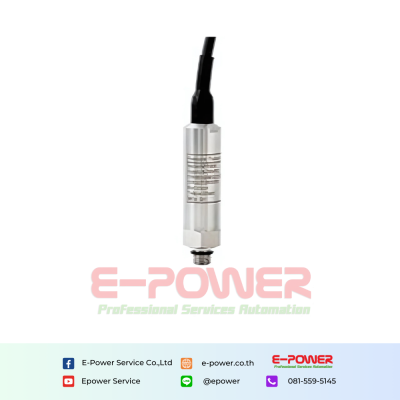

HPT603 Submersible Liquid Level Transducer

Product description

Download

HPT603 submersible liquid level transducer is mainly used for liquid depth measurement. It supports different kinds of signal outputs and electronic connections.

Application :

Vessel and Storage Monitor System
Control of Lift and Pumping Stations
Level Measurement in Oil Tanks
Monitoring of Gasoline & Diesel Fuel Tanks

Advantages

01 Simple installation
02 Fully sealed 316L stainless steel housing and 316L flat film design
03 Max 200m measuring range avaliable
04 IP68 full sealed waterproof design
05 High accuracy GE pressure core with 0.5%FS, 0.25%F.S by customized

Technical Data

Product Specifications

Range	0-0.5 M...200 M H2O optional
Output	4-20mA,1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU
Power supply	7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,3.5-36Vdc
Pressure port	G1/2"male, M201.5 male, 1/4"NPT male; M101 male,flange mounting, or by customized
Accuracy	0.5%F.S standard, 0.25%F.S by customized
Working temperature	-40~80(non-corrosive medium)
Temp Compensation	0~50
Zero Temp. Drift	0.2FS/ (100kPa) ; 0.1%FS/ (>100kPa)
FS Temp. Drift	0.02%FS/ (100kPa) ; 0.01%FS/ (>100kPa)
IP Rating	IP68
Response time	10 ms
Cable optional	PE Cable（Water Proof）; PUR Cable（Oil Proof）; FEP Cable（Anti-Corrosive）
Certificate	CE,Exiall CT6 Ga ,ATEX,RoHS
