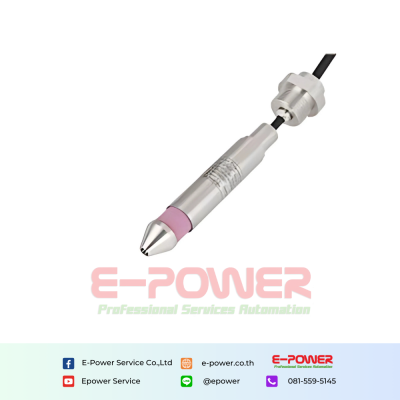

HPT606 Submersible Sludge Level Transmitter

Product description

Download

The submersible sludge level transmitter is specially used to measure the sludge level in river or lake water.It adopts ceramic filter design, which can filter gravel and water weeds in the medium.

Application :

River water level sensor
Level measurement in rivers or lakes
Flood monitoring/warning
Pond water level monitoring

Advantages

01 Adopts a removable ceramic filter nose without cleaning difficulty
02 Running longer by reducing downtime and maintenance costs
03 Low-power output signals
04 lightning surge reverse protection
05 Imported chip and military grade digital PCB board

Technical Data

Range	0~1 M...200 M H2O optional 80m max for SDI-12 signal
Output	4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
Power supply	7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,3.5-36Vdc
IP Rating	IP68
Accuracy	±0.5%F.S (Typical); ±0.25%F.S; ±0.1%F.S optional
Working temperature	-40-80(non-corrosive medium)
Temp Compensation	0~50
Zero Temp. Drift	0.2%FS/ (100kPa) ; 0.1%FS/ (>100kPa)
FS Temp. Drift	0.02%FS/ (100kPa) ; 0.01%FS/ (>100kPa)
Electronic connection	Fixed cable
Response time	10 ms
Certificate	CE,RoHS
Application	Flood,Lake ,River,Pond,Dams etc
